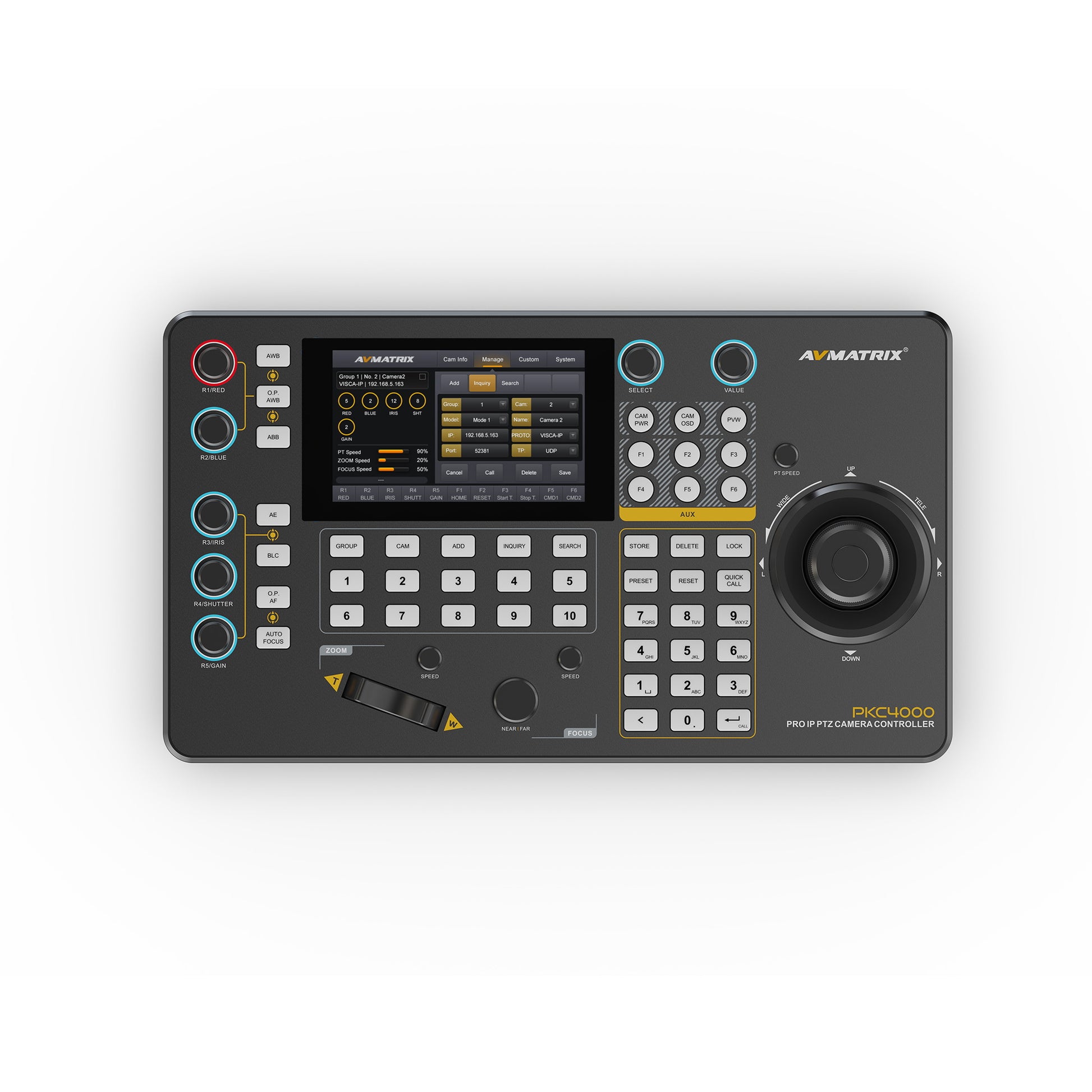

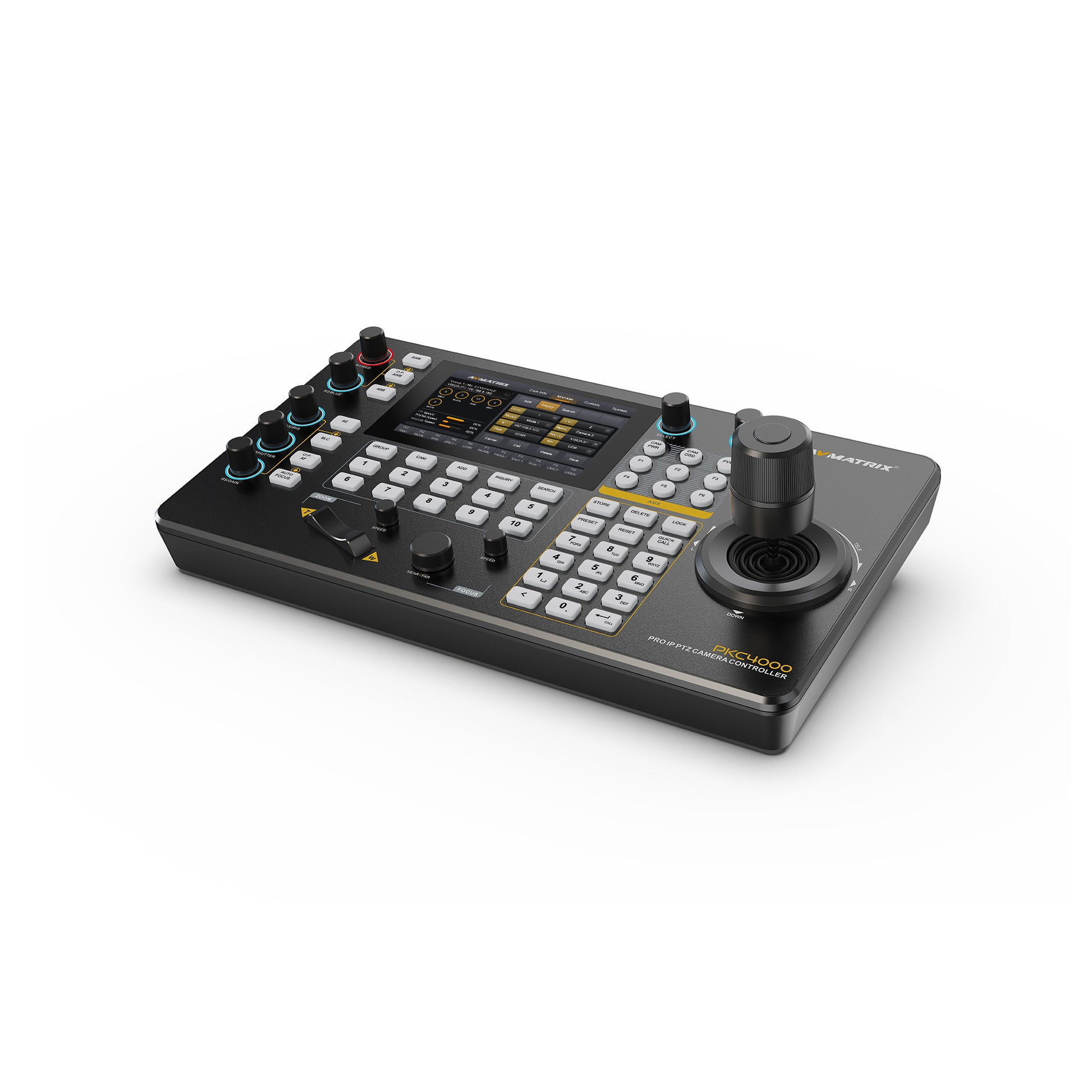

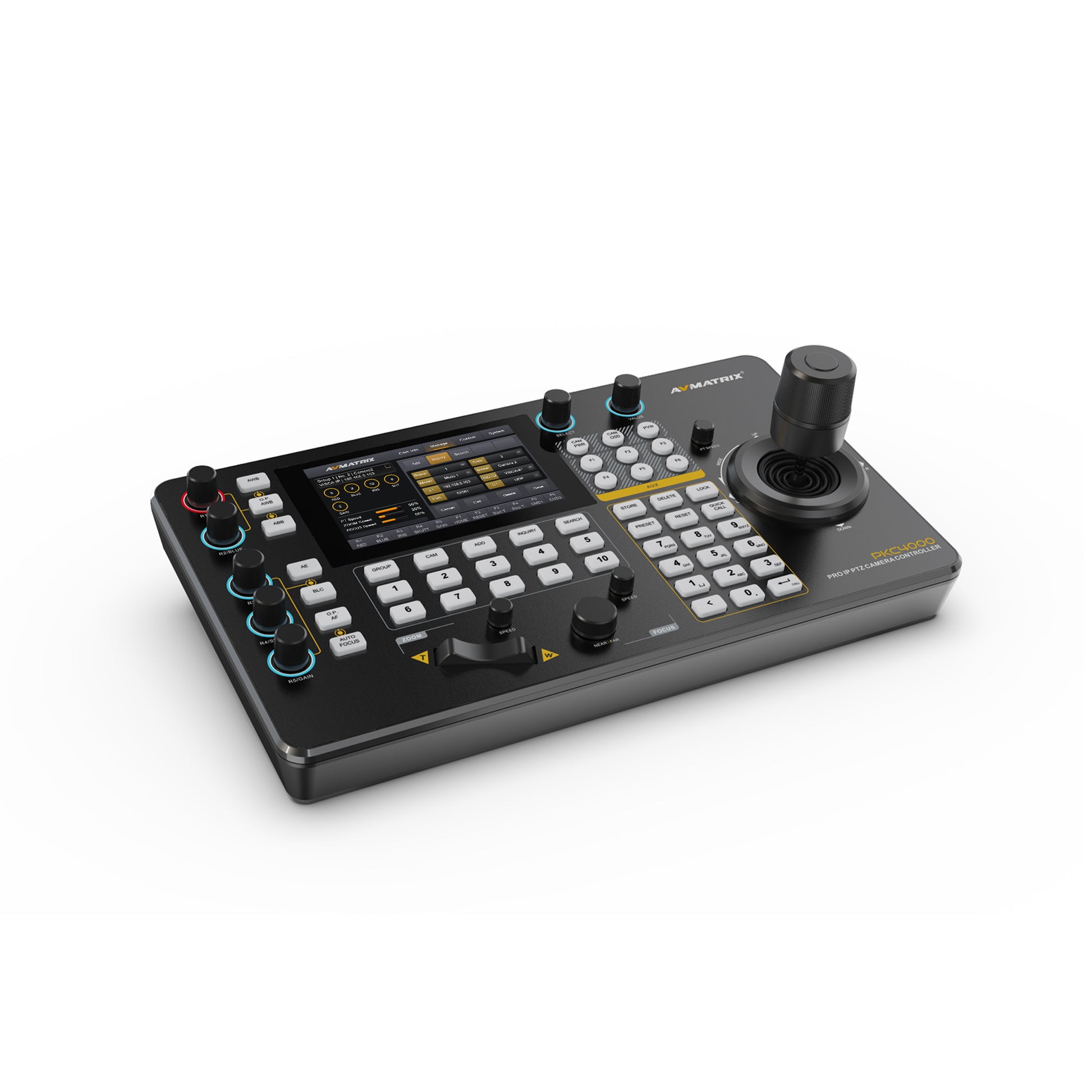

5-inch touch screen with joystick and knob for PTZ, iris, shutter, gain, AE, WB ONVIF, VISCA-IP, NDI®|HX2, PELCO-D, PELCO-P. 10 camera groups (10 cameras each), 100 addresses, 255 presets 1x IP(RJ45), 1x RS232, 4x RS-485/RS-422, 1x TALLY, USB 2.0 (for upgrade) 1000M LAN with PoE/PoE+ (IEEE802.3af/at). Serial baud 2400 to 115200 bps PoE+/DC 7 to 24V, <8 W. -20°C to 60°C operating, -20°C to 70°C storage 340 x 195 x 49.5 mm (without joystick), 340 x 195 x 110.2 mm (with joystick), 1730 g
Connections
Interfaces

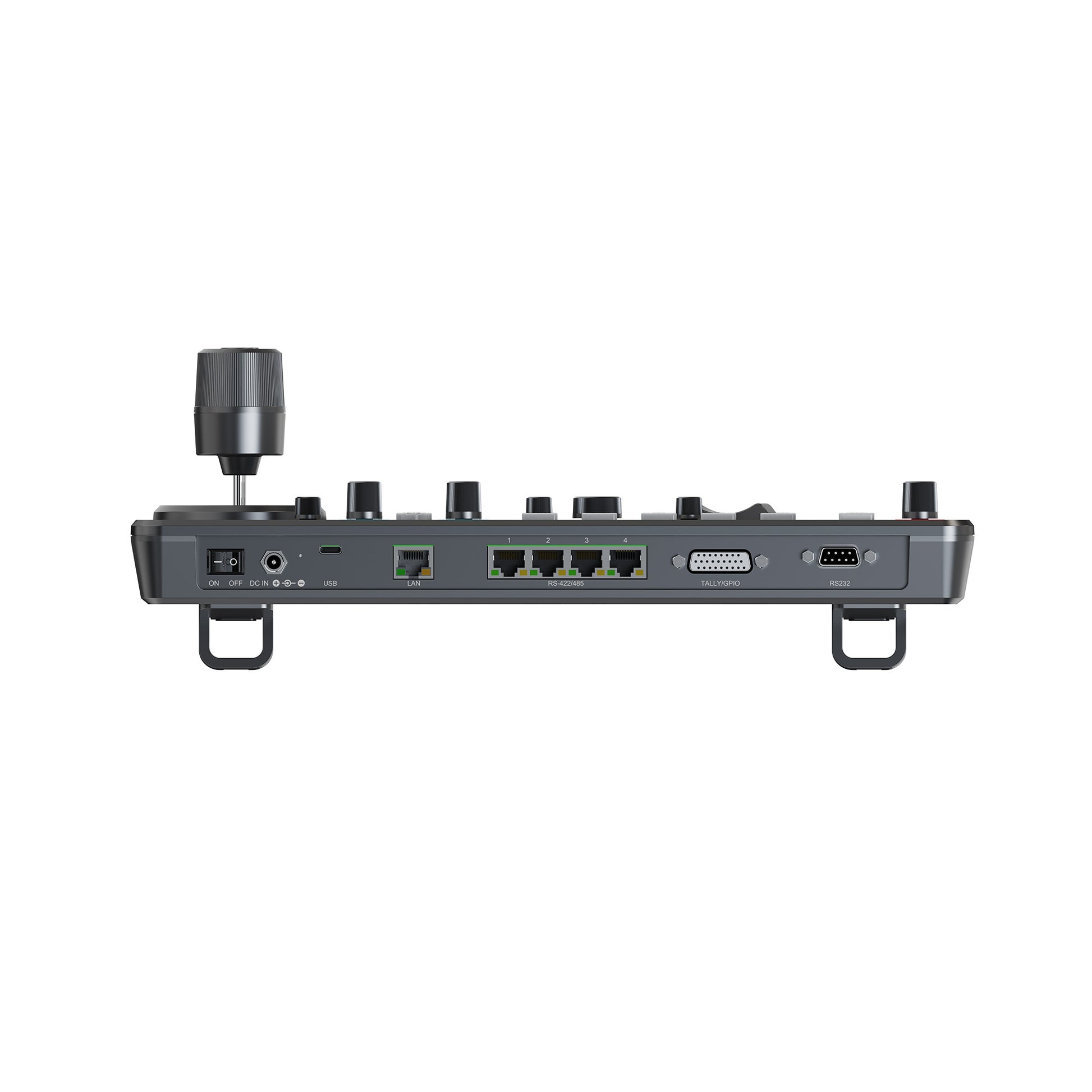

1x IP (RJ45), 1x RS232, 4x RS-485/RS-422, 1x TALLY, 1x USB 2.0 (for upgrade)
IP protocol
ONVIF, VISCA-IP, NDI®|HX (optional), NDI®|HX2 (optional)
Video inputs
IP (ONVIF, VISCA-IP), NDI®|HX2 (optional)
Serial protocol
PELCO-D, PELCO-P, VISCA
Serial baud rate
2400, 4800, 9600, 19200, 38400, 115200 bps
LAN port
1x 1000M (PoE/PoE+: IEEE802.3af/at)
Power
Power input
PoE+/DC 7 to 24V
Power consumption
PoE+: <8 W, DC: <8 W
PoE
PoE+ IEEE 802.3at
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-20°C to 70°C
Mechanical
Dimensions
340 x 195 x 49.5 mm (without joystick), 340 x 195 x 110.2 mm (with joystick)
Weight
1730 g
Accessories
Included
12V 2A Power Adapter, Tally Connector
User Interfaces
Touch screen
Yes
Knob
Iris, shutter speed, gain, auto exposure, white balance
Joystick
Pan, Tilt, Zoom
Camera group
10 groups, 10 cameras per group
Camera address
Up to 100
Camera preset
Up to 255
