Lilliput PVM270S · 27 inch 3G-SDI production video monitor

Name: PVM270S
Brand: Lilliput
SKU: PVM270S
Price: 659.00 GBP
Availability: InStock

27 inch Full HD production monitor with multiview and PGM output. 1000 cd/m², 2x 3G-SDI, 3x HDMI 2.0, HDR, 3D LUT, PVW/PGM switching with PGM/LUT outputs, and LAN/GPI remote control for broadcast and live production.

1 6

£659.00 exc VAT £790.80inc VAT

Key Attributes

Display resolution 1920 x 1080
Aspect ratio 16:9
Contrast 1000:1
Brightness 1000 cd/m²
Screen size 27 inch

Optional extras

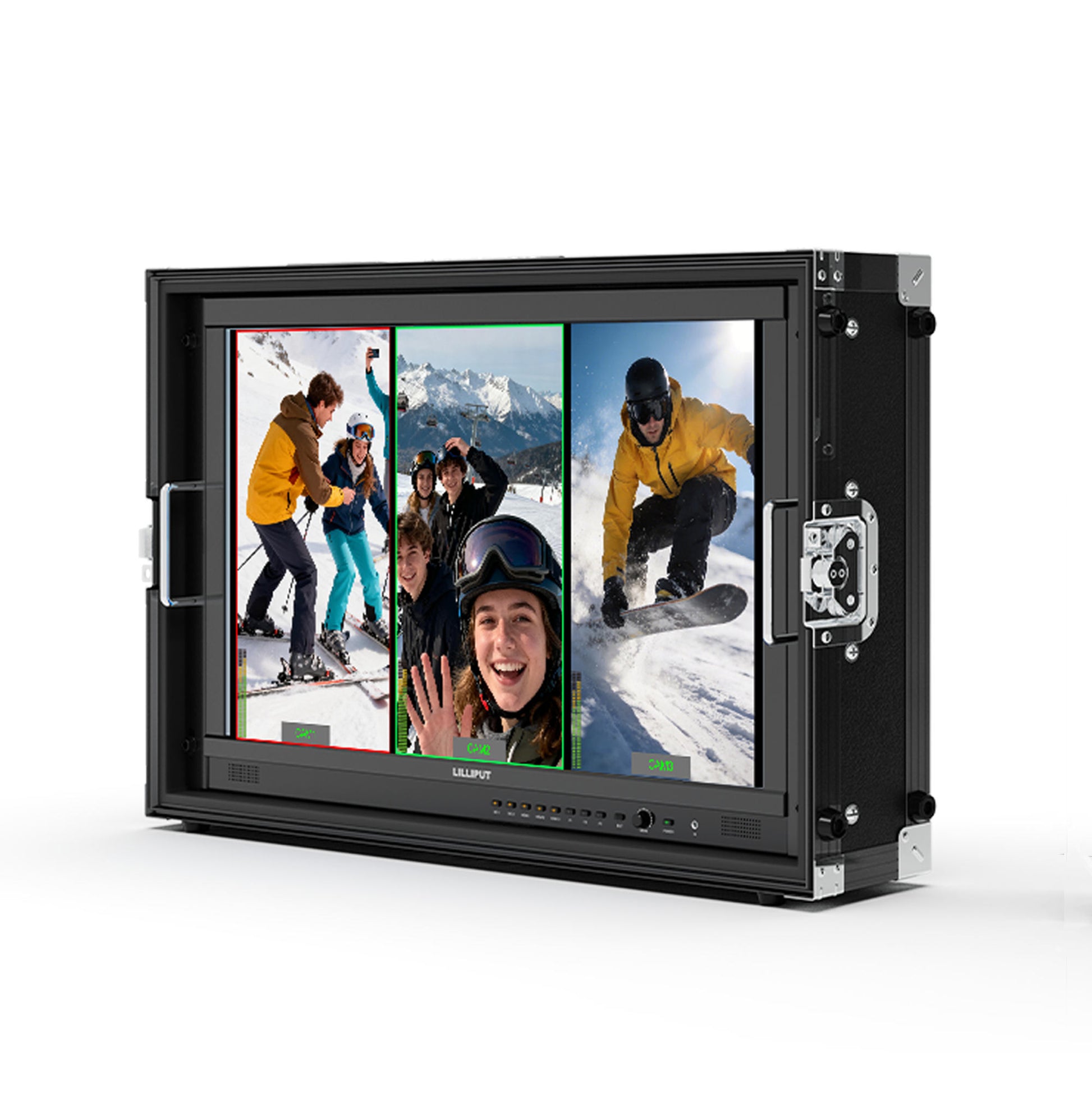

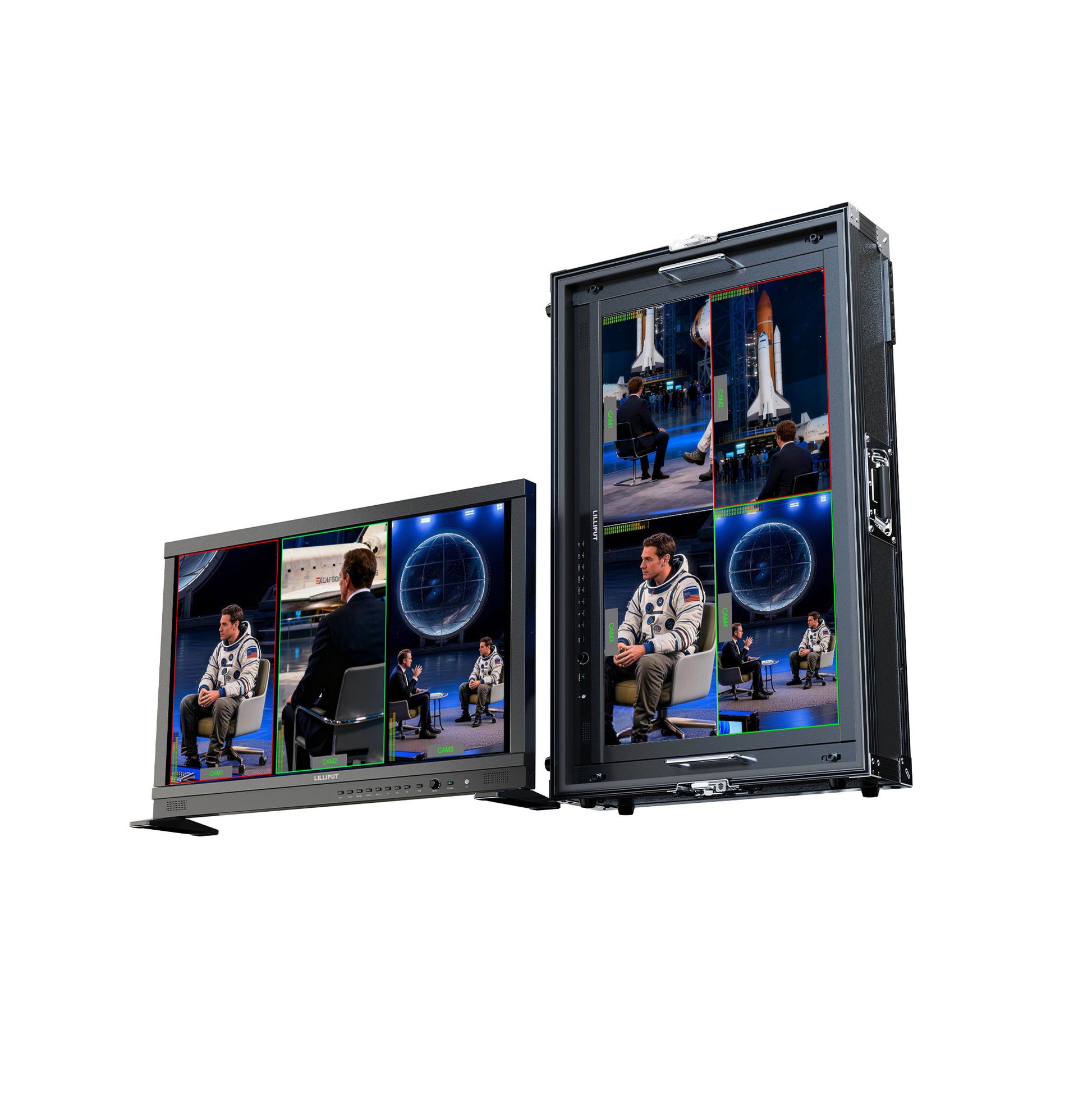

Carry case & sunshade (£200.00 exc VAT) Protective carry case with sunshade for the PVM270S.Monitor not included and shown for illustration purposes only. See more…

View full details

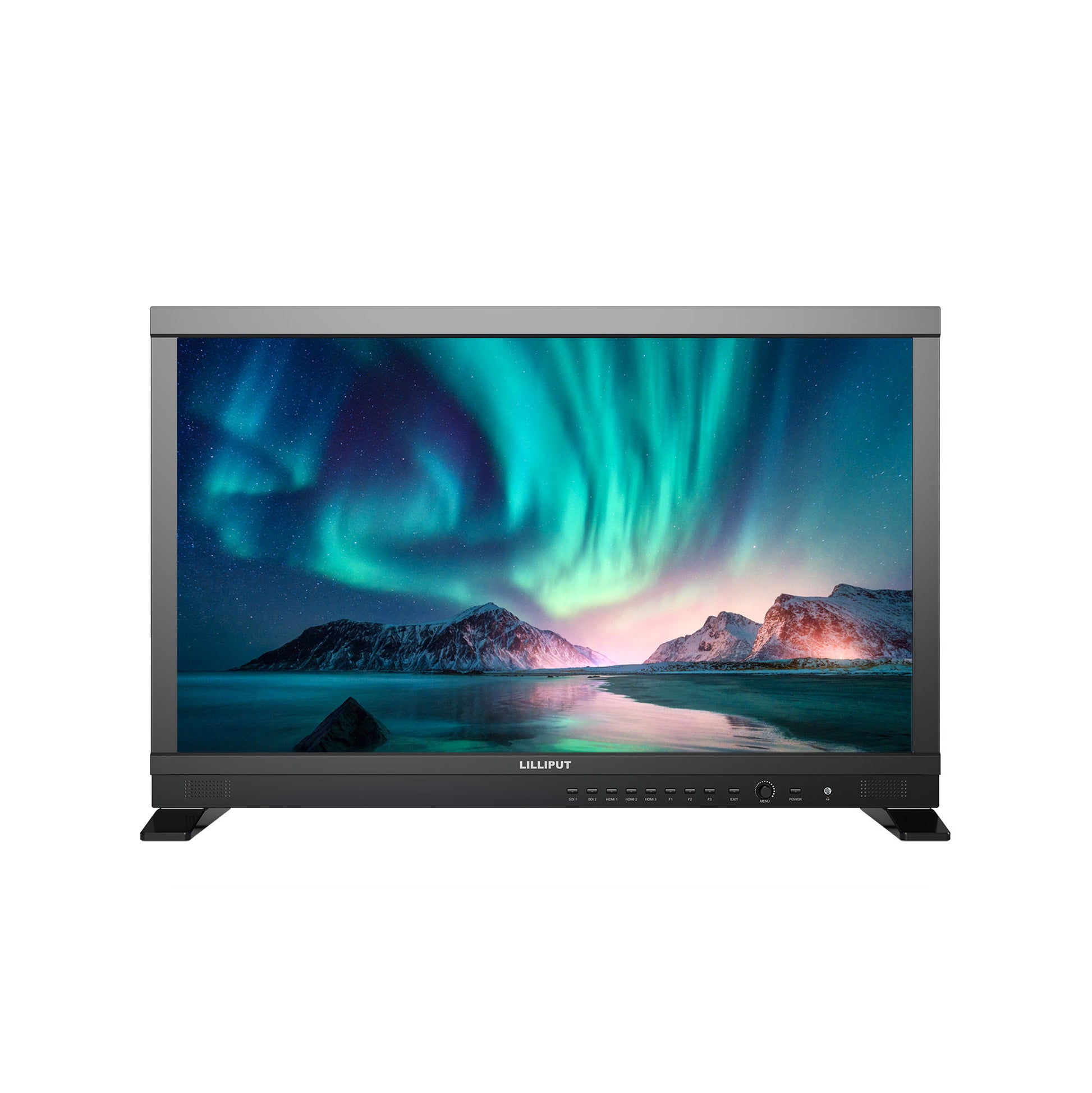

27 inch 1920 x 1080 display, 1000 cd/m², 1000:1 contrast, 178°/178° viewing angle
5 video inputs: 2x 3G-SDI and 3x HDMI 2.0; multiview layouts including full screen, vertical, dual, triple, and quad

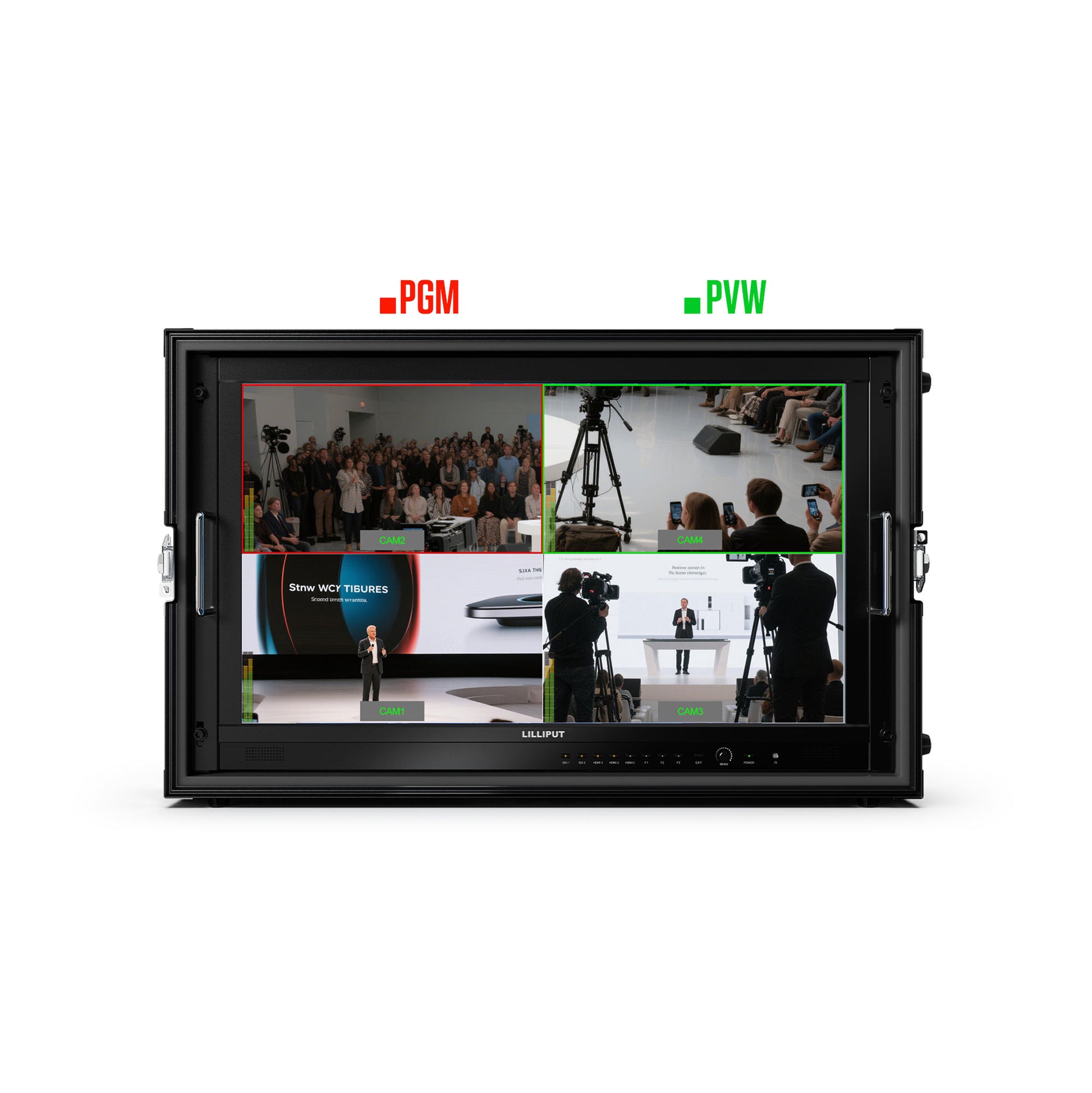

PVW/PGM workflow with configurable sources; PGM Cut shortcut; PGM and 3D LUT on 3G-SDI PGM/LUT OUT and shared HDMI OUT
HDR: ST2084 300/1000/10000, HLG; 3D LUT (.cube); log formats SLog2/SLog3, CLog, NLog, ArriLog, JLog, user-defined
HDMI 2.0 ↔ 3G-SDI (bidirectional); up to 1080p 24/25/30/50/60 on PGM/LUT HDMI OUT and SDI PGM/LUT OUT; excludes SDI loop-out
Scopes and camera assist: waveform, histogram, peaking, false colour, exposure; audio level meter for multiview
Remote control: LAN (RJ45); GPI (8-pin RJ45); USB for LUT load and firmware updates
DC 10 to 24V operation (15V DC adapter with 4-pin XLR included); V-mount or Anton Bauer plate included; 2x built-in speakers; VESA mount plate and base stand included

Display

Screen size	27 inch
Aspect ratio	16:9
Native resolution	1920 x 1080
Panel type	LCD
Brightness	1000 cd/m²
Contrast	1000:1
Viewing angle	178°/178° (H/V)
HDR	ST2084 300/1000/10000, HLG
Supported log formats	SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
LUT support	3D-LUT (.cube format)
Colour space — Rec.709	100%
Colour temperature	6500K, 7500K, 9300K, User

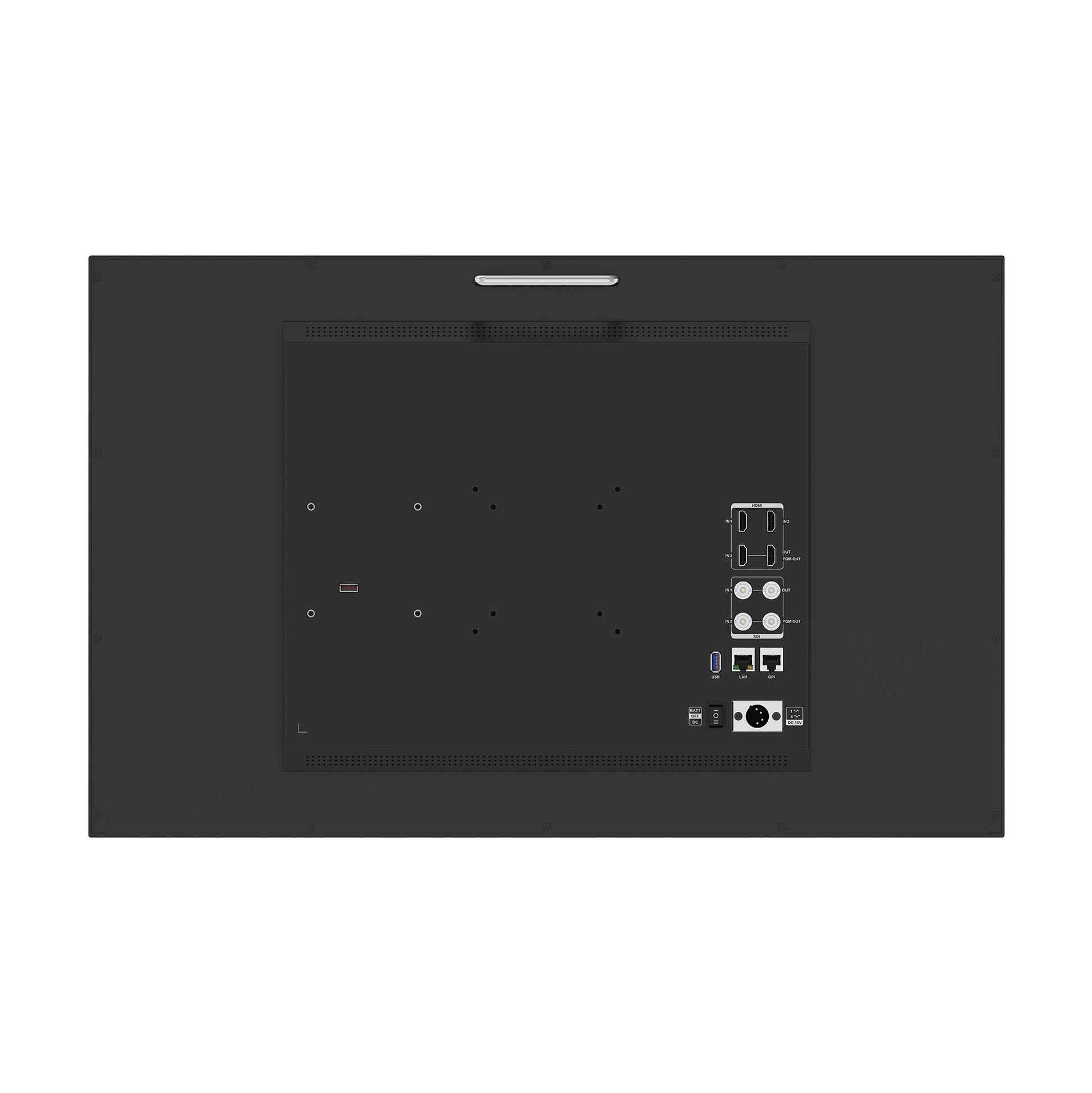

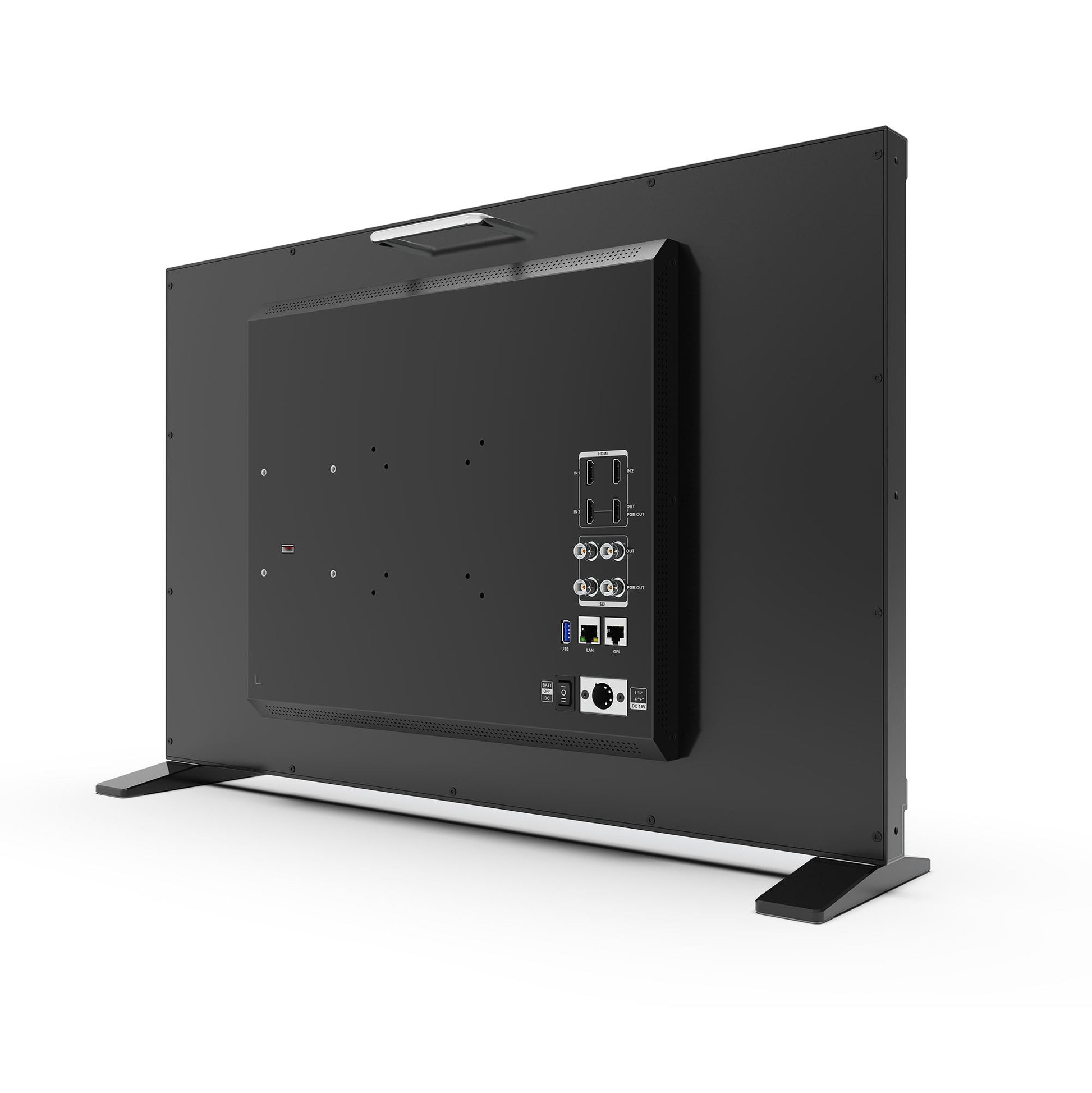

Connections

Video inputs	2x 3G-SDI, 3x HDMI 2.0
Video outputs	1x 3G-SDI (loop out), 1x 3G-SDI (PGM/LUT out), 1x HDMI 2.0 (loop / PGM / LUT out)
Program output	PGM or LUT on shared 3G-SDI PGM/LUT OUT and HDMI OUT (1080p 24/25/30/50/60)
USB	LUT load and firmware update
Audio	3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers

Video Standards

3G-SDI	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
PGM/LUT Out	1080p 24/25/30/50/60

Scopes

Video analysis	Waveform, Histogram, Peaking, False colour, Exposure, Check field, Freeze
Audio analysis	Level meter

Power

Input voltage	DC 10 to 24V
Power consumption	≤58 W (10V)
Compatible batteries	V-Lock or Anton Bauer mount
Input voltage (battery)	14.8V nominal
Power connector	4-pin XLR (supplied 15V DC adapter)

Environmental

Operating temperature	0°C to 50°C
Storage temperature	-20°C to 60°C

Mechanical

Dimensions	644 x 409.1 x 55.3 mm
Weight	8.8 kg

Mounting

VESA mount	75 x 75 mm, 100 x 100 mm (mount plate included)
Base brackets	Base stand included

Operational Features

Multi Viewer	Picture-by-Picture, PVW/PGM, Three-Way Split, Quad-View
Cross conversion	HDMI 2.0 ↔ 3G-SDI (bidirectional); up to 1080p 24/25/30/50/60 on PGM/LUT HDMI OUT and SDI PGM/LUT OUT; excludes SDI loop-out
Markers — Aspect markers	16:9, 1.85:1, 2.35:1, 4:3, 3:2, 9:16, 1.33X, 1.5X, 1.6X, 1.7X, 1.8X, 2.0X, 2.0X MAG
Markers — Safety marker	80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker	On/Off
UMD	User-defined text; per-source colour
Function buttons	F1, F2, F3 user-definable
Remote control	LAN (RJ45), GPI (8-pin RJ45)
Selectable colour spaces	Native, SMPTE-C, Rec.709, EBU

Accessories

Included	15V DC power adapter (4-pin XLR), Base stand, V-mount or Anton Bauer battery plate, VESA mount plate, User manual
Optional	Carry case & Sunshade
