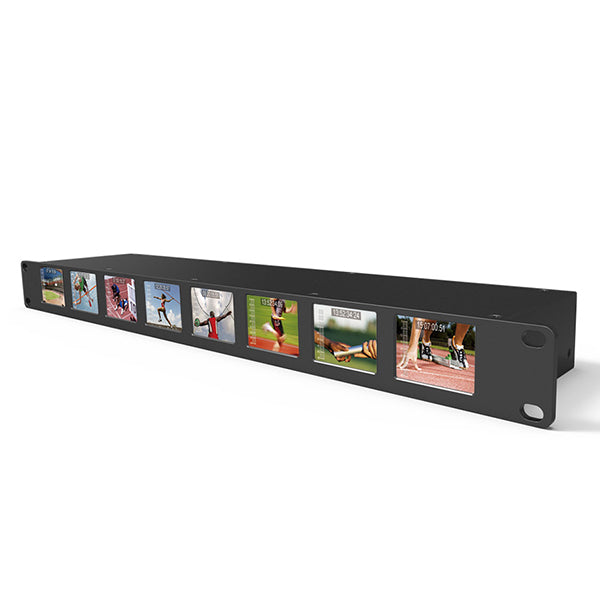

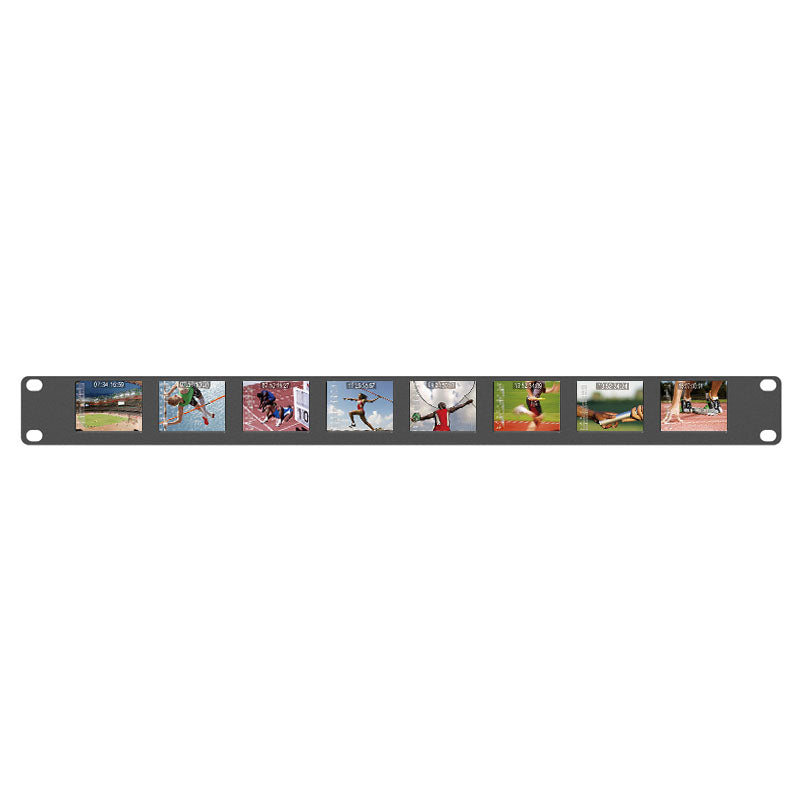

8x 2 inch 640 x 240 displays, 250 cd/m², 300:1 contrast 8x 3G-SDI inputs and loop outputs, monitor 8 sources 1U rack height (44.45 mm), 19 inch standard rack mounting RS422 remote control; PC software for brightness, contrast, time code, level meter, UMD 3G-SDI 12ch 48kHz 24-bit audio; DIP switch for time code and level meter
Display
Screen size
2 inch
Aspect ratio
4:3
Native resolution
640 x 240
Brightness
250 cd/m²
Contrast
300:1
Viewing angle
80°/70° (H/V)
Panels
8x

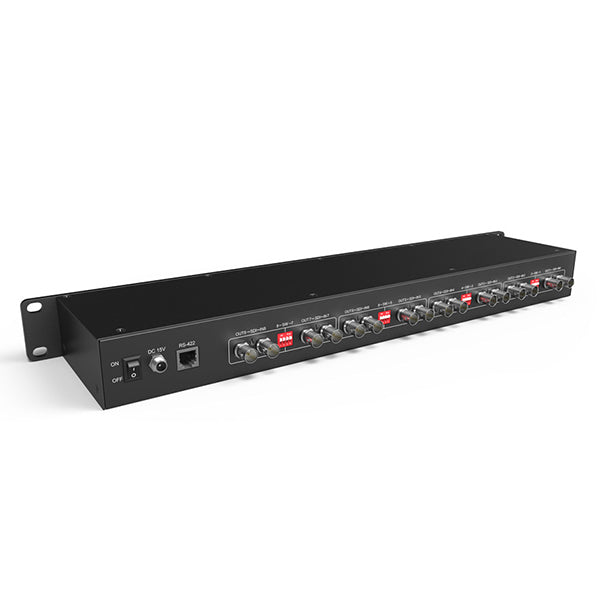

Connections
Video inputs
8x 3G-SDI
Video outputs
8x 3G-SDI
Audio
3G-SDI 12ch 48kHz 24-bit
Video Standards
3G-SDI
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Power
Input voltage
DC 12 to 24V
Power consumption
≤23 W
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Mechanical
Dimensions
482.5 x 105 x 44 mm
Weight
1.555 kg
Rack height
1U
Mounting
Rack mount
1U rack height (44.45 mm), 19 inch standard rack mounting
Operational Features
Remote control
RS422 In
PC software
Brightness, contrast, time code switch, level meter, UMD (32 characters)
Accessories
Included
15V DC Adapter, CD (software), User Manual
