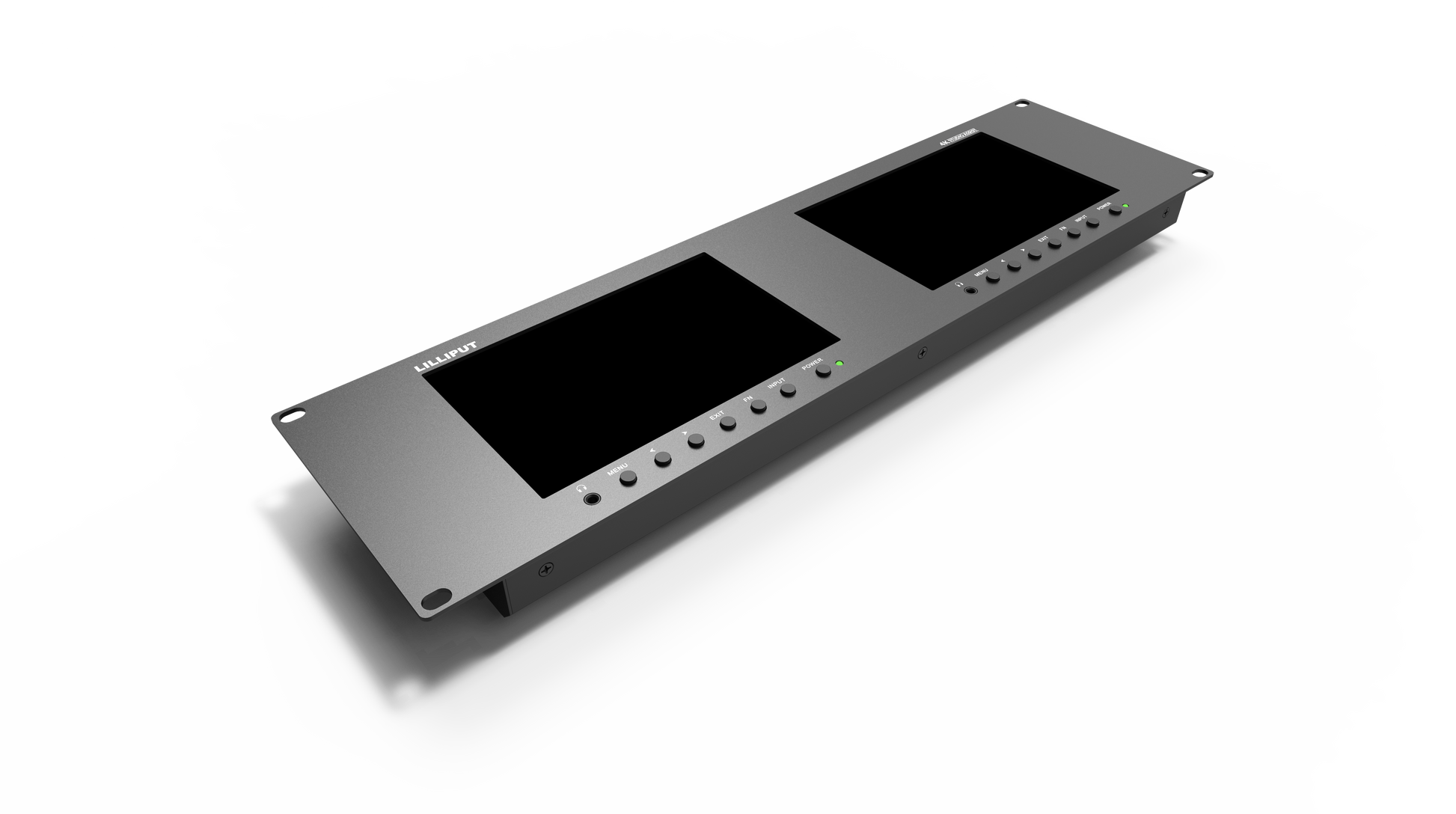

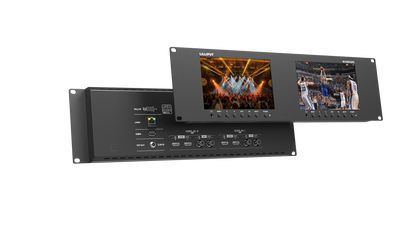

Dual 7 inch 3U rack-mountable broadcast monitor. 2x 3G-SDI, 2x HDMI 2.0, up to 4K 60Hz. 3D LUT, log format support (SLog2/3, ArriLog, CLog, JLog, VLog, NLog), TALLY connector for control room applications.

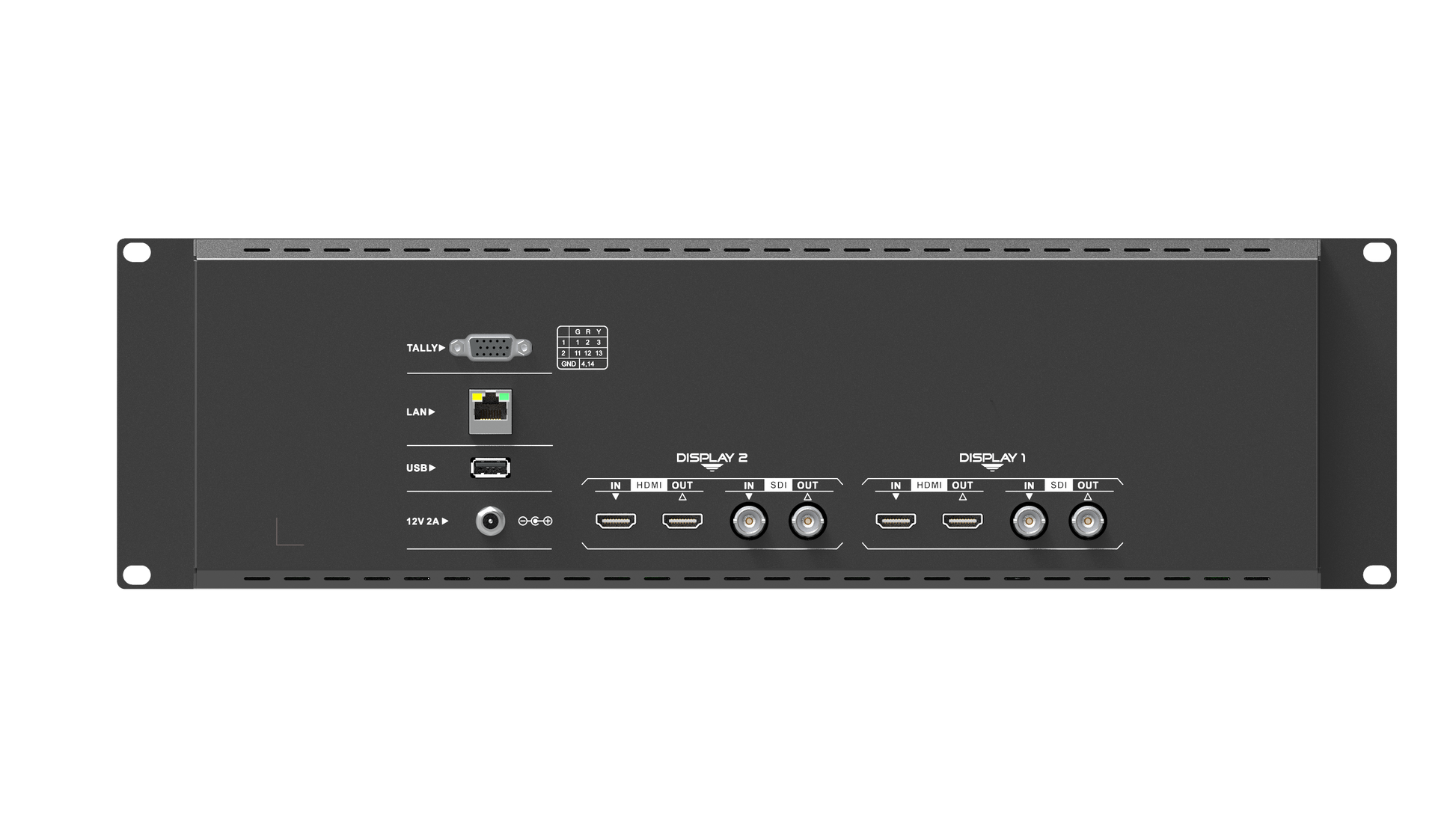

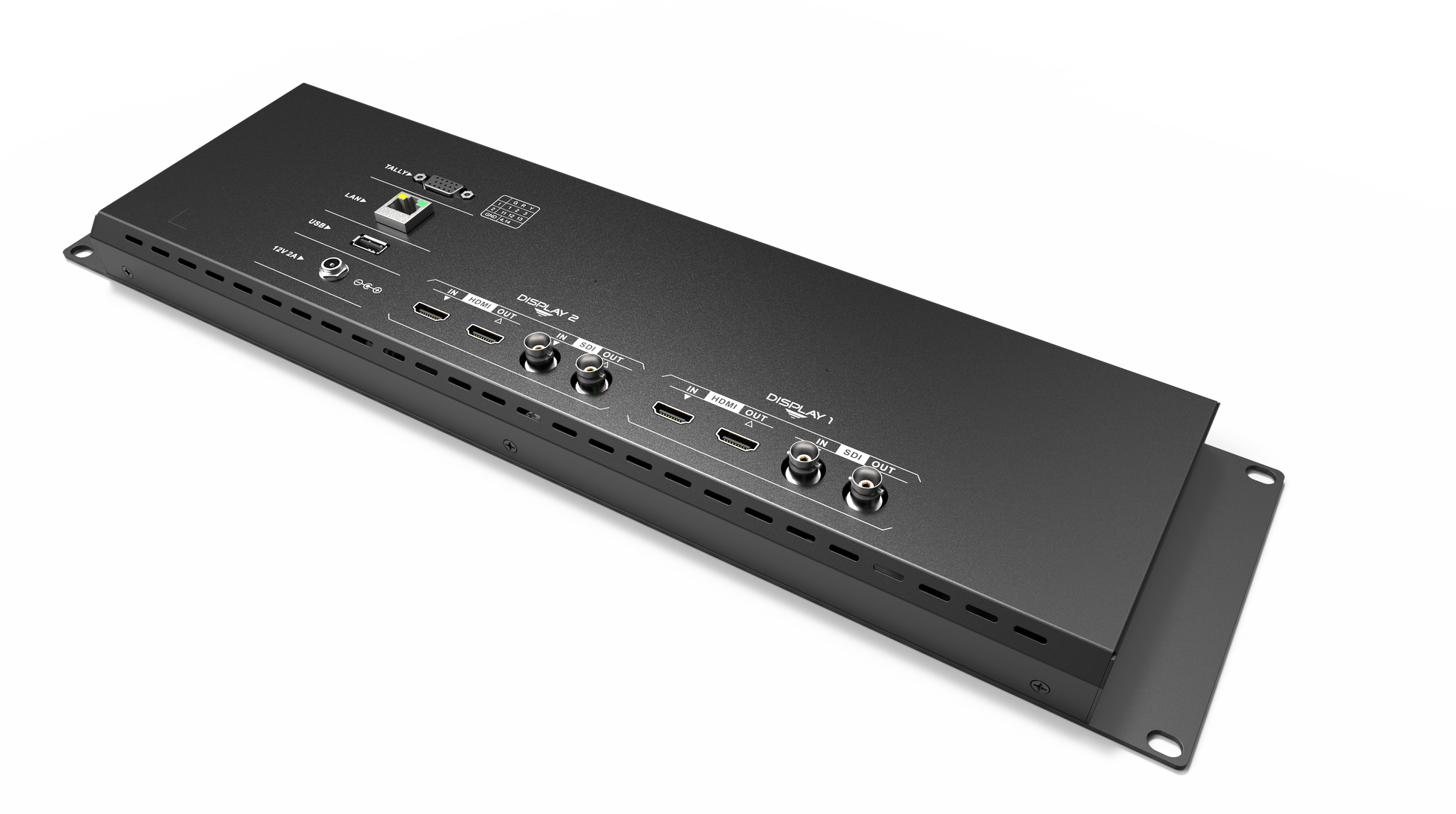

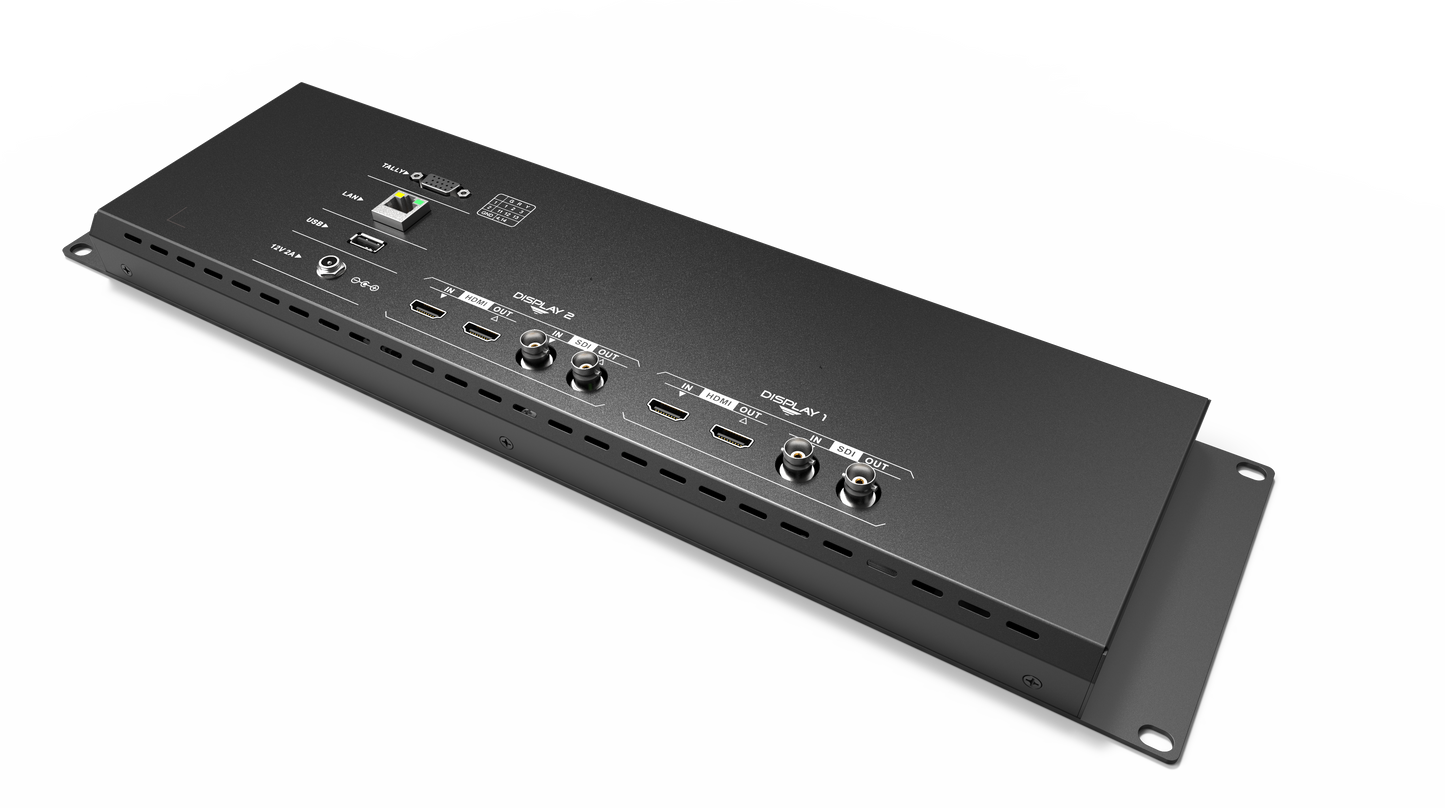

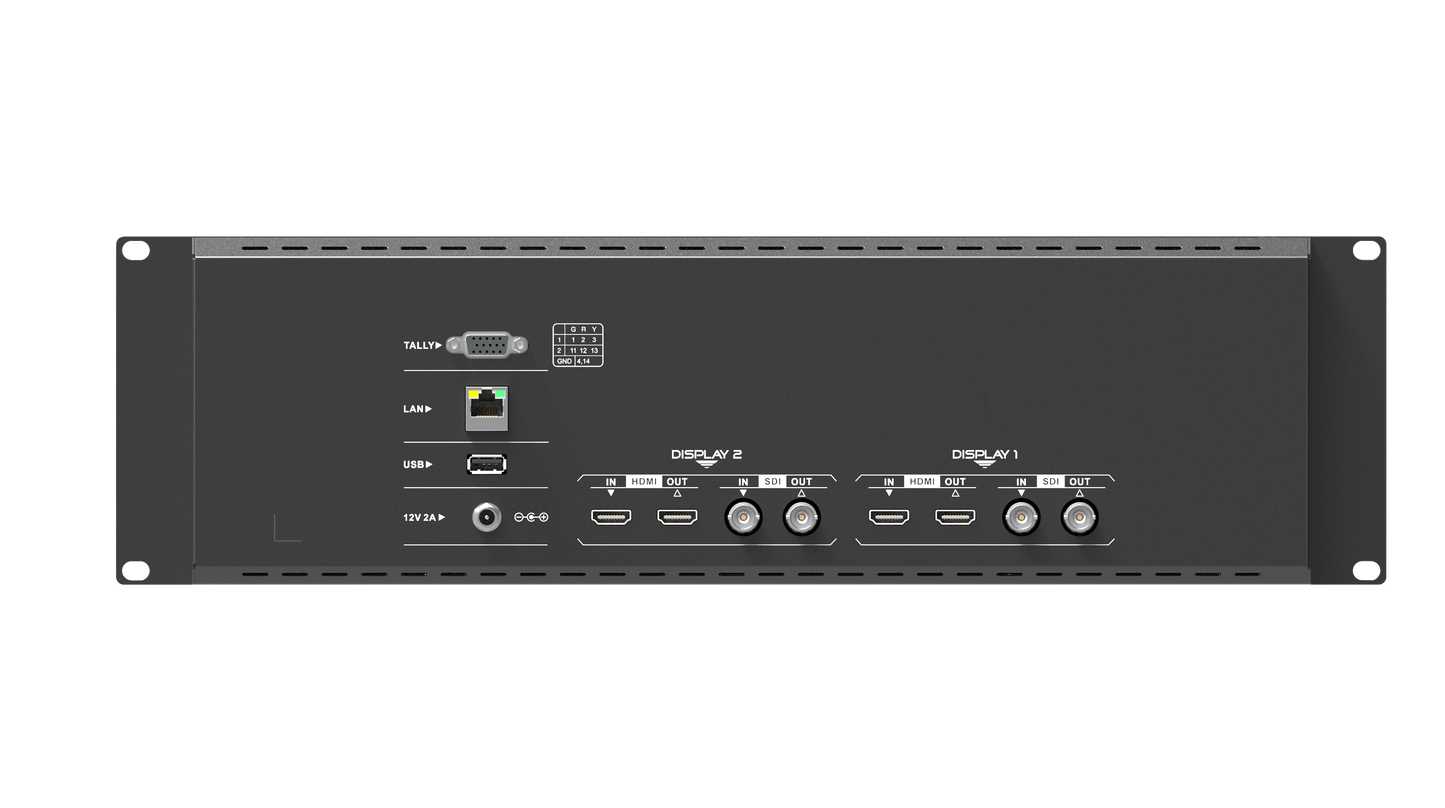

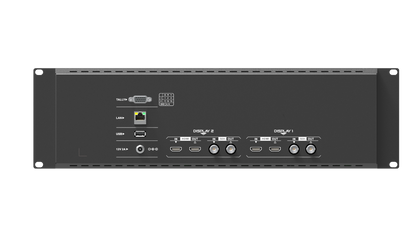

TALLY connector with indicating light; LAN for remote control; USB for LUT load; 2x 3.5 mm ear jacks

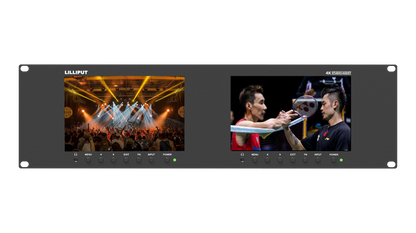

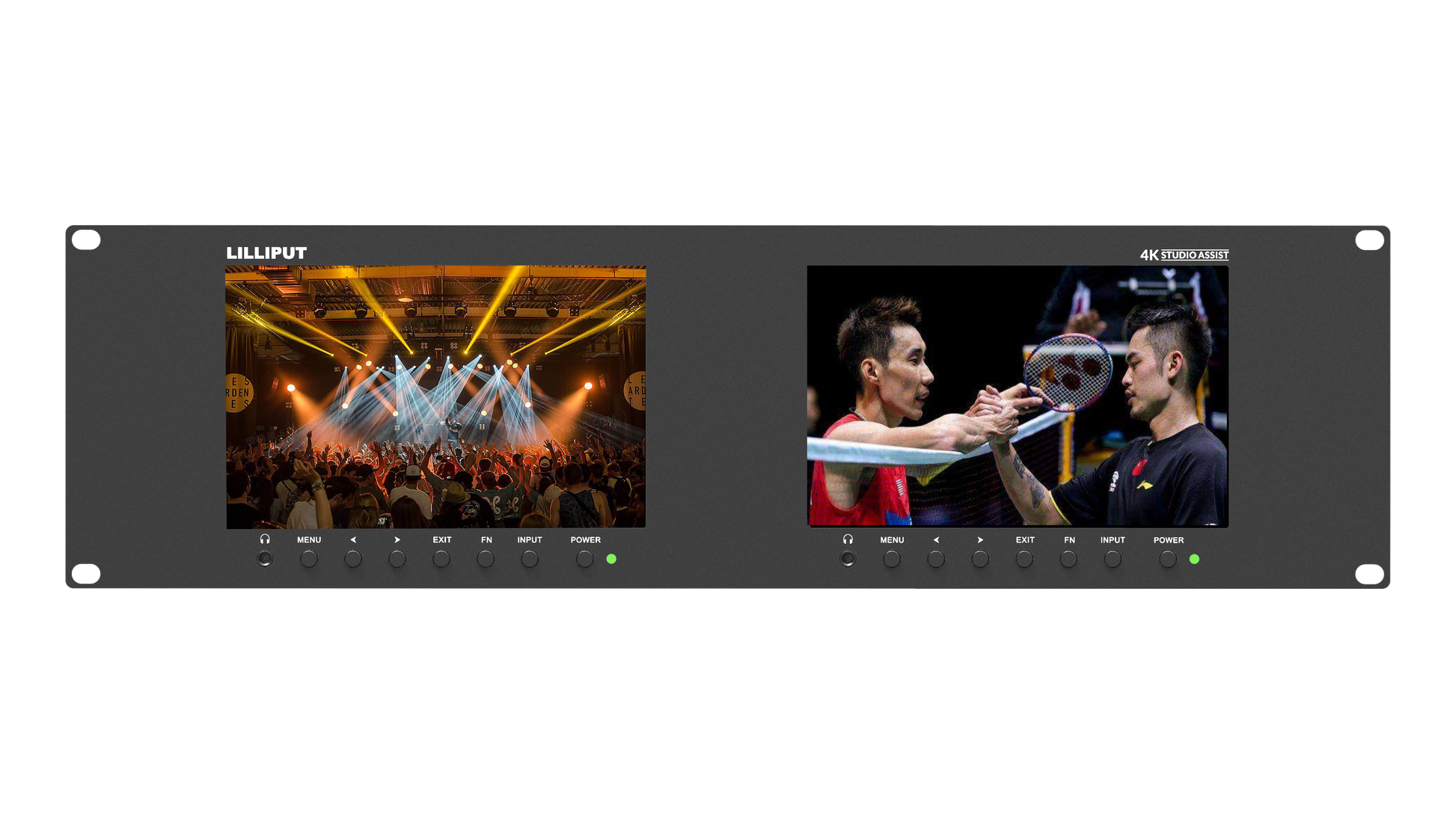

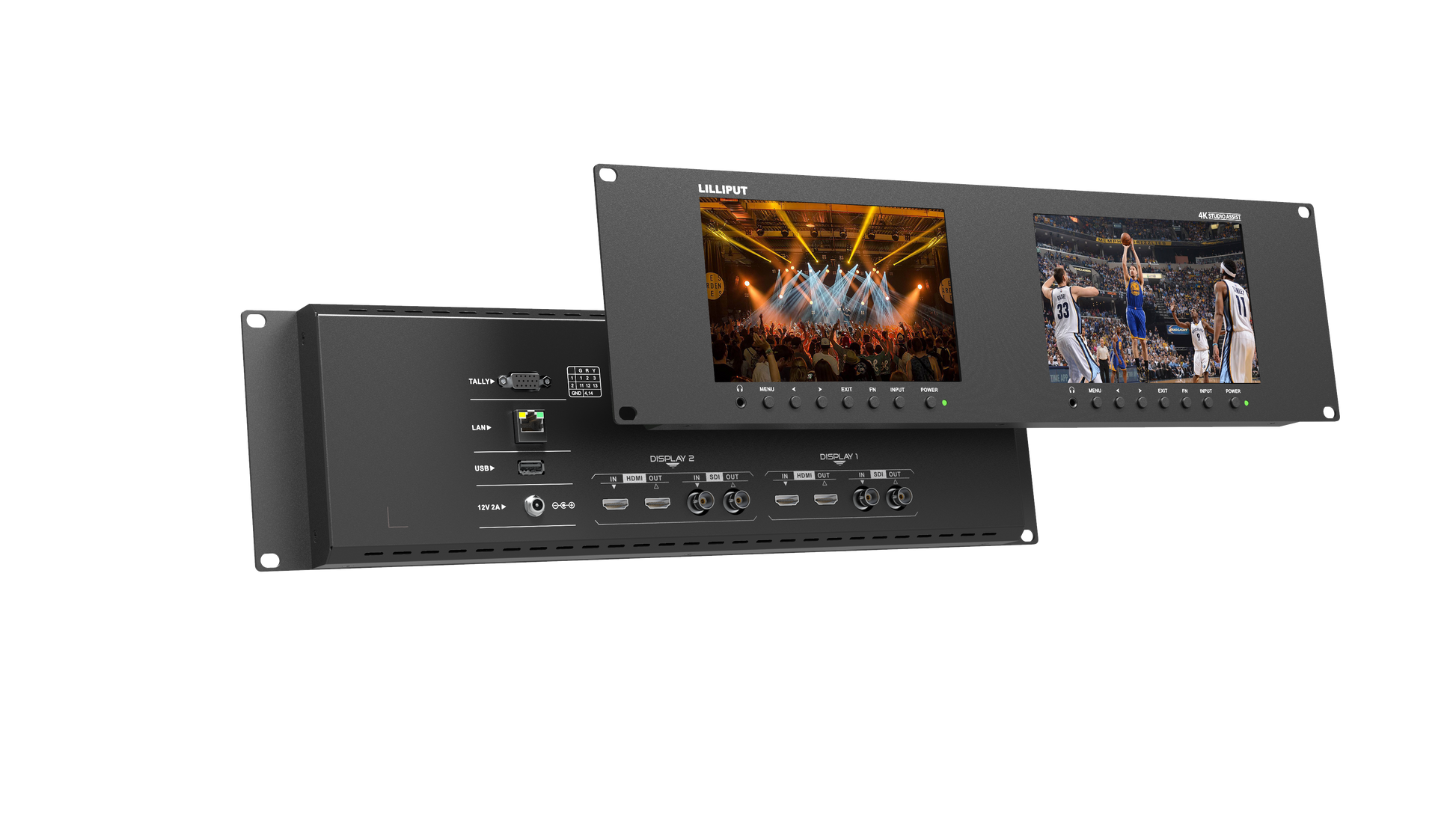

The Lilliput RM-7029S is a solid, versatile dual panel 7 inch HDMI 2.0 / 3G-SDI input monitoring unit. It features 2x 1920 x 1200 panels, each of which can display up to a 4K 2160p signal (through HDMI 2.0). Controlling these panels can be done using a PC to make a connection through a LAN port and - with specific bespoke software - it can be brought into the larger remote workflow environment.
Display
Screen size
7 inch
Aspect ratio
16:10
Native resolution
1920 x 1200
Brightness
400 cd/m²
Contrast
2000:1
Viewing angle
160°/160° (H/V)
Supported log formats
SLog2, SLog3, ArriLog, CLog, JLog, VLog, NLog, User defined
