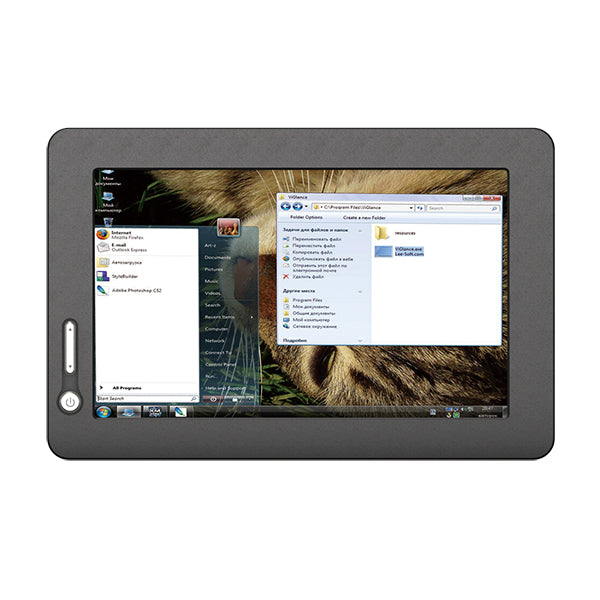

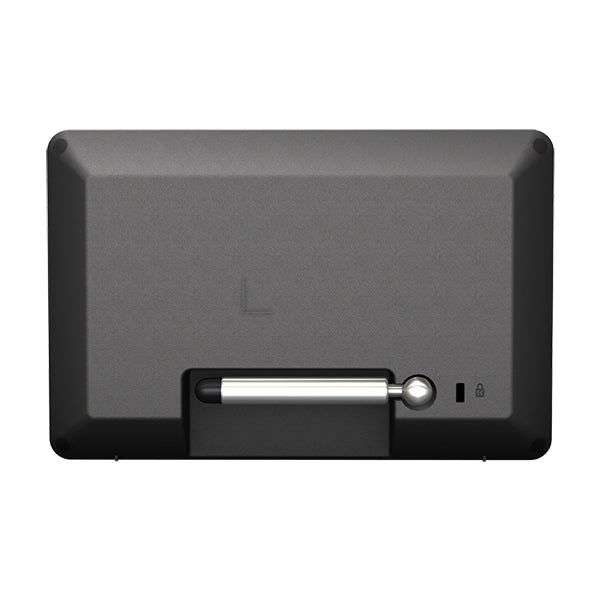

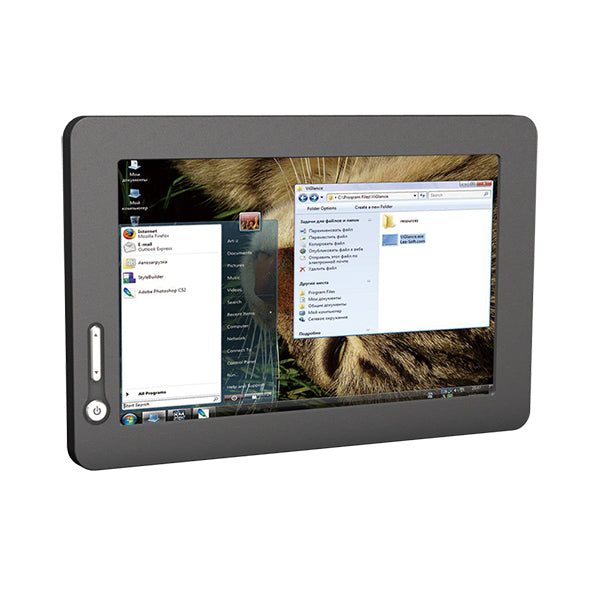

Lilliput UM70 · 7 inch USB monitor
Lilliput UM70 · 7 inch USB monitor
7 inch USB interactive display. 800 x 480, 250 cd/m². USB Type-A input. DC 5V (USB), ≤4.5 W. Resistive touch optional. For kiosks, control panels, and embedded applications.
- 7 inch 800 x 480 LCD, 250 cd/m², 500:1 contrast, 16:9
- 4-wire resistive touch screen optional
- 1x USB Type-A, video and power via USB
- DC 5V (USB), ≤4.5 W; -20°C to 60°C operating
- 188 x 123 x 25.8 mm; 385 g
Display
| Screen size | 7 inch |
|---|---|
| Aspect ratio | 16:9 |
| Native resolution | 800 x 480 |
| Panel type | LCD |
| Brightness | 250 cd/m² |
| Contrast | 500:1 |
| Viewing angle | 140°/120° (H/V) |
| Touch screen | 4-wire resistive (optional) |
Connections
| Video inputs | 1x USB Type-A |
|---|---|
| Additional connections | 1x USB (for touch) (optional) |
Operational Features
Power
| Input voltage | DC 5V (USB) |
|---|---|
| Power consumption | ≤4.5 W |
Environmental
| Operating temperature | -20°C to 60°C |
|---|---|
| Storage temperature | -30°C to 70°C |
Mechanical
| Dimensions | 188 x 123 x 25.8 mm |
|---|---|
| Weight | 385 g |
Accessories
| Included | CD Driver, Manual |
|---|
