Interactive 7 inch display for commercial and industrial environments. 1280 x 800, 1000 cd/m². HDMI, VGA, USB-C. DC 9 to 36V, ≤8.5 W. VESA 75 mm. For industrial and embedded applications.
7 inch 1280 x 800 LCD, 1000 cd/m², 800:1 contrast, 16:10
10-point PCAP touch screen optional

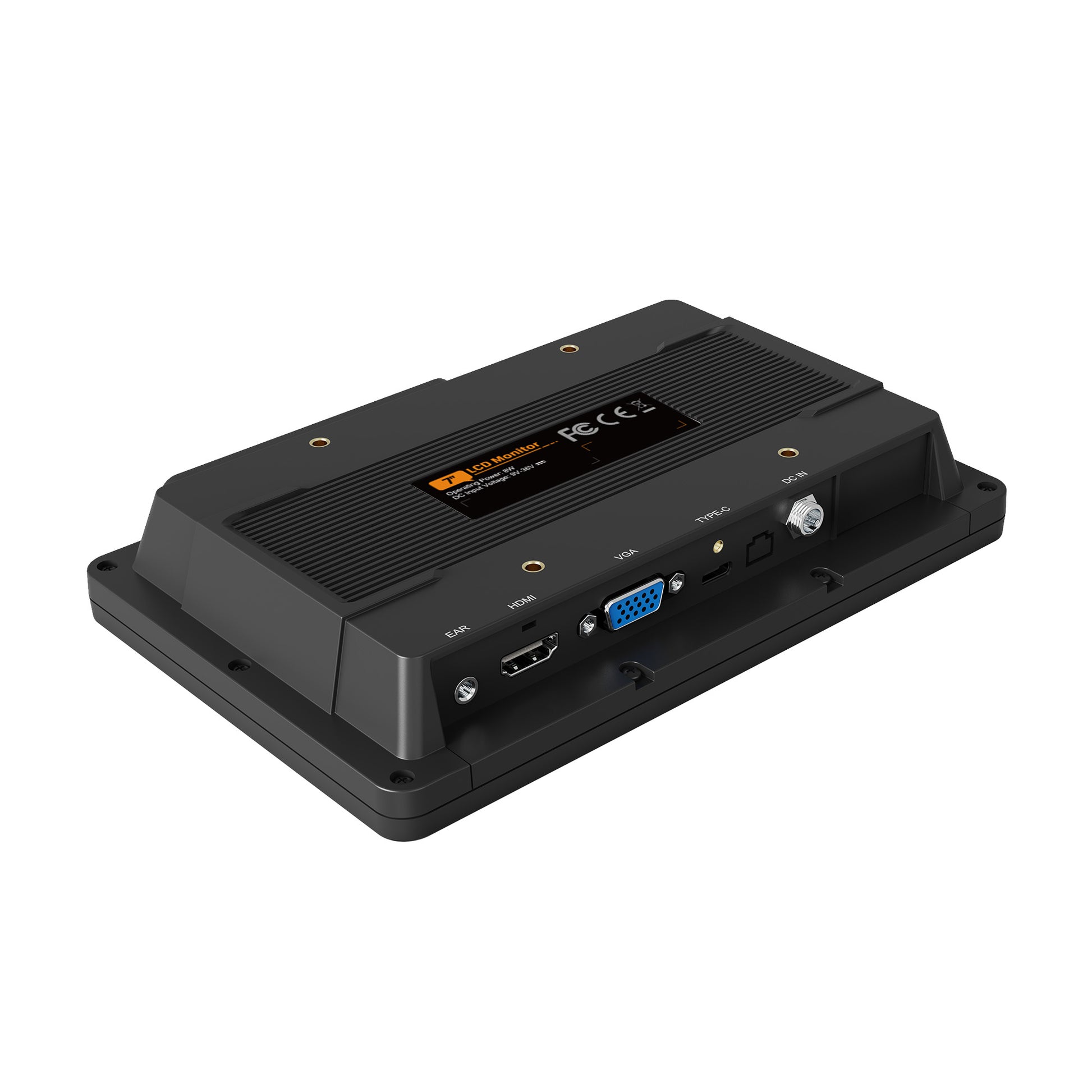

1x HDMI, 1x VGA, 1x USB-C, versatile inputs
3.5 mm ear jack (2ch 48kHz 24-bit); built-in speaker
DC 9 to 36V, ≤8.5 W; -20°C to 60°C operating
184.5 x 118.8 x 32 mm; 410 g; VESA 75 mm mount

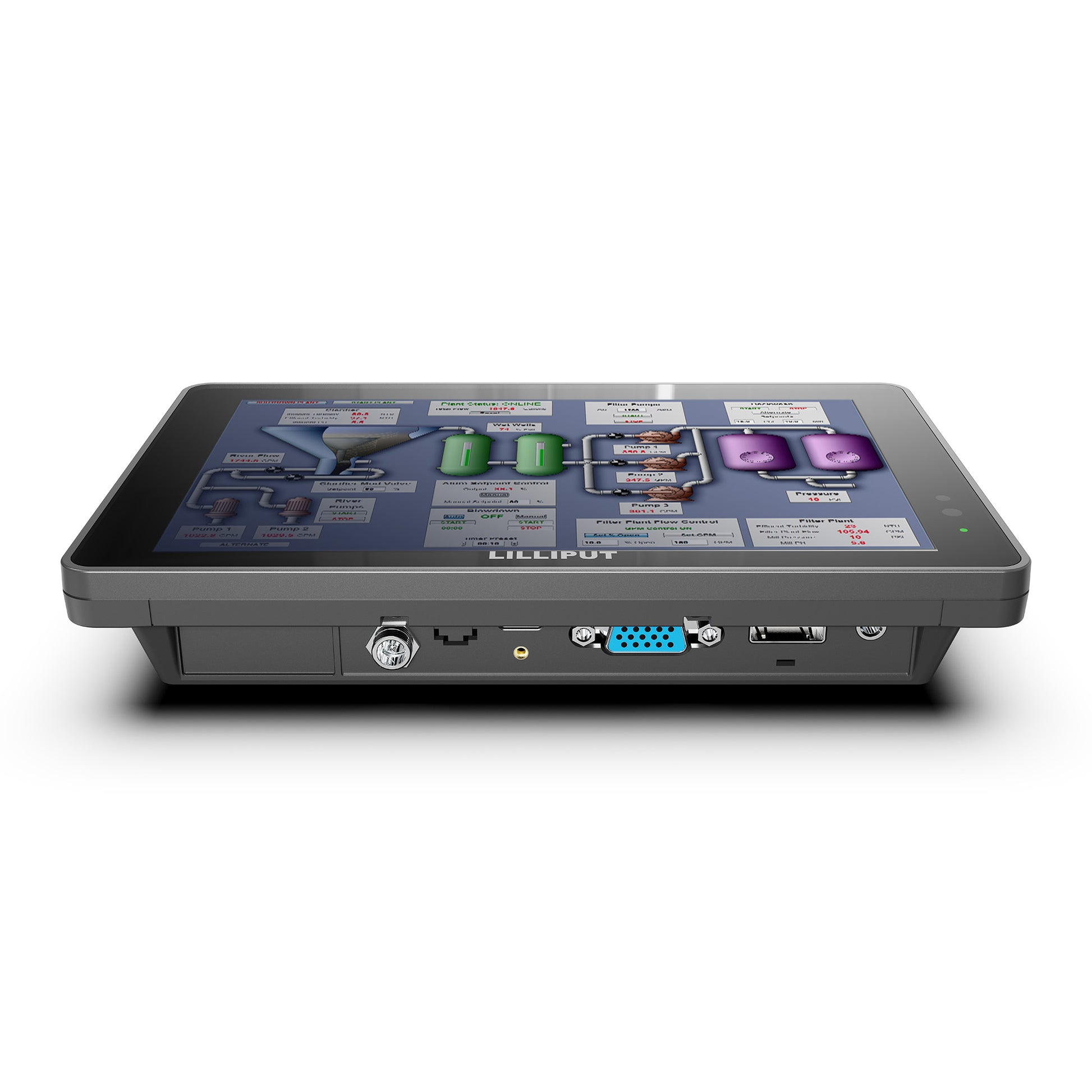

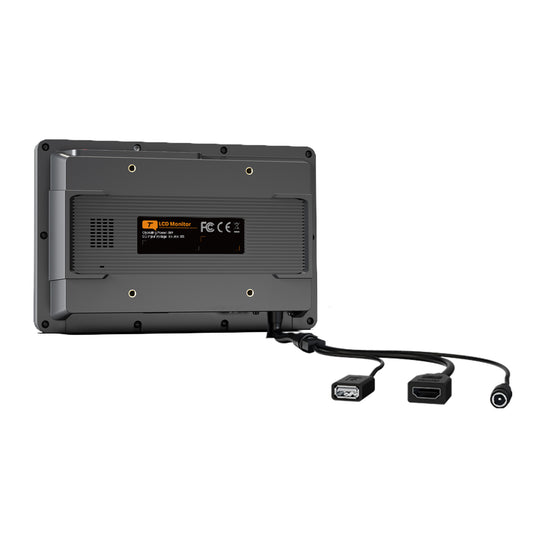

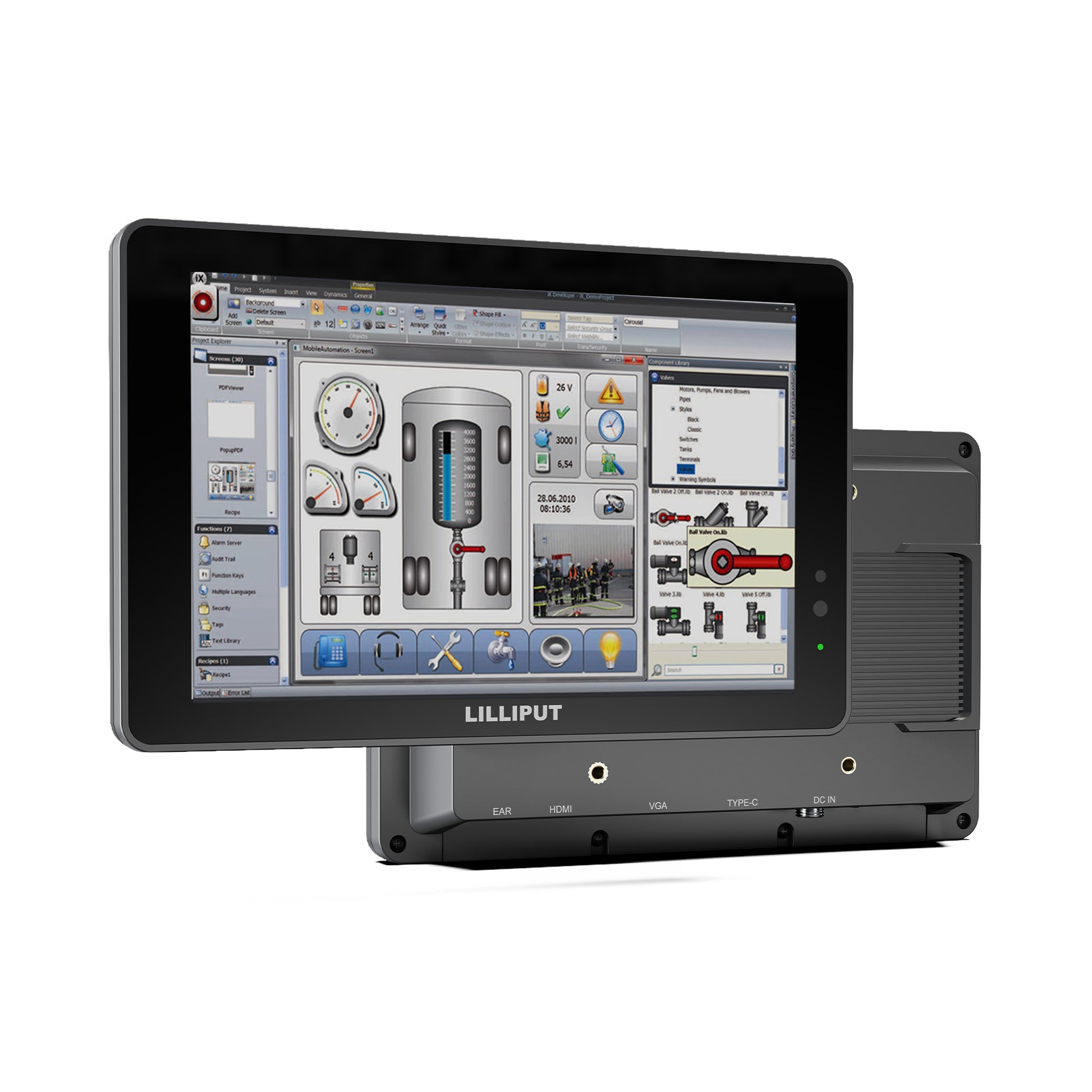

The Lilliput 719 is a 7 inch high-brightness display for commercial and industrial environments. A 10-point PCAP capacitive touch screen is available through USB-C, connecting natively to Windows 10/11 and most common operating systems. HDMI, VGA, and USB-C video inputs cover modern and legacy hosts; USB-C and HDMI accept up to a 4K 30Hz signal, and VGA accepts up to 1080p. The chassis includes a 3.5 mm earphone jack and a built-in speaker. For wash-down and outdoor installations, the 719H is the IP65-sealed model with connections on a breakout cable.
Display
Screen size
7 inch
Aspect ratio
16:10
Native resolution
1280 x 800
Panel type
LCD
Brightness
1000 cd/m²
Contrast
800:1
Viewing angle
170°/170° (H/V)
LED lifetime
50,000 h
Touch screen
10-point PCAP (optional)
Connections

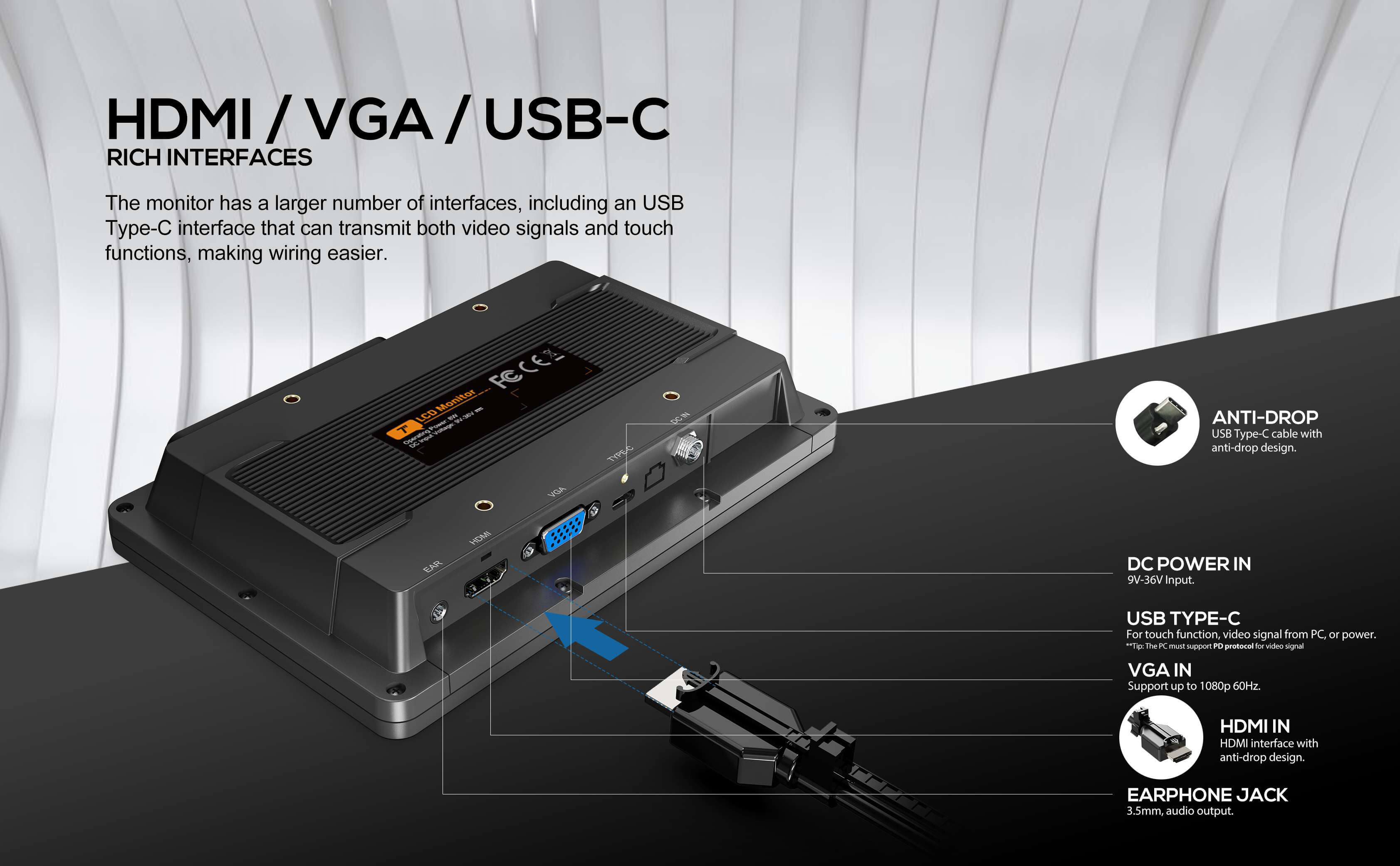

Video inputs
1x HDMI, 1x VGA, 1x USB-C
Audio
1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit)
