Interactive 7 inch display for commercial and industrial environments. 800 x 480, 1000 cd/m². HDMI 1.4b, VGA, 2x AV. DC 12 to 24V, ≤8.5 W. IP64 front panel. For kiosks, control panels, and industrial applications.

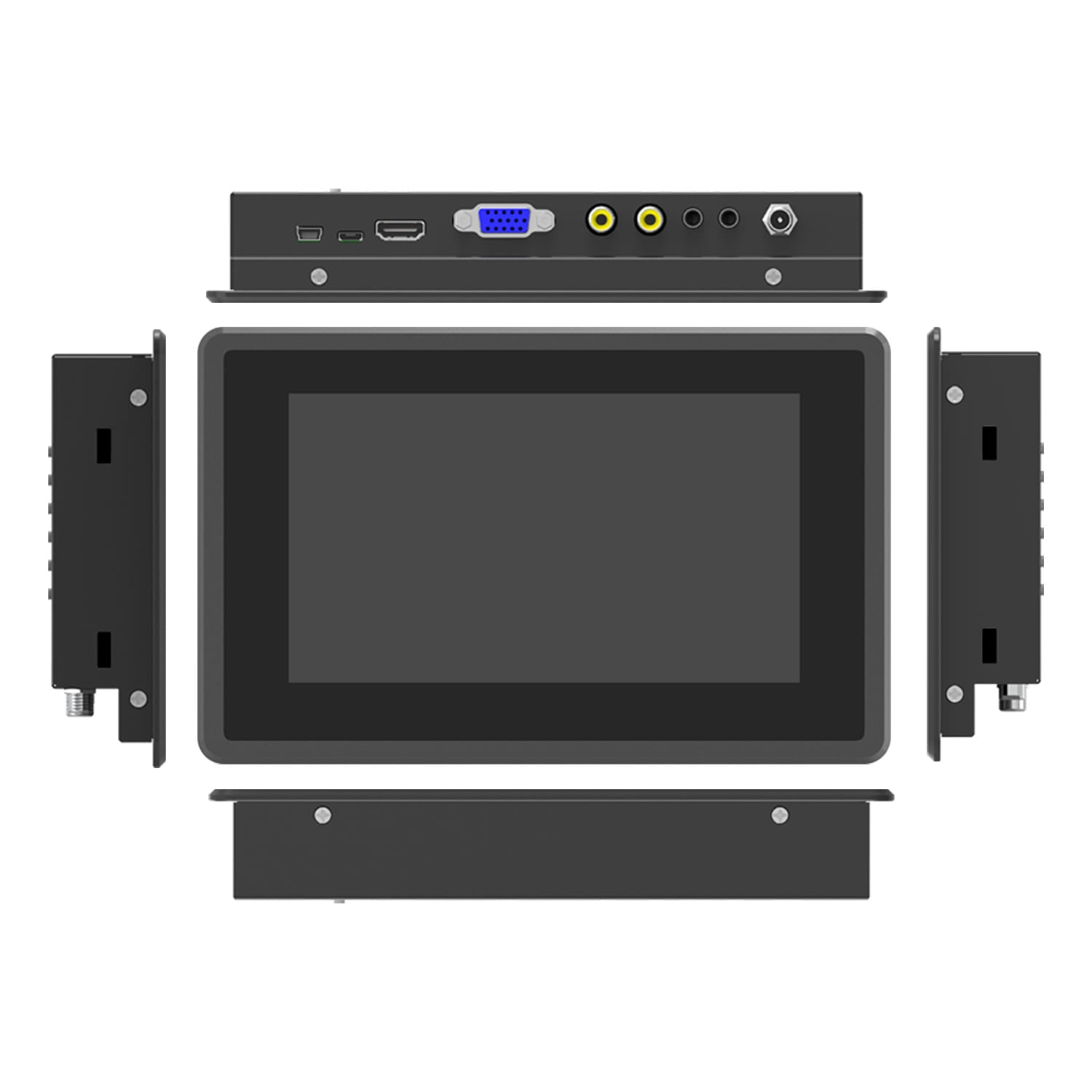

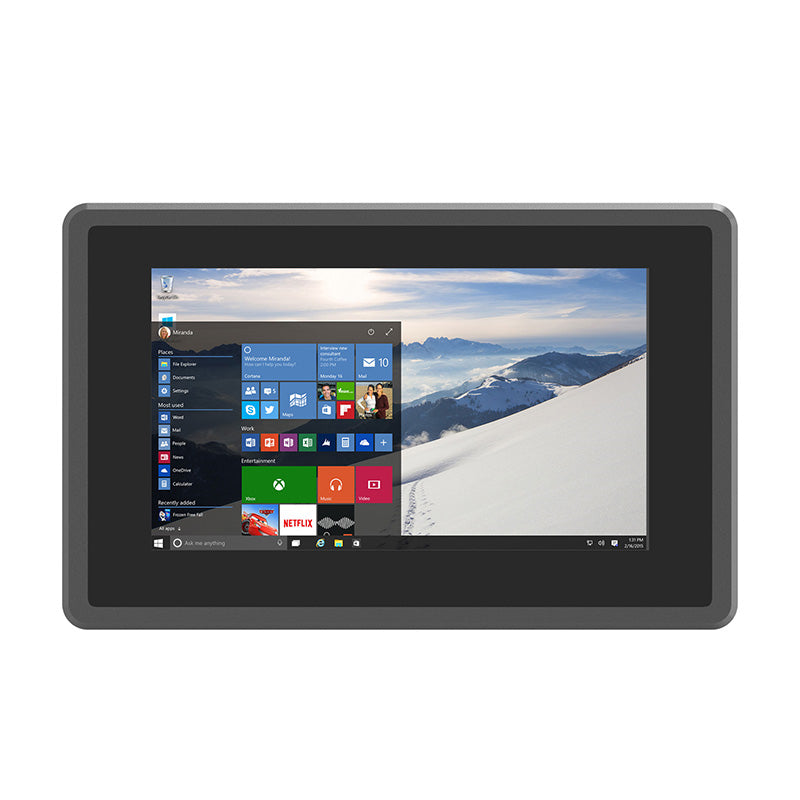

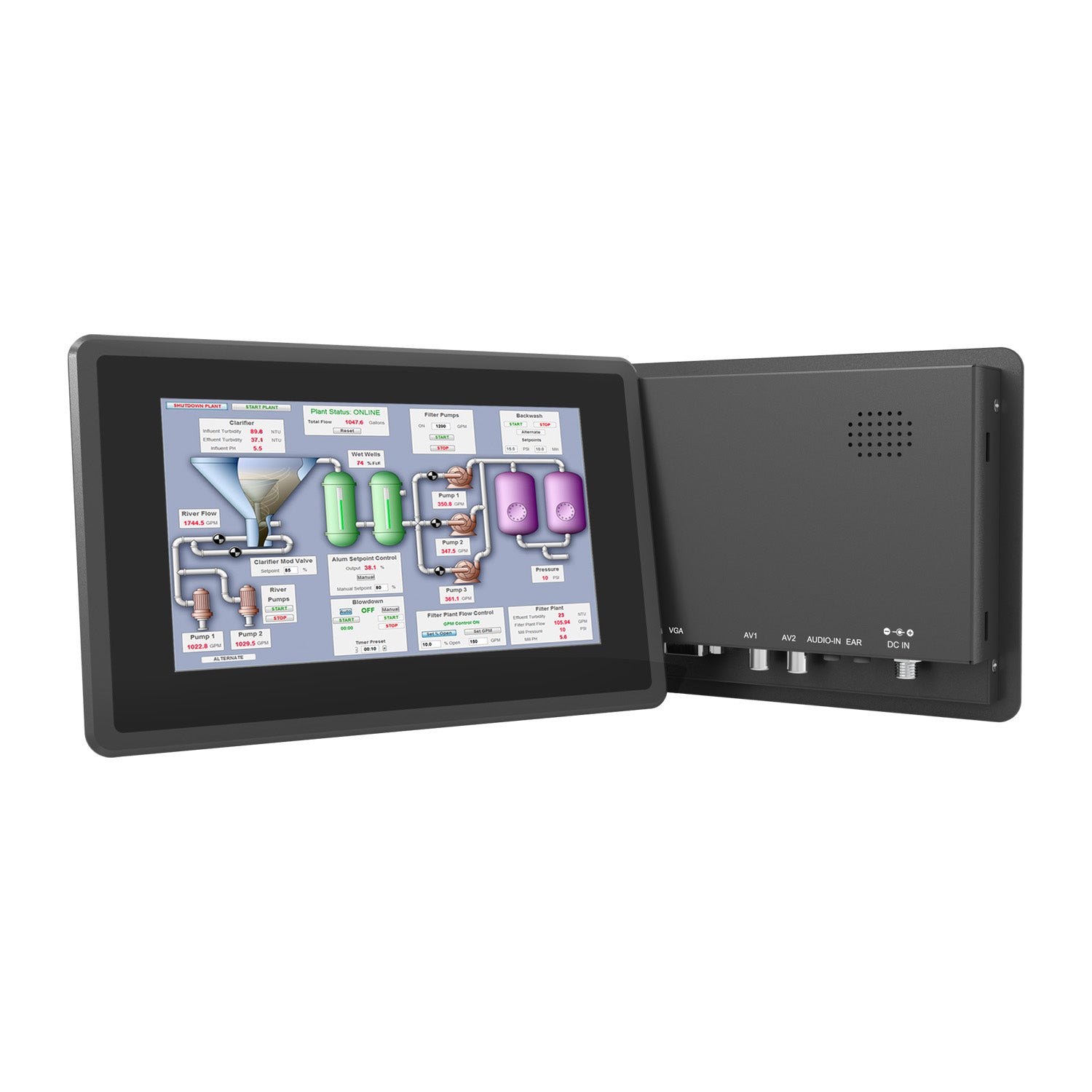

The Lilliput TK701 is a 7 inch HDMI input monitor. Sporting a 1000 cd/m² panel, it has the brightness and presence to work in any lighting condition - and with its IP64 front panel, in any weather condition. Ideally suited for outdoor usage, it can be flush-mounted into a wall cavity installation and is perfect for use in an industrial automation, restaurant ordering, or home security system setup.
Display
Screen size
7 inch
Aspect ratio
16:10
Native resolution
800 x 480
Panel type
LCD
Brightness
1000 cd/m²
Contrast
500:1
Viewing angle
140°/120° (H/V)
Touch screen
10-point PCAP (optional)

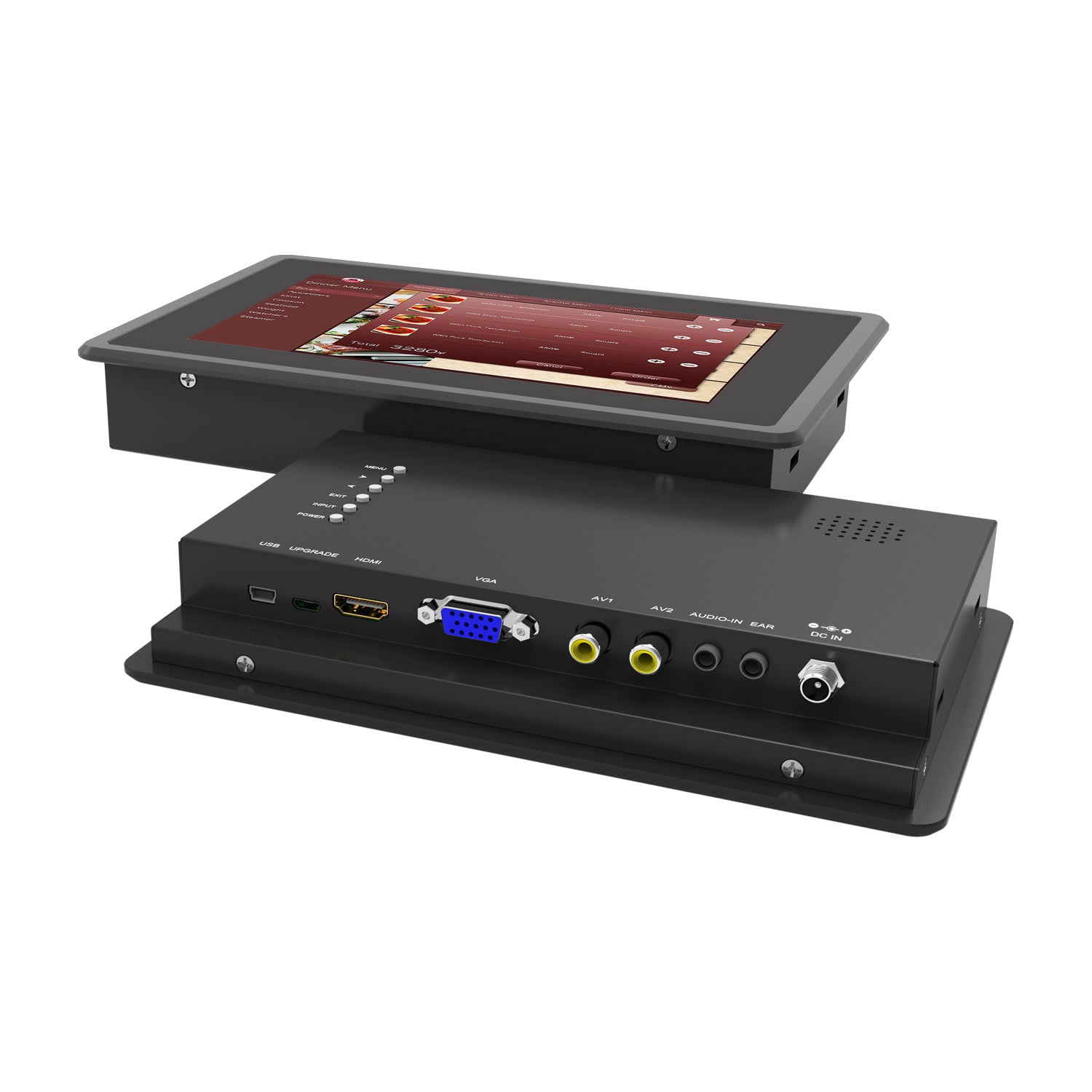

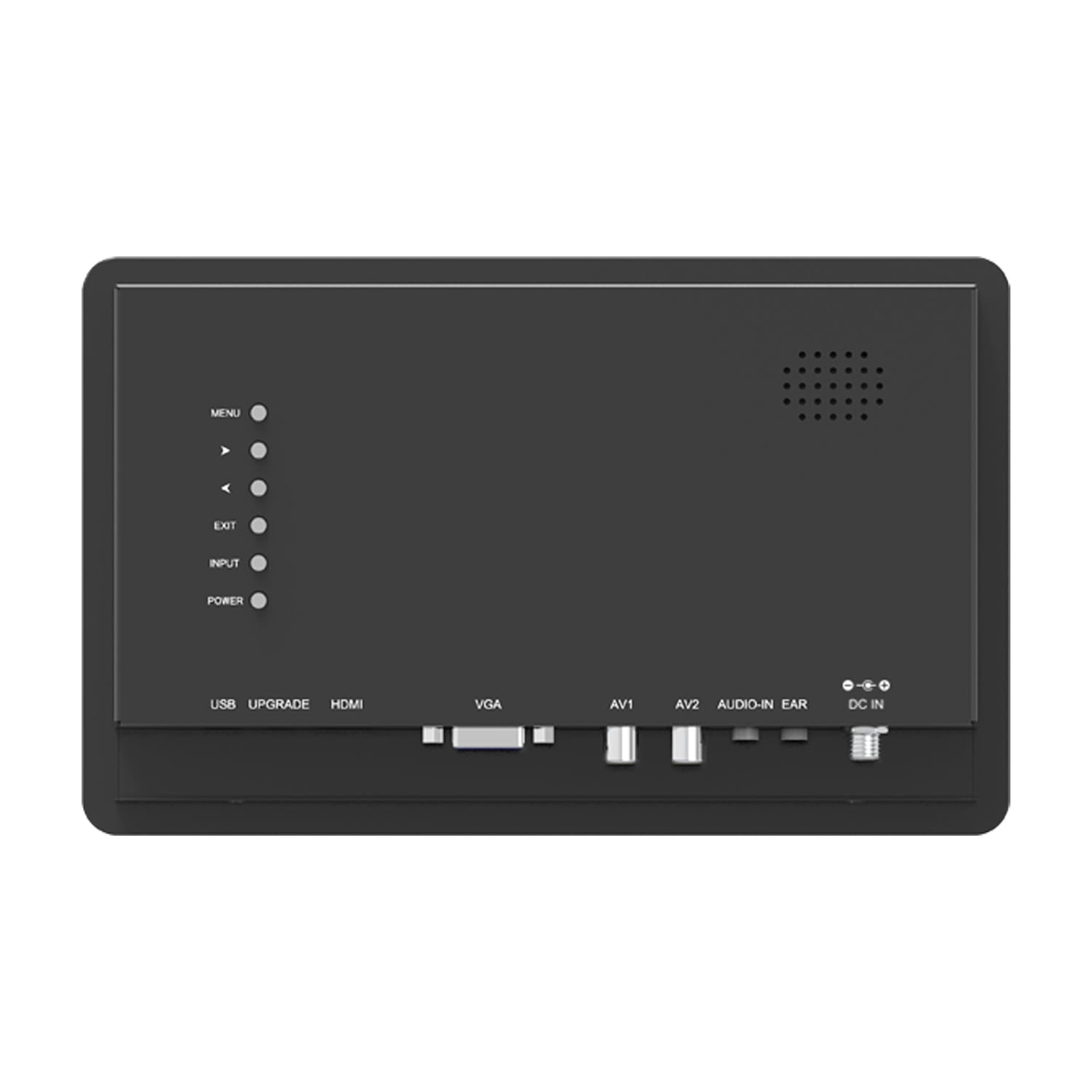

Connections
Video inputs
1x HDMI 1.4b, 1x VGA, 2x Video (RCA)
Audio
1x Built-in speaker, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit), 3.5 mm audio input
Additional connections
1x Mini USB (touch), 1x Micro USB (upgrade) (optional)
