Lilliput TK970 · 9.7 inch 4:3 open frame monitor

Interactive 9.7 inch display for commercial and industrial environments. 1024 x 768, 350 cd/m². HDMI, DVI, VGA, Composite. DC 7 to 24V, ≤10 W. For kiosks, control panels, and industrial applications.

1 5

£210.00 exc VAT £252.00inc VAT

Key Attributes

Display resolution 1024 x 768
Aspect ratio 4:3
Contrast 900:1
Touch screen Resistive
Brightness 350 cd/m²
Screen size 9 inch

Configuration

Monitor Touch Screen Monitor

View full details

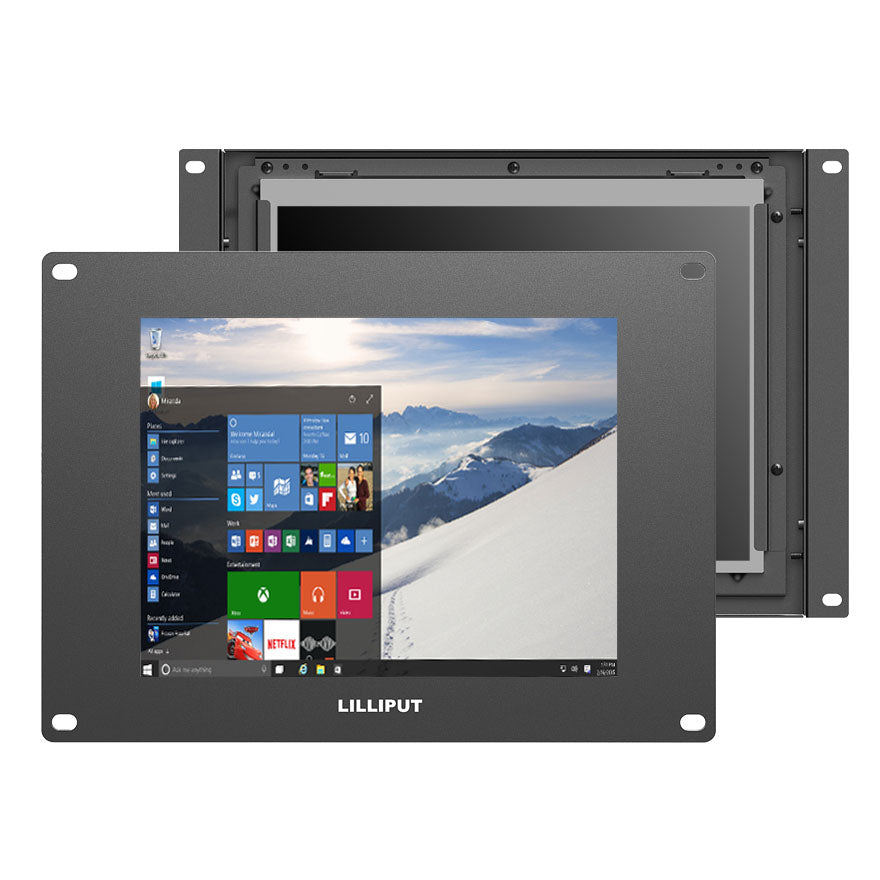

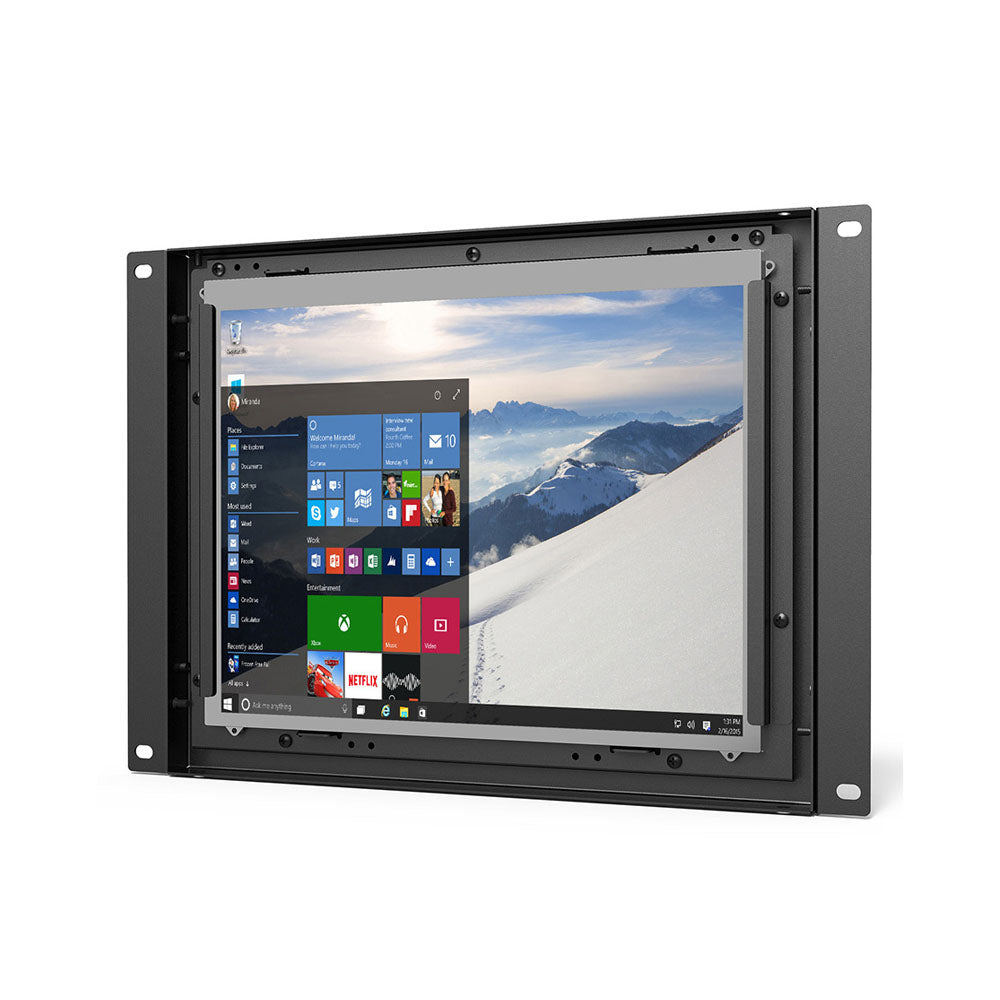

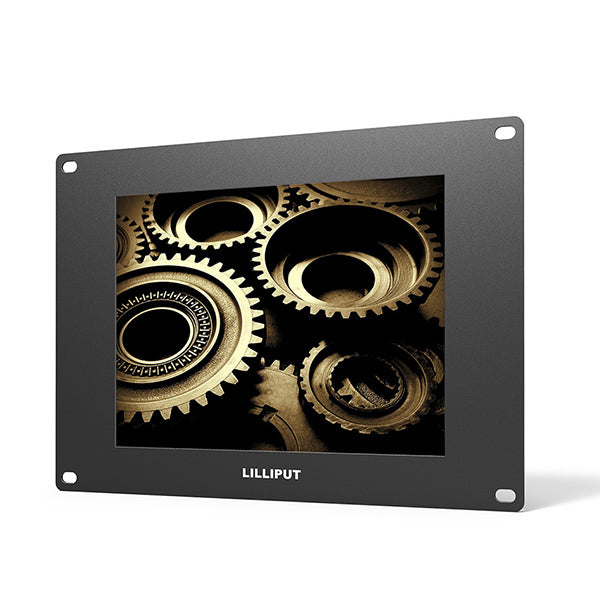

9.7 inch open frame touch screen monitor
5-wire resistive touch screen optional
1024 x 768 LCD, 350 cd/m², 900:1 contrast, 4:3

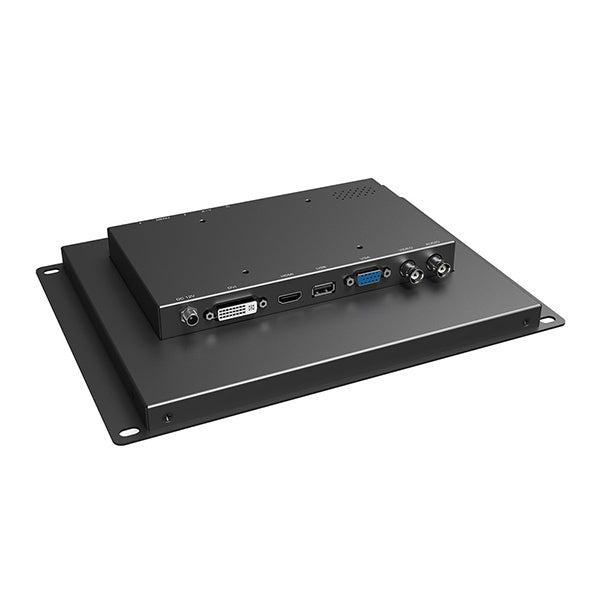

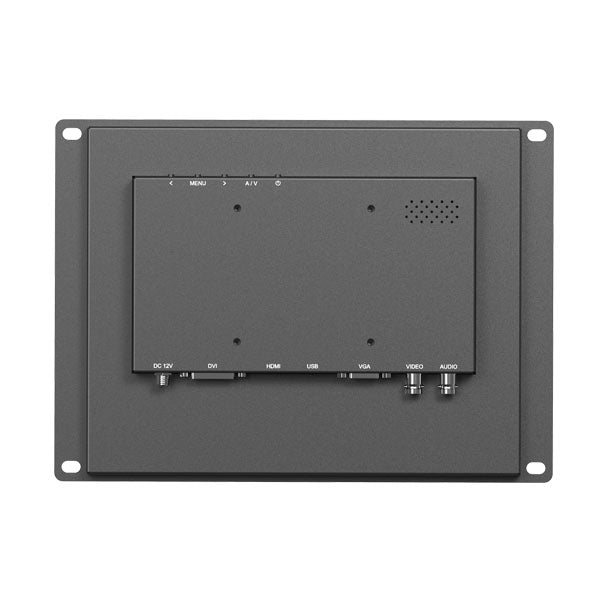

1x HDMI, 1x DVI, 1x VGA, 1x Composite, versatile inputs
DC 7 to 24V, ≤10 W; -20°C to 60°C operating
279.6 x 203.5 x 37.6 mm; 1.6 kg; panel or open frame

Display

Screen size	9.7 inch
Aspect ratio	4:3
Native resolution	1024 x 768
Panel type	LCD
Brightness	350 cd/m²
Contrast	900:1
Viewing angle	174°/174° (H/V)
Touch screen	5-wire resistive (optional)

Connections

Video inputs	1x HDMI, 1x DVI, 1x VGA, 1x Composite (RCA)
Audio	1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit)

Video Standards

HDMI	1080p 50/60, 1080i 50/60, 720p 50/60

Operational Features

Power

Input voltage	DC 7 to 24V
Power consumption	≤10 W

Environmental

Operating temperature	-20°C to 60°C
Storage temperature	-30°C to 70°C

Mechanical

Dimensions	279.6 x 203.5 x 37.6 mm
Weight	1.6 kg
Open frame	279.6 x 195.5 x 36.1 mm, 1.3 kg (optional)

Accessories

Included	12V DC Adapter, HDMI A-A Cable, VGA Cable, Audio BNC Cable, Video BNC Cable, CD Driver, Manual, Panel Bracket or Open Frame Bracket (2 choose 1, default panel)
Optional	VESA Folding Bracket, DVI Cable
