Lilliput TK700 · 7 inch monitor

Interactive 7 inch display for commercial and industrial environments. 800 x 480, 1000 cd/m². HDMI, VGA, 2x Composite. DC 12V, ≤4.5 W. For kiosks, control panels, and industrial applications.

1 5

£149.00 exc VAT £178.80inc VAT

Key Attributes

Display resolution 800 x 480
Aspect ratio 16:9
Contrast 1000:1
Touch screen Resistive
Brightness 1000 cd/m²
Screen size 7 inch

Configuration

Monitor Touch Screen Monitor

View full details

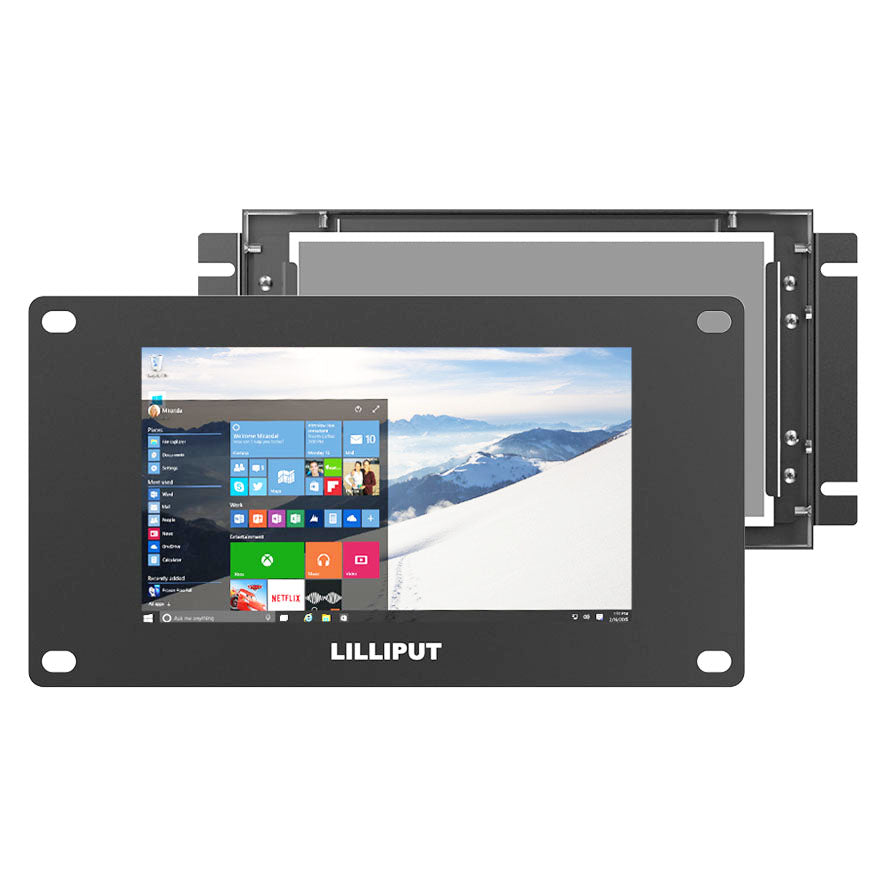

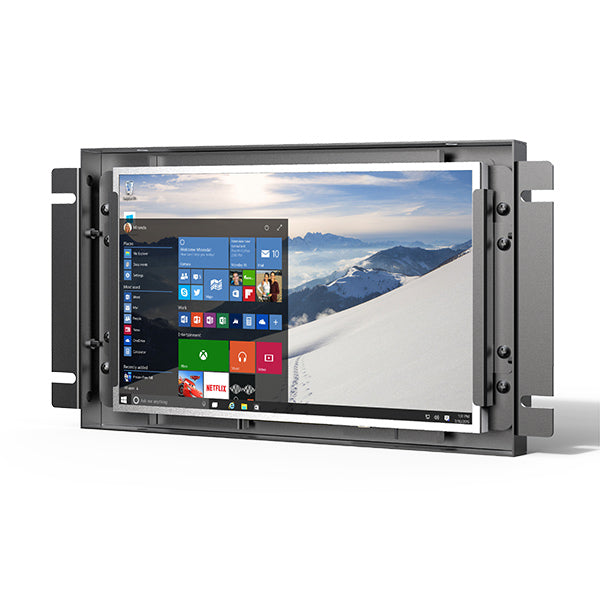

7 inch open frame touch screen monitor
4-wire resistive touch screen optional
800 x 480 LCD, 1000 cd/m², 1000:1 contrast, 16:9

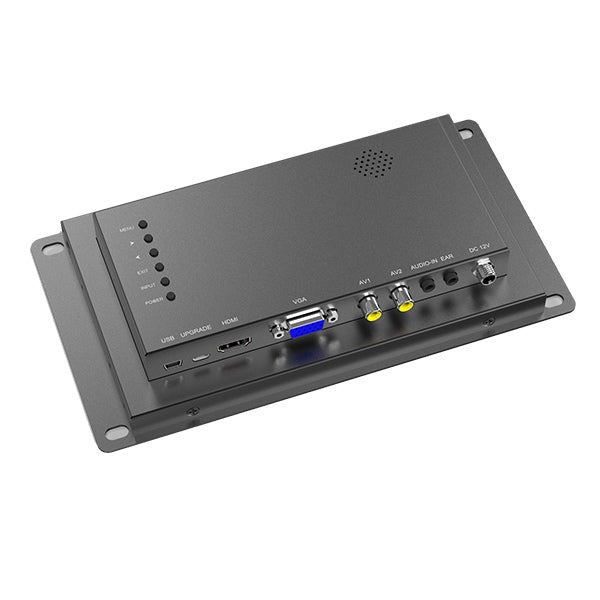

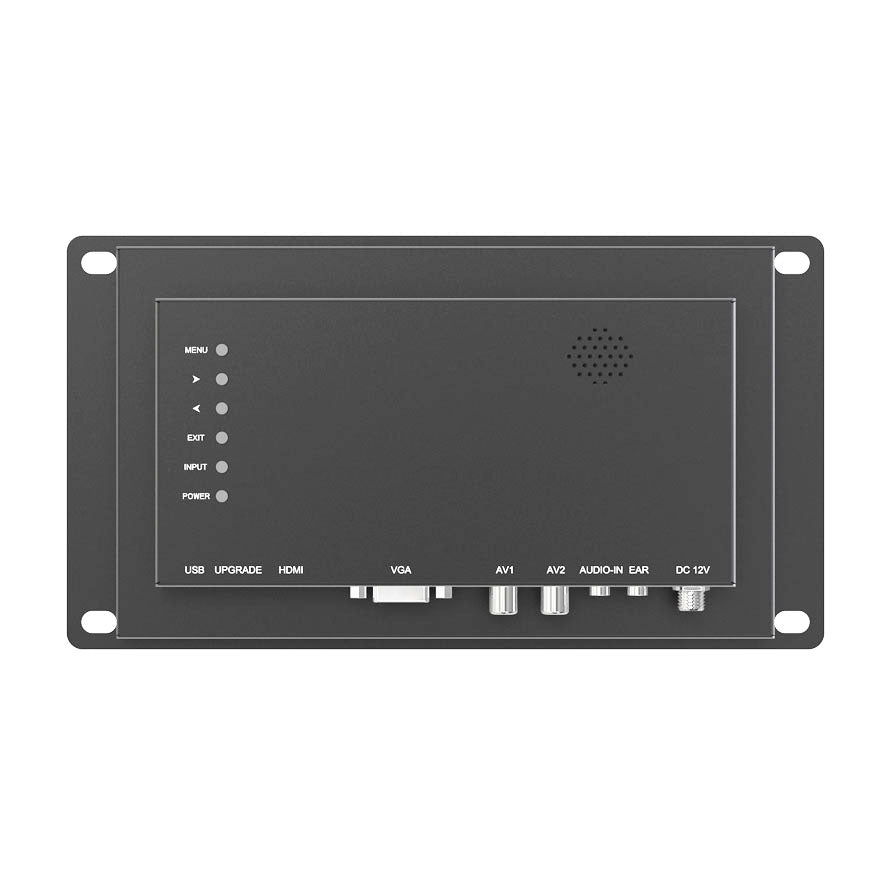

1x HDMI, 1x VGA, 2x Composite, versatile inputs
HDMI 4K 30Hz; DC 12V, ≤4.5 W
-20°C to 60°C operating
226.8 x 124 x 34.7 mm; 970 g; open frame option

Display

Screen size	7 inch
Aspect ratio	16:9
Native resolution	800 x 480
Panel type	LCD
Brightness	1000 cd/m²
Contrast	1000:1
Viewing angle	140°/120° (H/V)
Touch screen	4-wire resistive (optional)

Connections

Video inputs	1x HDMI, 1x VGA, 2x Composite (RCA)
Audio	1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit)

Video Standards

HDMI	2160p 24/25/30, 1080p 50/60, 1080i 50/60, 720p 50/60

Operational Features

Power

Input voltage	DC 12V
Power consumption	≤4.5 W

Environmental

Operating temperature	-20°C to 60°C
Storage temperature	-30°C to 70°C

Mechanical

Dimensions	226.8 x 124 x 34.7 mm
Weight	970 g
Open frame	279.6 x 195.5 x 36.1 mm, 950 g (optional)

Accessories

Included	12V DC Adapter, HDMI A-A Cable, VGA Cable, Audio Input Cable, RCA Cable, CD Driver, Manual
Optional	Open Frame Bracket
