IP65 7 inch display for outdoor and wash-down industrial environments. 1280 x 800, 1000 cd/m². HDMI via breakout cable. DC 9 to 36V, ≤8.5 W. VESA 75 mm.
7 inch 1280 x 800 LCD, 1000 cd/m², 800:1 contrast, 16:10
10-point PCAP touch screen optional
IP65 sealed frame; HDMI via breakout cable
USB-A for touch on breakout cable (optional); built-in speaker
DC 9 to 36V, ≤8.5 W; -20°C to 60°C operating
184.5 x 118.8 x 32 mm; 560 g; VESA 75 mm mount

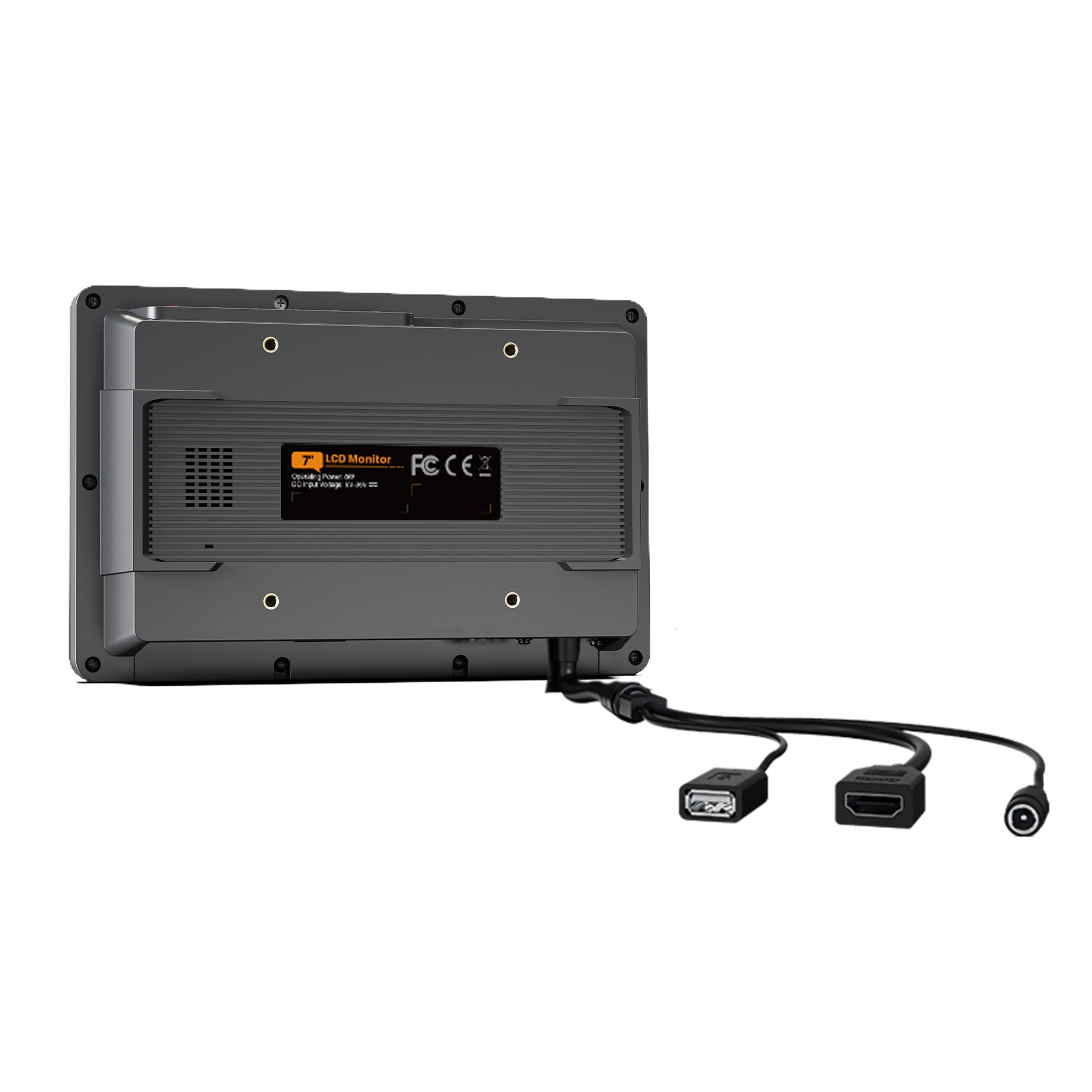

The Lilliput 719H is the IP65-sealed 7 inch high-brightness display for wash-down and outdoor industrial environments. A sealed frame and breakout cable carry HDMI, USB-A for touch, and DC power, so the chassis has no exposed VGA, USB-C, or earphone jack. HDMI on the breakout cable accepts up to a 4K 30Hz signal. A 10-point PCAP capacitive touch screen is available via USB-A on the breakout cable, connecting natively to Windows 10/11 and most common operating systems.
