Interactive 7 inch display for commercial and industrial environments. 800 x 480, 1000 cd/m². HDMI, VGA, Composite. DC 7 to 24V, ≤4.5 W. VESA 75 mm. For industrial and embedded applications.
7 inch 800 x 480 LCD, 1000 cd/m², 1000:1 contrast, 16:9

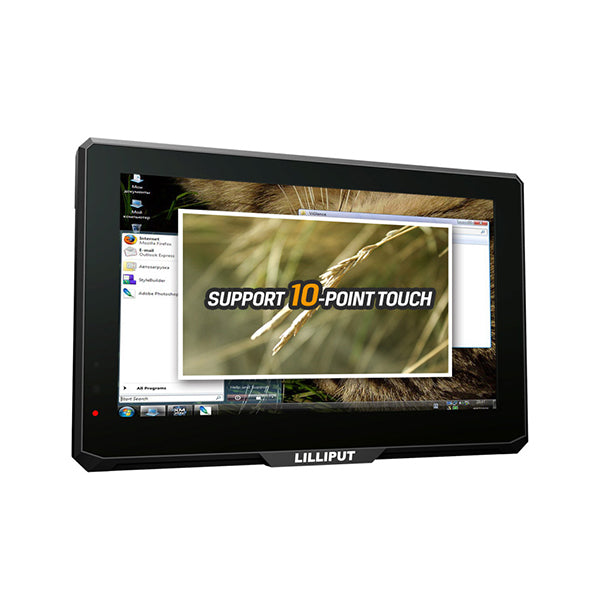

10-point PCAP touch screen optional
1x HDMI, 1x VGA, 1x Composite, versatile inputs
3.5 mm ear jack (2ch 48kHz 24-bit); built-in speaker; I/O control
DC 7 to 24V, ≤4.5 W; -20°C to 60°C operating
185 x 118.5 x 29.5 mm; 415 g; VESA 75 mm mount

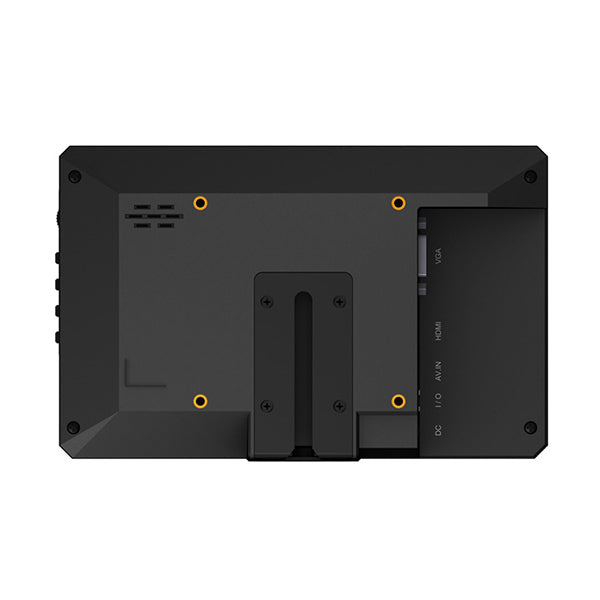

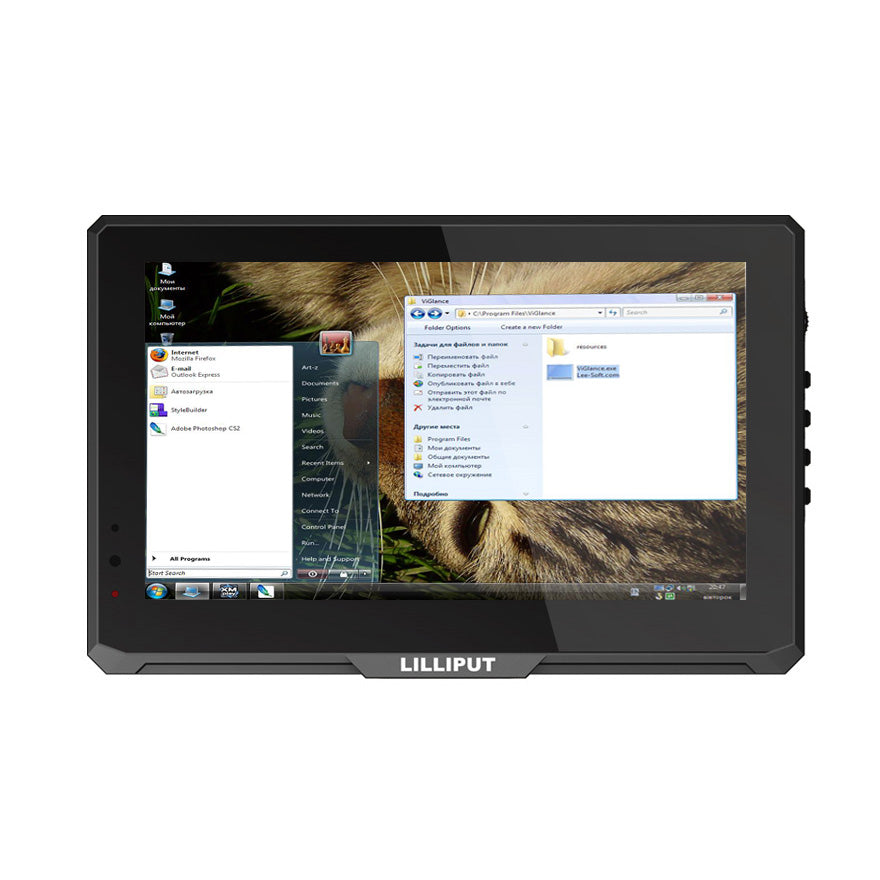

The Lilliput 779 is a 7 inch high-brightness display for commercial and industrial environments. A 10-point PCAP capacitive touch screen is available through Mini USB, connecting to Windows hosts. HDMI, VGA, and composite video inputs cover modern and legacy systems; HDMI accepts up to 1080p. The chassis includes a 3.5 mm earphone jack, a built-in speaker, and an I/O control interface for video triggers. VESA 75 mm mounting is supported.
Display
Screen size
7 inch
Aspect ratio
16:9
Native resolution
800 x 480
Panel type
LCD
Brightness
1000 cd/m²
Contrast
1000:1
Viewing angle
120°/140° (H/V)
Touch screen
10-point PCAP (optional)
Connections
Video inputs
1x HDMI, 1x VGA, 1x Composite
Audio
1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit)
Additional connections
1x Mini USB (touch) (optional)
Video Standards
HDMI
1080p 50/60, 1080i 50/60, 720p 50/60
Operational Features
Sensors
Ambient light auto-dimming (optional)
Image mirroring
Vertical flip, Horizontal flip
Power
Input voltage
DC 7 to 24V
Power consumption
≤4.5 W
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Mechanical
Dimensions
185 x 118.5 x 29.5 mm
Weight
415 g
Mounting
VESA mount
75 x 75 mm
Control
I/O
1
Accessories
Included
12V DC Adapter, 589 Bracket, Remote Control, HDMI A-A Cable, VGA Cable, Composite Cable, I/O Control Line, Car Power Adapter, Manual
Optional
HDMI to DVI Cable (with touch), VESA Folding Bracket, VESA Battery Plate
