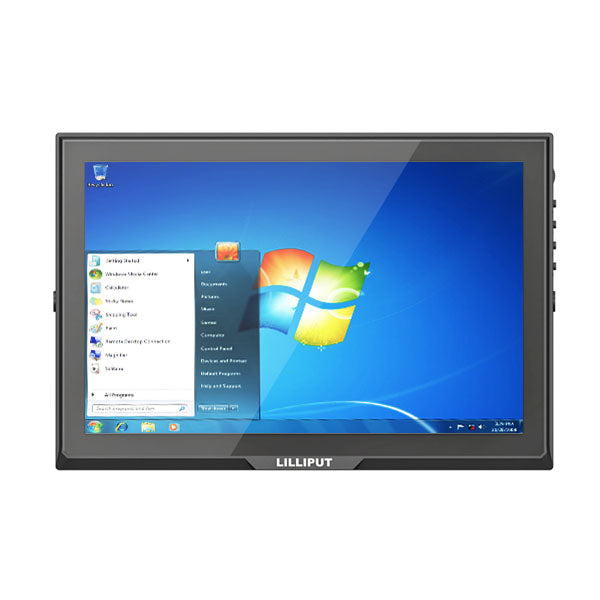

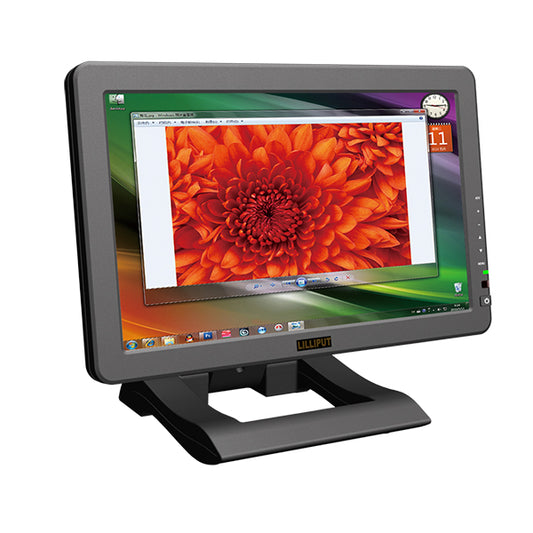

Lilliput FA1014 · 10.1 inch monitor

Interactive 10.1 inch display for commercial and industrial environments. 1280 x 800, 350 cd/m². HDMI, VGA, Composite. DC 7 to 24V, ≤10 W. Capacitive touch optional. For kiosks, control panels, and industrial applications.

1 6

£180.00 exc VAT £216.00inc VAT

Key Attributes

Display resolution 1280 x 800
Aspect ratio 16:10
Contrast 800:1
Touch screen PCAP
Brightness 350 cd/m²
Screen size 10 inch

Configuration

Monitor Touch Screen Monitor

View full details

10.1 inch 1280 x 800 LCD, 350 cd/m², 800:1 contrast, 16:10

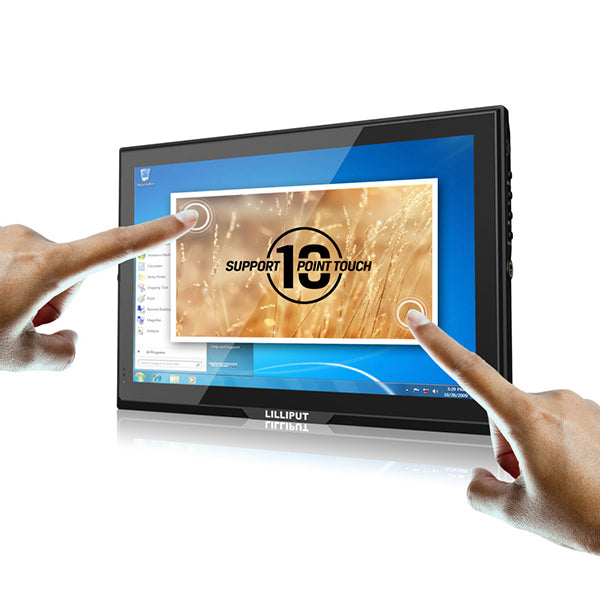

10-point PCAP touch screen optional
1x HDMI, 1x VGA, 1x Composite, versatile inputs
DC 7 to 24V, ≤10 W; 0°C to 50°C operating
250 x 170 x 32.3 mm; 560 g; I/O control

Display

Screen size	10.1 inch
Aspect ratio	16:10
Native resolution	1280 x 800
Panel type	LCD
Brightness	350 cd/m²
Contrast	800:1
Viewing angle	170°/170° (H/V)
Touch screen	10-point PCAP (optional)

Connections

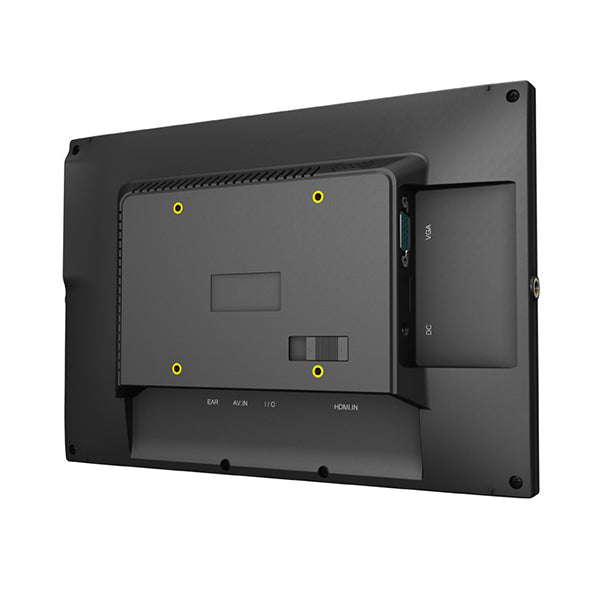

Video inputs	1x HDMI, 1x VGA, 1x Composite
Audio	1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit)

Video Standards

HDMI	1080p 50/60, 1080i 50/60, 720p 50/60
VGA	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Composite	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60

Operational Features

Markers — Safety marker	80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker	On/Off

Power

Input voltage	DC 7 to 24V
Power consumption	≤10 W

Environmental

Operating temperature	0°C to 50°C
Storage temperature	-20°C to 60°C

Mechanical

Dimensions	250 x 170 x 32.3 mm
Weight	560 g

Accessories

Included	12V DC Adapter, Remote Control, HDMI A-A Cable, VGA Cable, Composite Cable, I/O Control Line, Manual
Optional	Car Power Adapter, HDMI to DVI Cable (with touch), VESA Folding Bracket, Gimbal bracket, VESA Rail Slot, 2x Battery Plate, VESA Battery Plate
