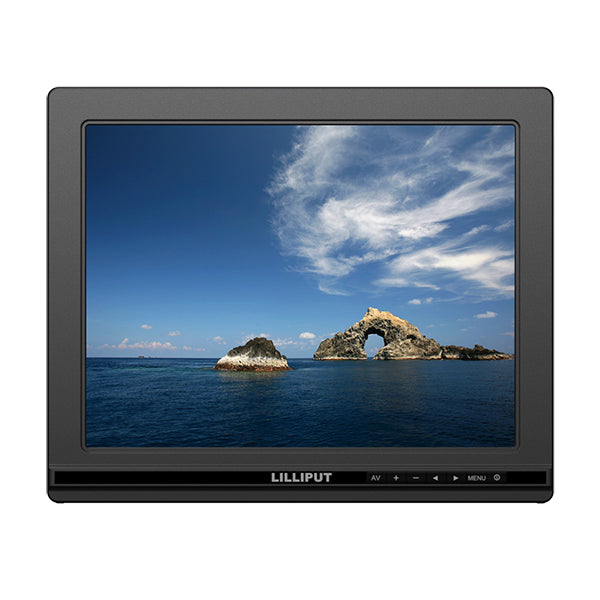

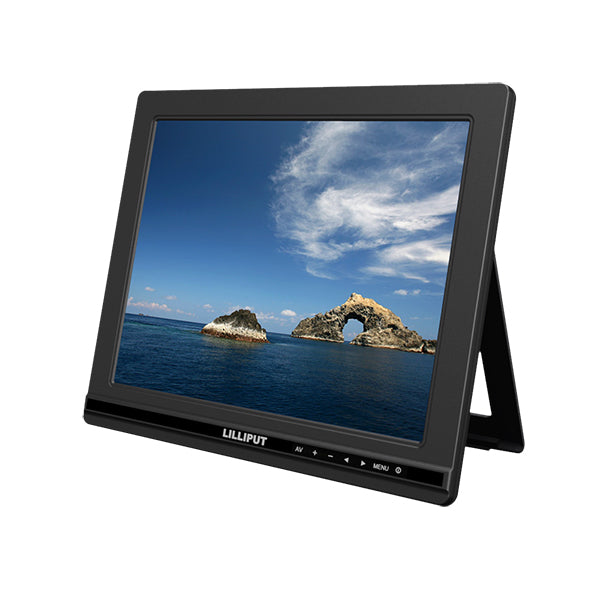

Lilliput FA1000 · 9.7 inch monitor
Lilliput FA1000 · 9.7 inch monitor
Interactive 9.7 inch display for commercial and industrial environments. 1024 x 768, 420 cd/m². HDMI, VGA, 2x Composite. DC 7 to 24V, ≤10 W. Resistive touch optional. For kiosks, control panels, and industrial applications.
- 9.7 inch 1024 x 768 LCD, 420 cd/m², 900:1 contrast, 4:3
- 5-wire resistive touch screen optional
- 1x HDMI, 1x VGA, 2x Composite, versatile inputs
- DC 7 to 24V, ≤10 W; -20°C to 60°C operating
- 234.4 x 192.5 x 29 mm; 625 g; VESA
Display
| Screen size | 9.7 inch |
|---|---|
| Aspect ratio | 4:3 |
| Native resolution | 1024 x 768 |
| Panel type | LCD |
| Brightness | 420 cd/m² |
| Contrast | 900:1 |
| Viewing angle | 160°/174° (H/V) |
| Touch screen | 5-wire resistive (optional) |
Connections
| Video inputs | 1x HDMI, 1x VGA, 2x Composite |
|---|---|
| Audio | 1x Built-in speaker, 3.5 mm ear jack |
| Additional connections | 1x Mini USB (for touch) (optional) |
Video Standards
| HDMI | 1080p 50/60, 1080i 50/60, 720p 50/60 |
|---|---|
| VGA | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| Composite | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
Operational Features
Power
| Input voltage | DC 7 to 24V |
|---|---|
| Power consumption | ≤10 W |
Environmental
| Operating temperature | -20°C to 60°C |
|---|---|
| Storage temperature | -30°C to 70°C |
Mechanical
| Dimensions | 234.4 x 192.5 x 29 mm |
|---|---|
| Weight | 625 g |

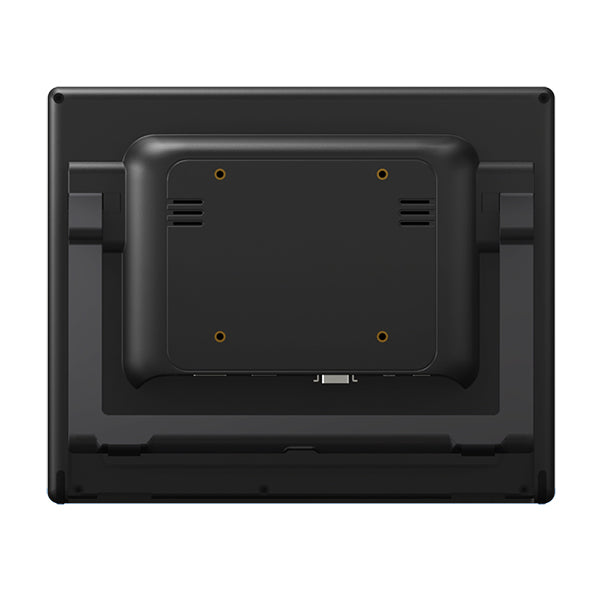

Mounting
| VESA mount | 75 x 75 mm |
|---|
Accessories
| Included | 12V DC Adapter, Remote Control, HDMI A-C Cable, HDMI to DVI Cable, SKS Cable to VGA & RCA, CD Driver, Manual |
|---|---|
| Optional | VESA Folding Bracket, VESA Rail Slot |
