10.1 inch 1000 cd/m² industrial panel PC with 1280 x 800 PCAP touch, RK3568 quad-core ARM, Linux Debian 11, IP65 front panel, wide DC 9 to 36 V input, and CAN, GPIO, and serial I/O for vehicle and factory HMI use.
RK3568 ARM Cortex-A55 quad-core 2.0 GHz; ARM G52 2EE GPU; Linux Debian 11 or Windows 11 (4 GB)
2 GB DDR4 + 16 GB eMMC (default) or 4 GB DDR4 + 64 GB eMMC (optional); Micro SD up to 1 TB

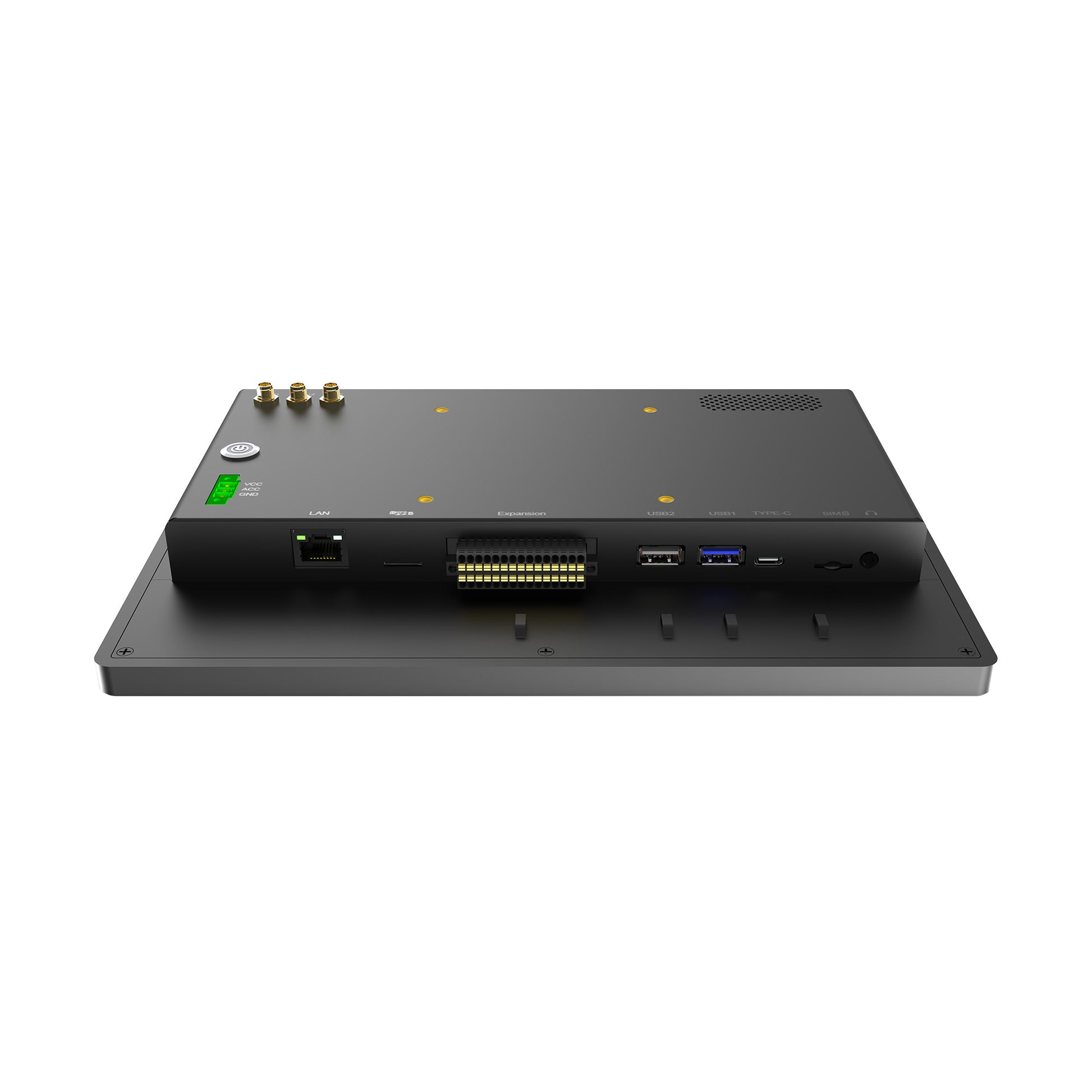

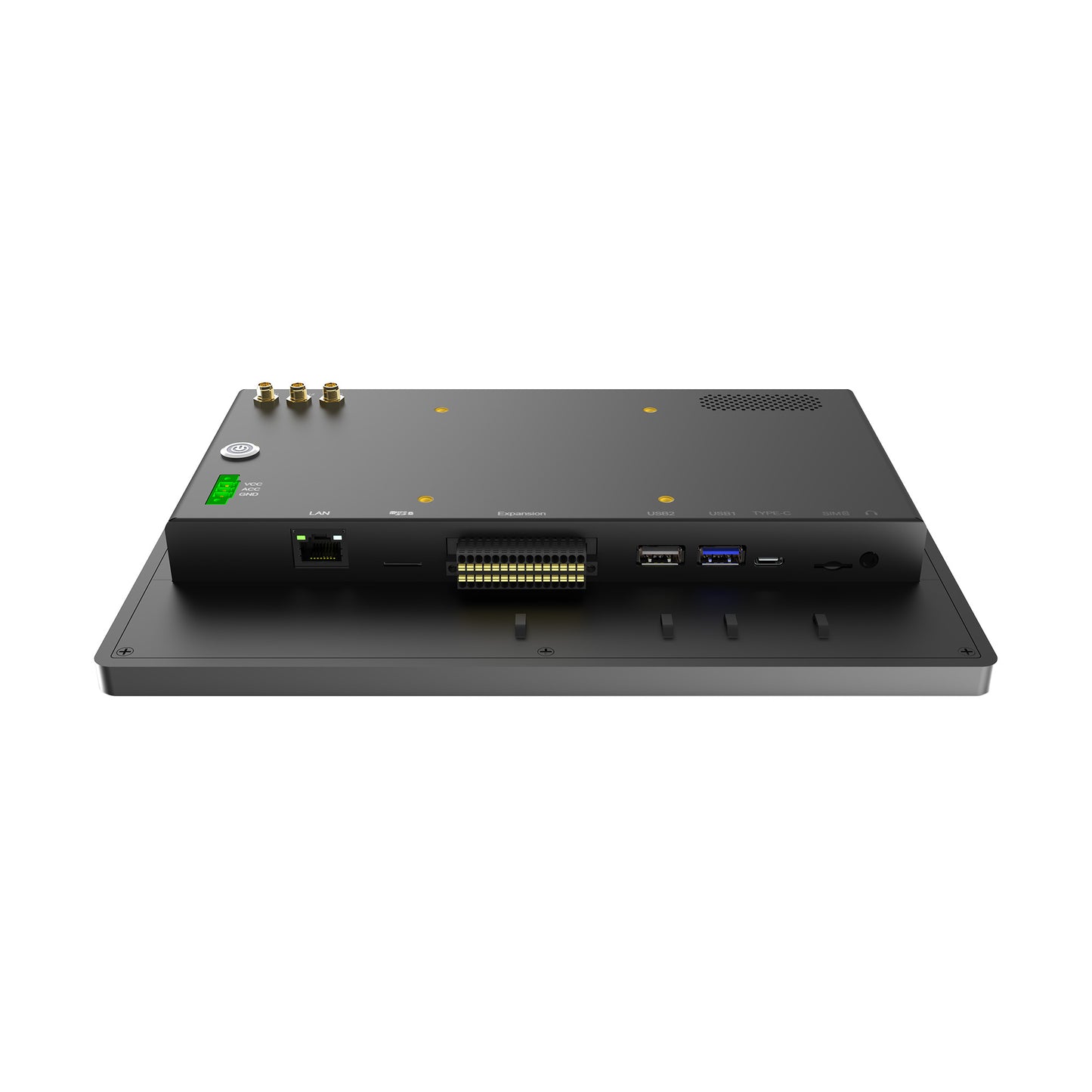

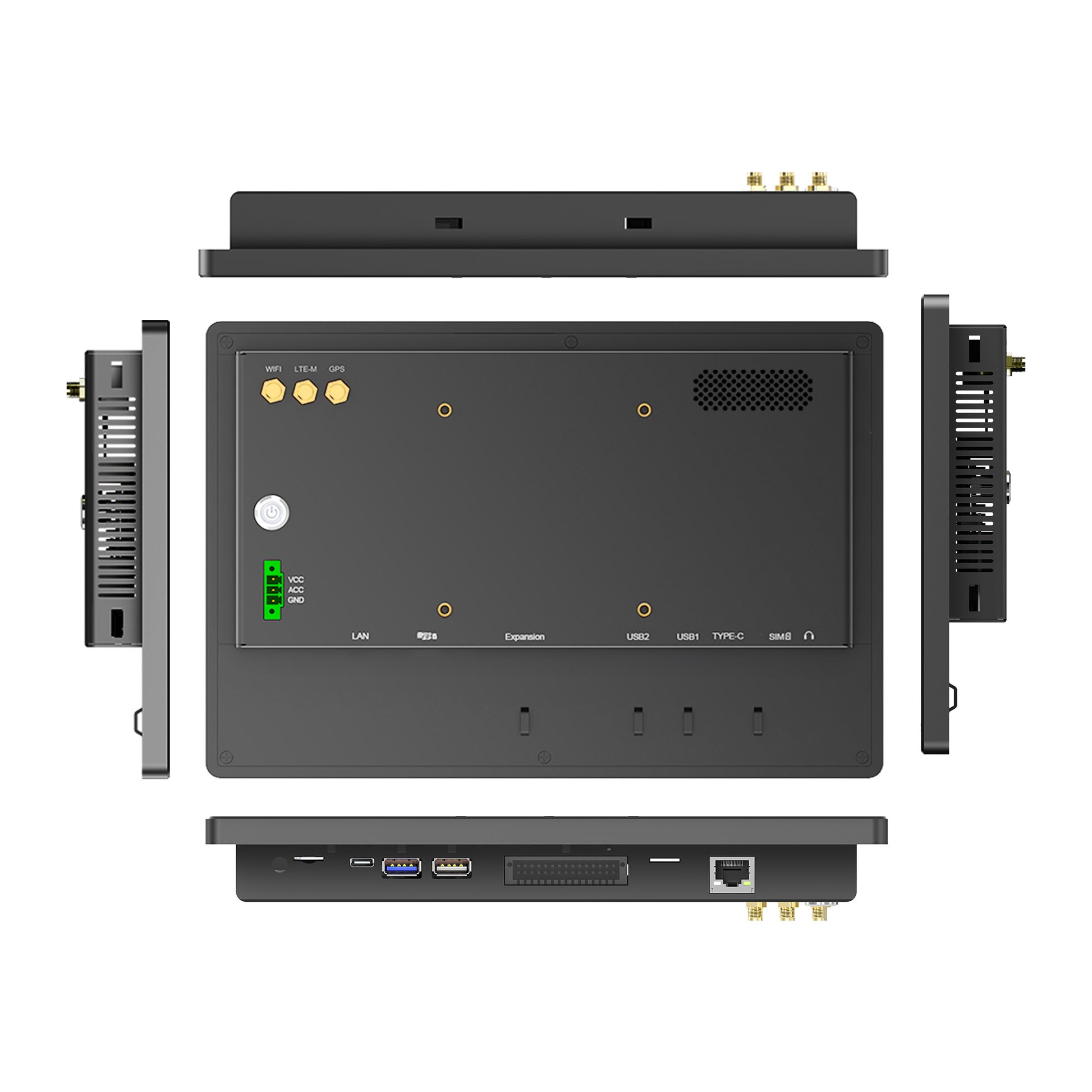

Gigabit LAN (PoE/PoE+ optional), 2x RS232, 2x RS485, 1x RS422, 2x CAN 2.0b, 4x GPIO, 1x SIM slot
Optional Wi-Fi, Bluetooth, 3G/4G cellular, and GNSS; optional 5 MP front camera

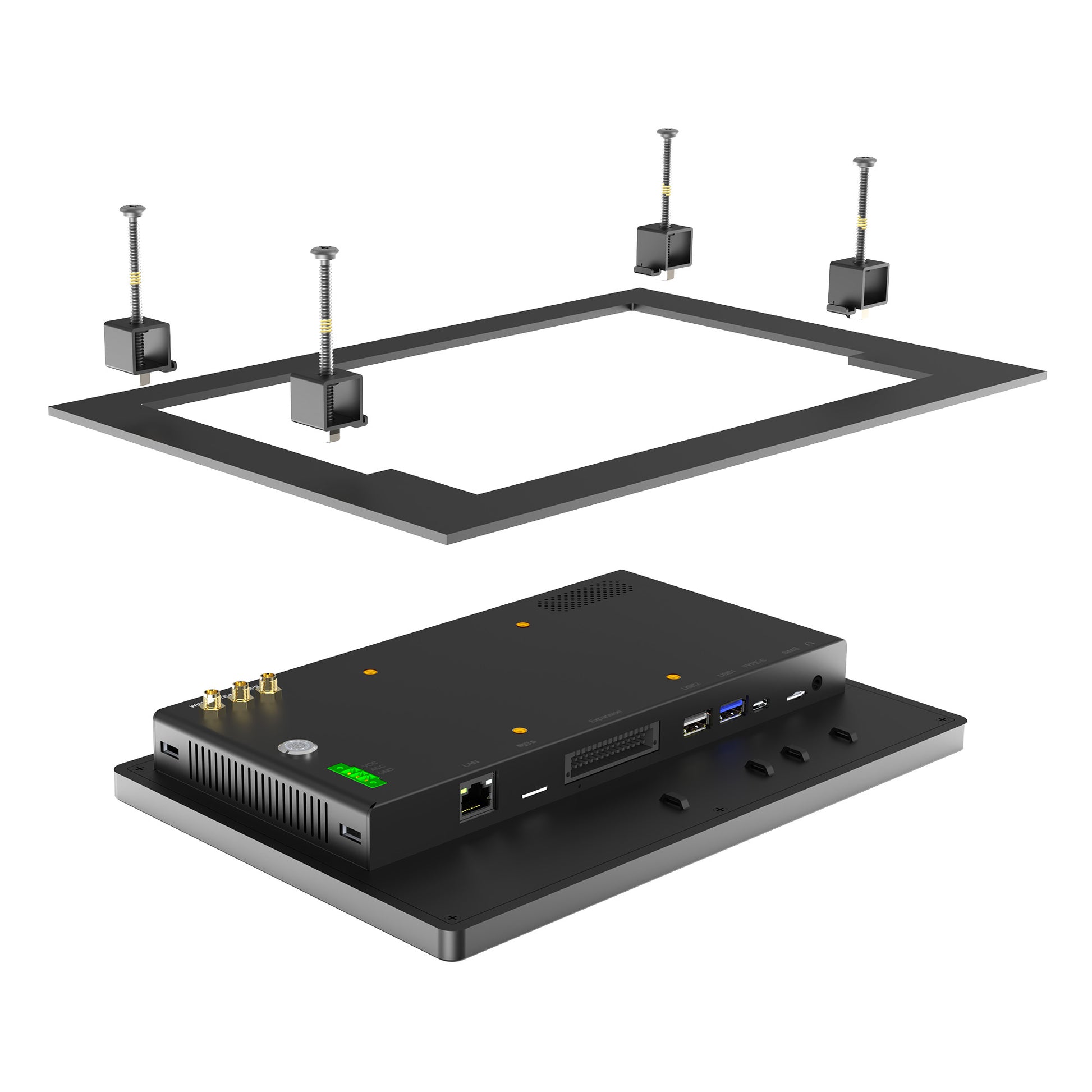

IP65 front panel (NEMA 4); DC 9 to 36 V (ISO 7637-II); -10°C to 60°C operating range

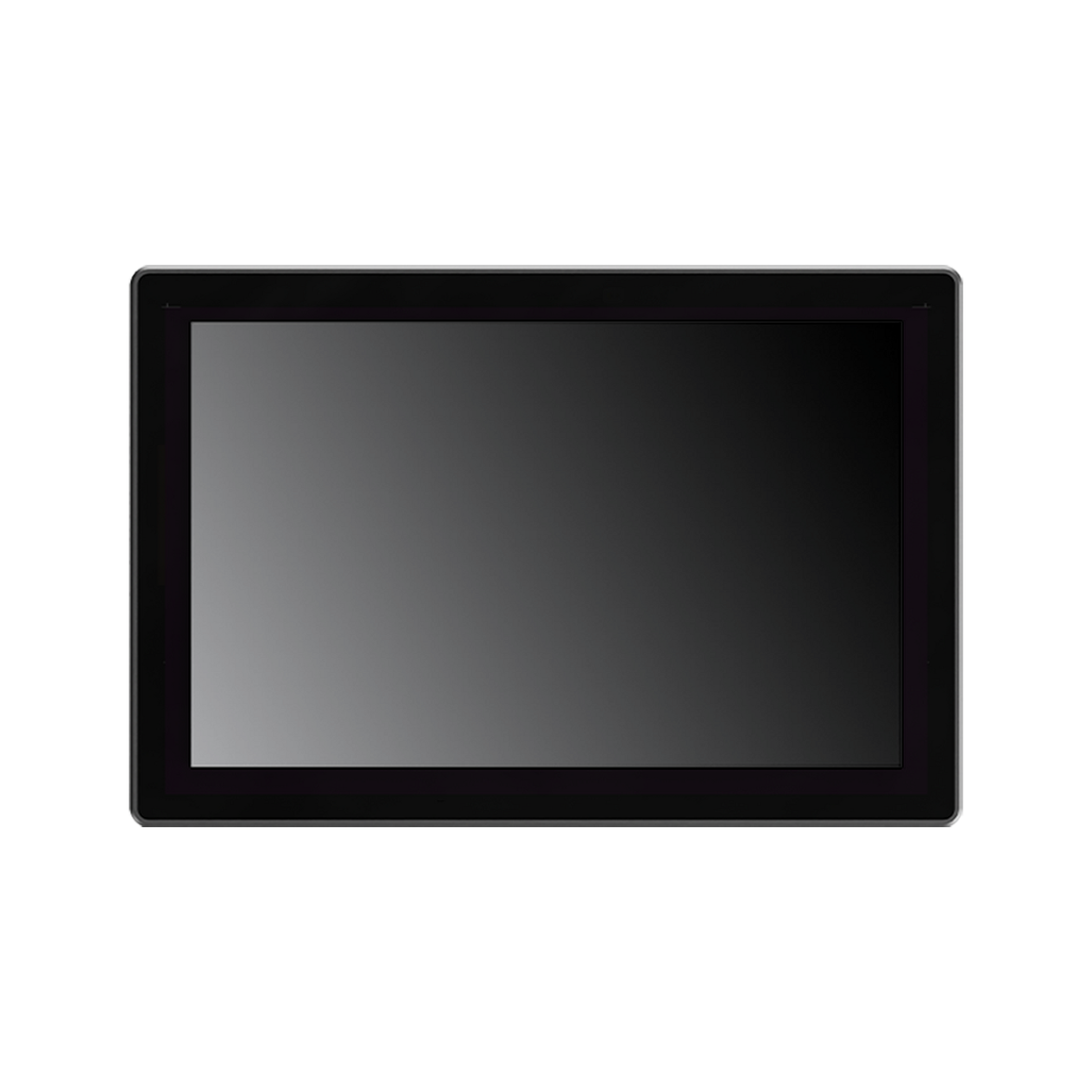

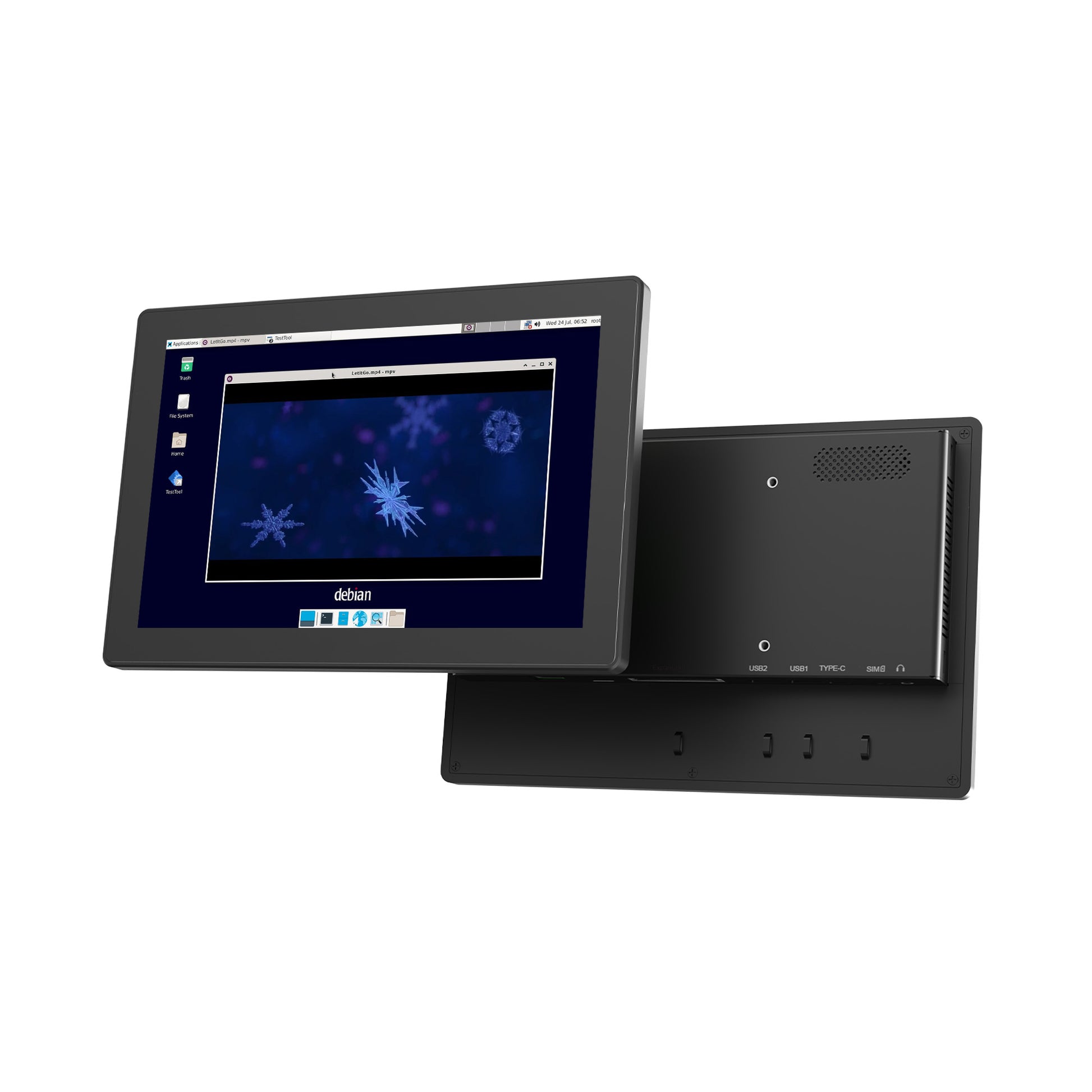

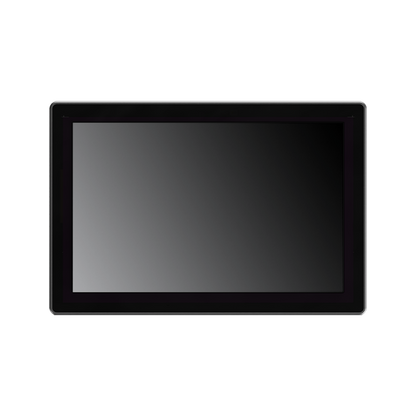

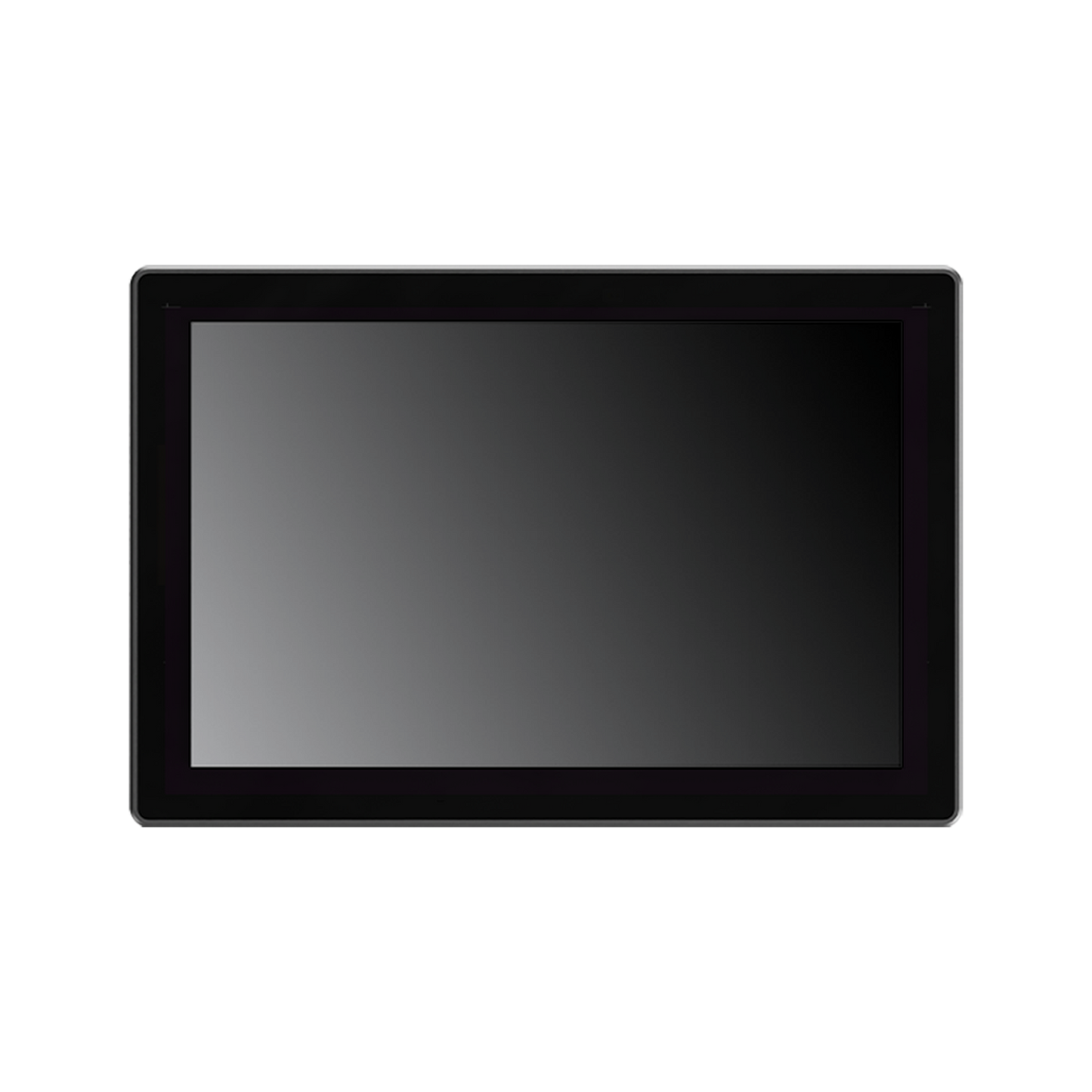

The Lilliput PC-1011RL is a 10.1" Panel PC with a highly adaptable connection set, 1000 NIT brightness, and a whole host of other features. It has many versatile features - an optional 4G Cellular Network connection, a GPS / GLONASS connection, as well as the option for industry standard Wi-Fi and Bluetooth connectivity. It's been designed to be as adaptable as possible to a massive amount of usage cases - some of these are tried and tested uses such as Queuing Check-in Systems, Smart Home Control panels, Digital Signage for Retail, as for potential installation into factory systems and control rooms.
Display
Screen size
10.1 inch
Aspect ratio
16:10
Native resolution
1280 x 800
Panel type
IPS
Brightness
1000 cd/m²
Contrast
1000:1
Viewing angle
170°/170° (H/V)
Touch screen
10-point PCAP
System
CPU
RK3568 ARM Cortex-A55 quad-core 2.0 GHz
GPU
ARM G52 2EE
Operating system
Linux Debian 11 (Kernel 5.10) / Windows 11 (4 GB optional)
