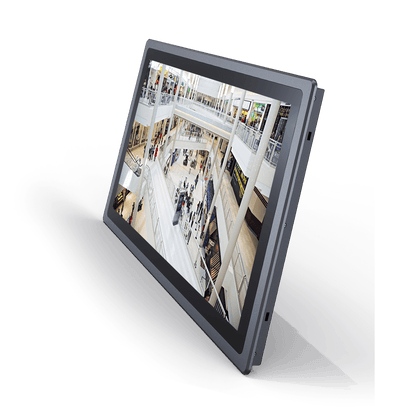

21.5 inch 1000 cd/m² industrial panel PC with 1920 x 1080 PCAP touch, Intel processor options from Celeron to Core i7, Windows or Ubuntu, and IP65 front panel for production-line and factory HMI use.
21.5 inch 1920 x 1080 LCD, 1000 cd/m² high-brightness
10-point PCAP touch
Built-to-order Intel platforms: Celeron J4125, J6412, or Core i3/i5/i7
Configurable RAM up to 64 GB and storage up to 1 TB (platform dependent)

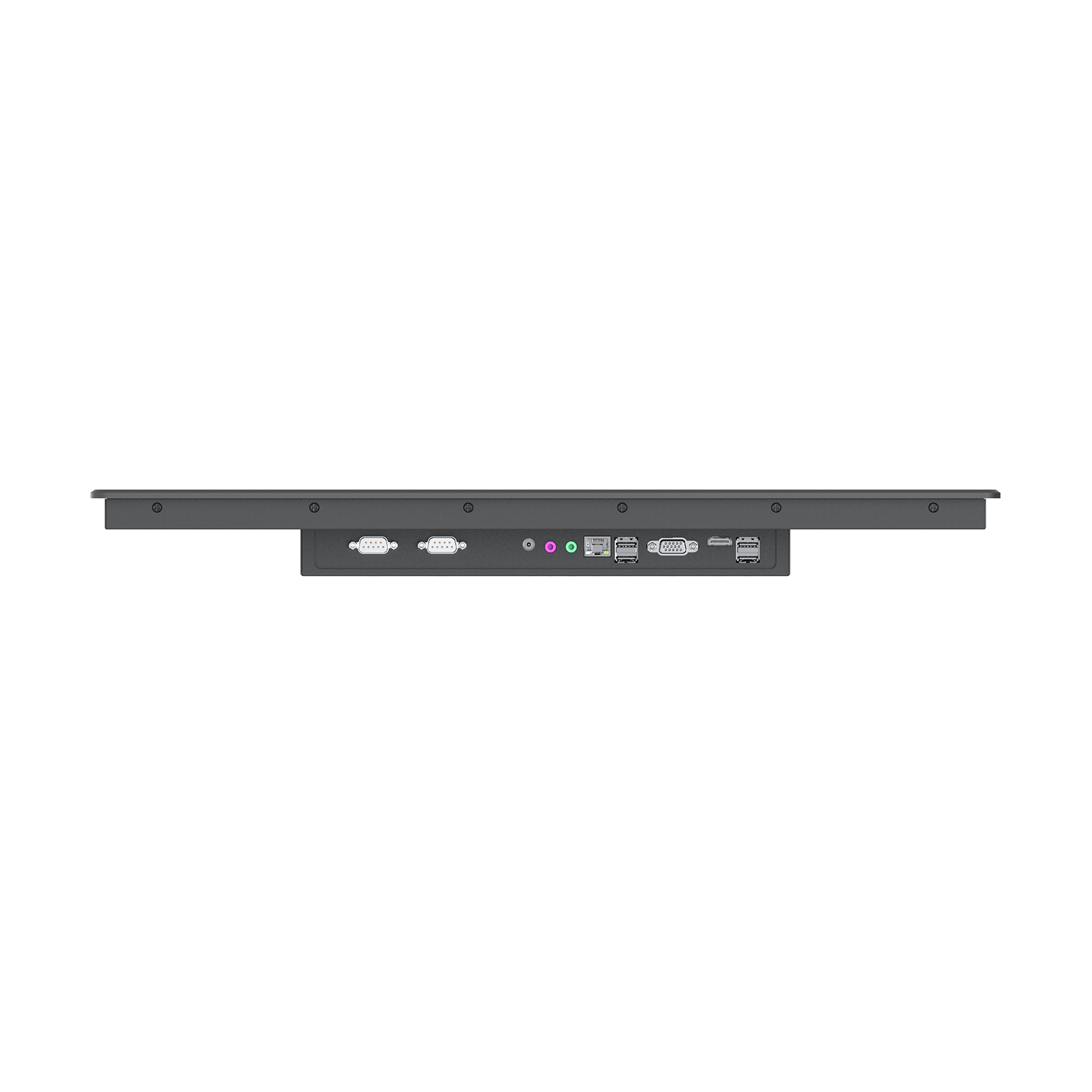

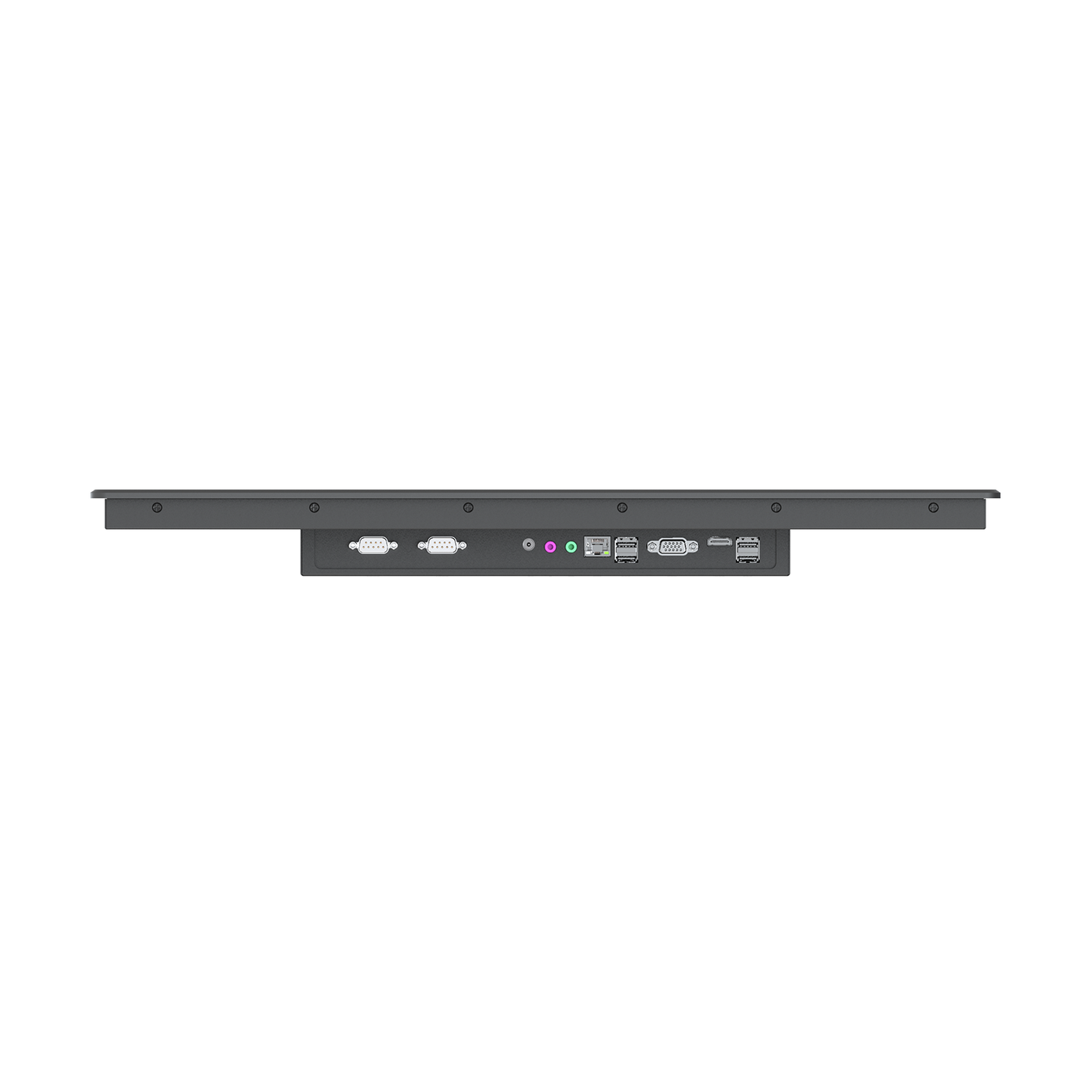

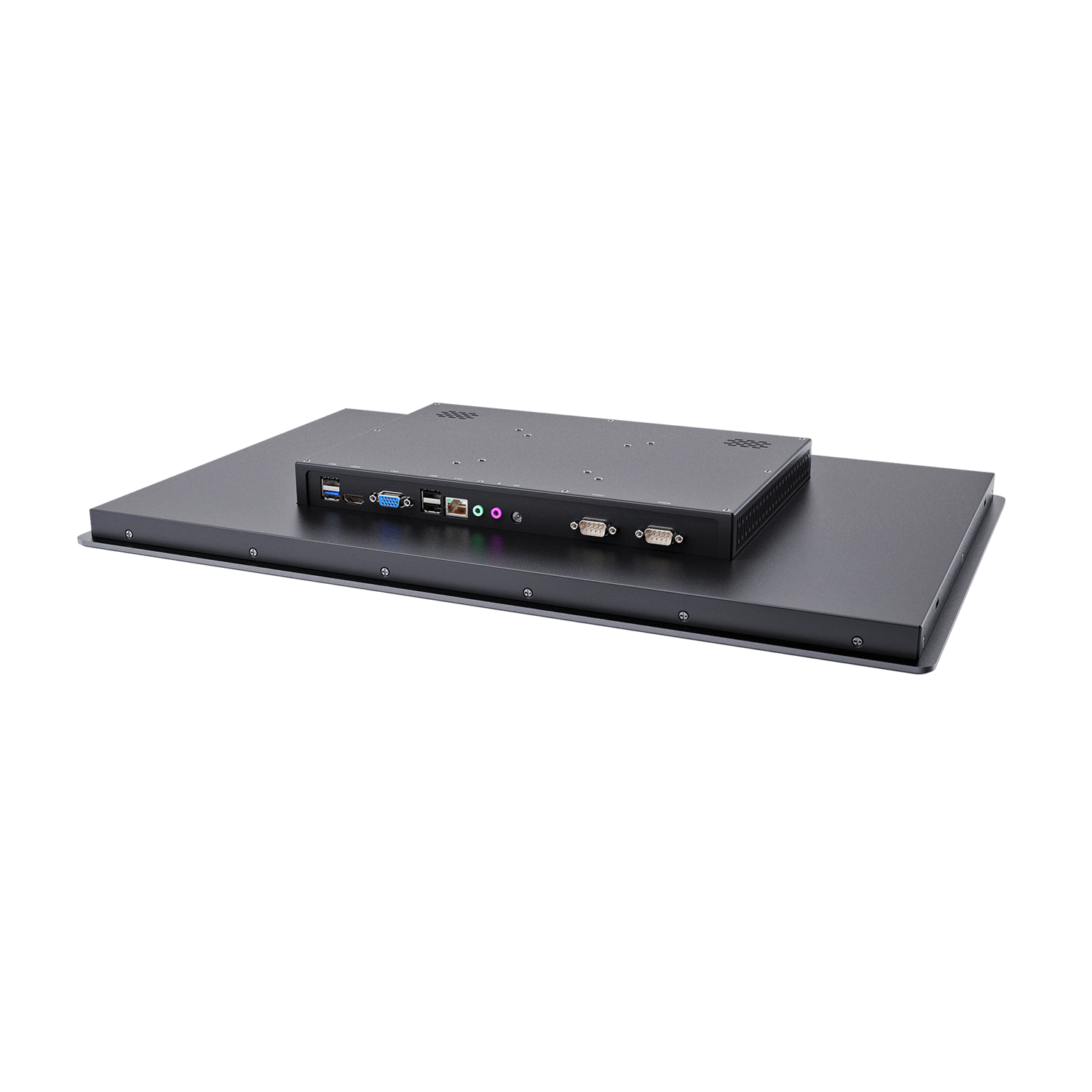

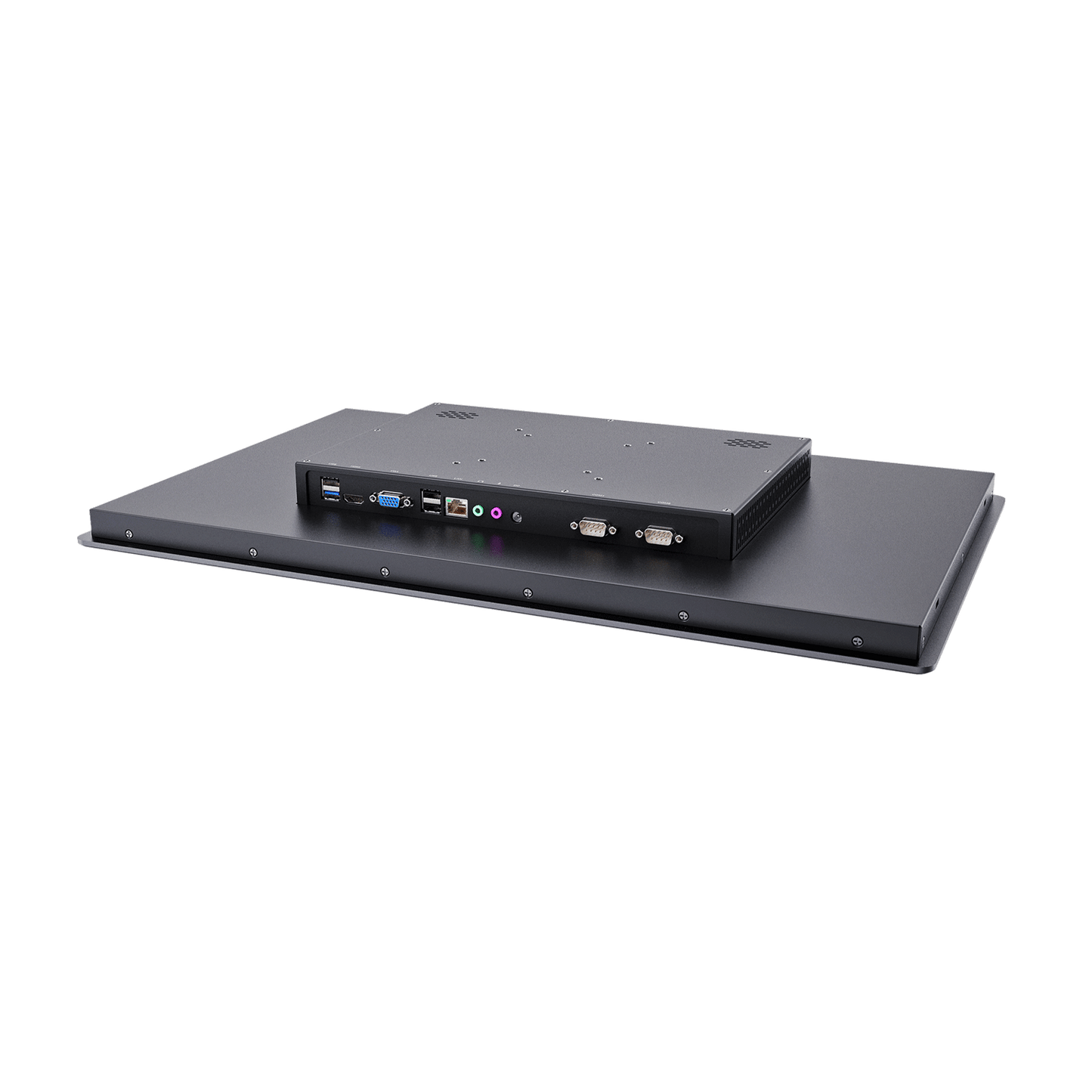

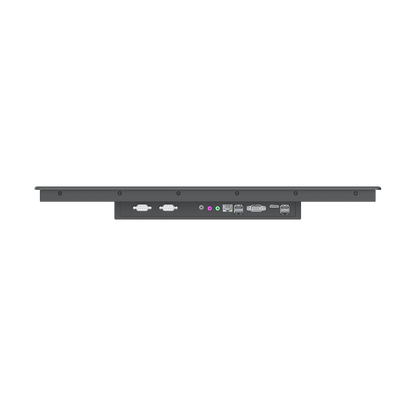

HDMI, VGA, Gigabit LAN, RS232/RS422/RS485, USB, and optional SIM and cellular (Core platforms)
IP65 front panel (water and dust resistant); -10°C to 60°C operating range

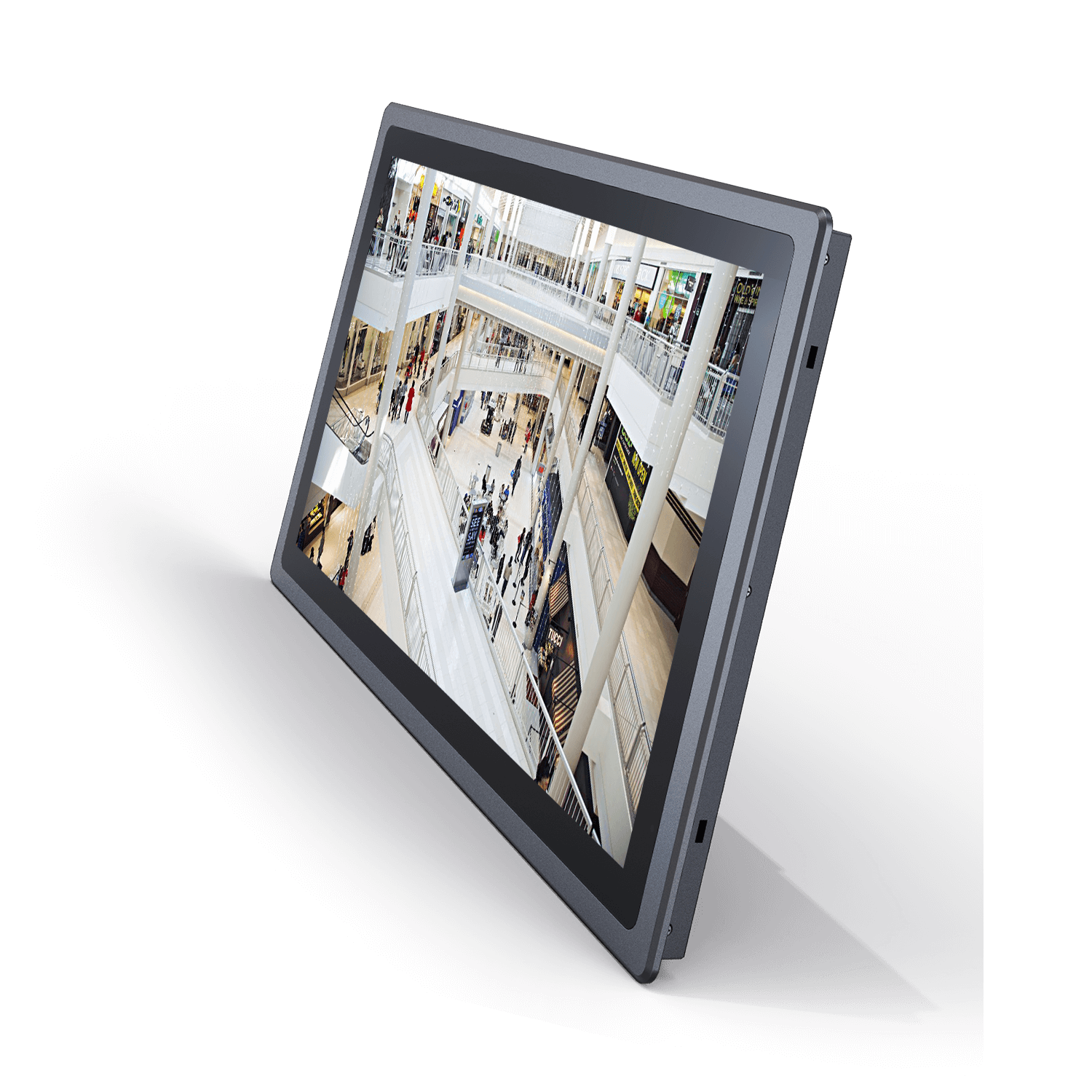

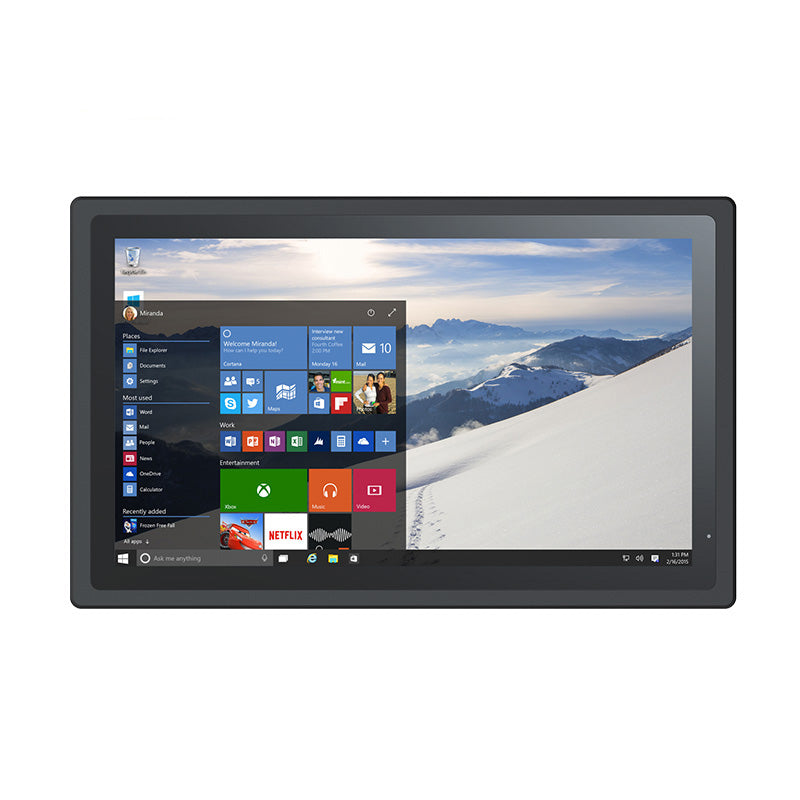

Sporting a 21.5" touch screen Panel PC with a high brightness screen panel, IP65 Water / Dust intrusion protection, and Windows 11 / Linux Ubuntu OS compatibility, the PC-2150 has a rich and powerful interface design allowing for integration into a great many different installation environments.
Display
Screen size
21.5 inch
Aspect ratio
16:9
Native resolution
1920 x 1080
Panel type
IPS
Brightness
1000 cd/m²
Contrast
1000:1
Viewing angle
178°/178° (H/V)
Touch screen
10-point PCAP
System
CPU
Intel Celeron J4125, J6412, or Intel Core i3/i5/i7 (built to order)
GPU
Intel UHD Graphics
Operating system
Windows 11 / Ubuntu (optional)
RAM
4 GB default; up to 8 GB (J4125), 16 GB (J6412), or 64 GB (Core)
Storage
120 GB default; mSATA (Celeron) or M.2-SATA (Core), up to 1 TB
