10.1 inch 1024 x 600 LCD, 250 cd/m², 500:1 contrast, 16:10
1x HDMI, 1x VGA, 1x Composite
4U rack height (177.8 mm), 19 inch standard rack mounting
DC 12V; 2.885 kg
4-wire resistive touch screen (optional)

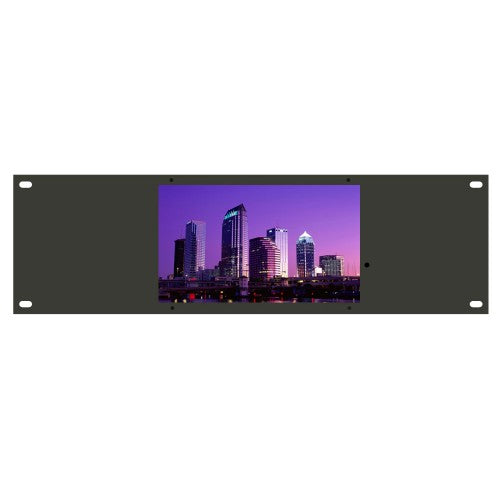

The Lilliput RM-1011 is a 4U 10.1 inch rackmount monitor for 19 inch cabinets. Built around the FA1011 1024 x 600 panel, it is suited to independent rack monitoring or connection to a rackmount computer, without a separate desktop display.
HDMI, VGA, and Composite inputs accept HD video for live events, studios, and industrial racks. The RM-1011-T option adds a 4-wire resistive touch screen for PC or SBC control in the same chassis.
Display
Screen size
10.1 inch
Aspect ratio
16:10
Native resolution
1024 x 600
Panel type
LCD
Brightness
250 cd/m²
Contrast
500:1
Viewing angle
140°/110° (H/V)
Touch screen
4-wire resistive (optional)
Connections
Video inputs
1x HDMI, 1x VGA, 1x Composite
Video Standards
HDMI
1080p 50/60, 1080i 50/60, 720p 50/60
Power
Input voltage
DC 12V
Mechanical
Weight
2.885 kg
Rack height
4U
Mounting
Rack mount
4U rack height (177.8 mm), 19 inch standard rack mounting
Accessories
Included
12V DC Adapter, HDMI Cable, SKS Connection Cable, VGA Cable
