Interactive 10.1 inch display for commercial and industrial environments. 1920 x 1200, 1500 cd/m². HDMI 1.4b, VGA, USB-C. DC 12 to 24V, ≤19 W. IP65 front panel. For kiosks, control panels, and industrial applications.

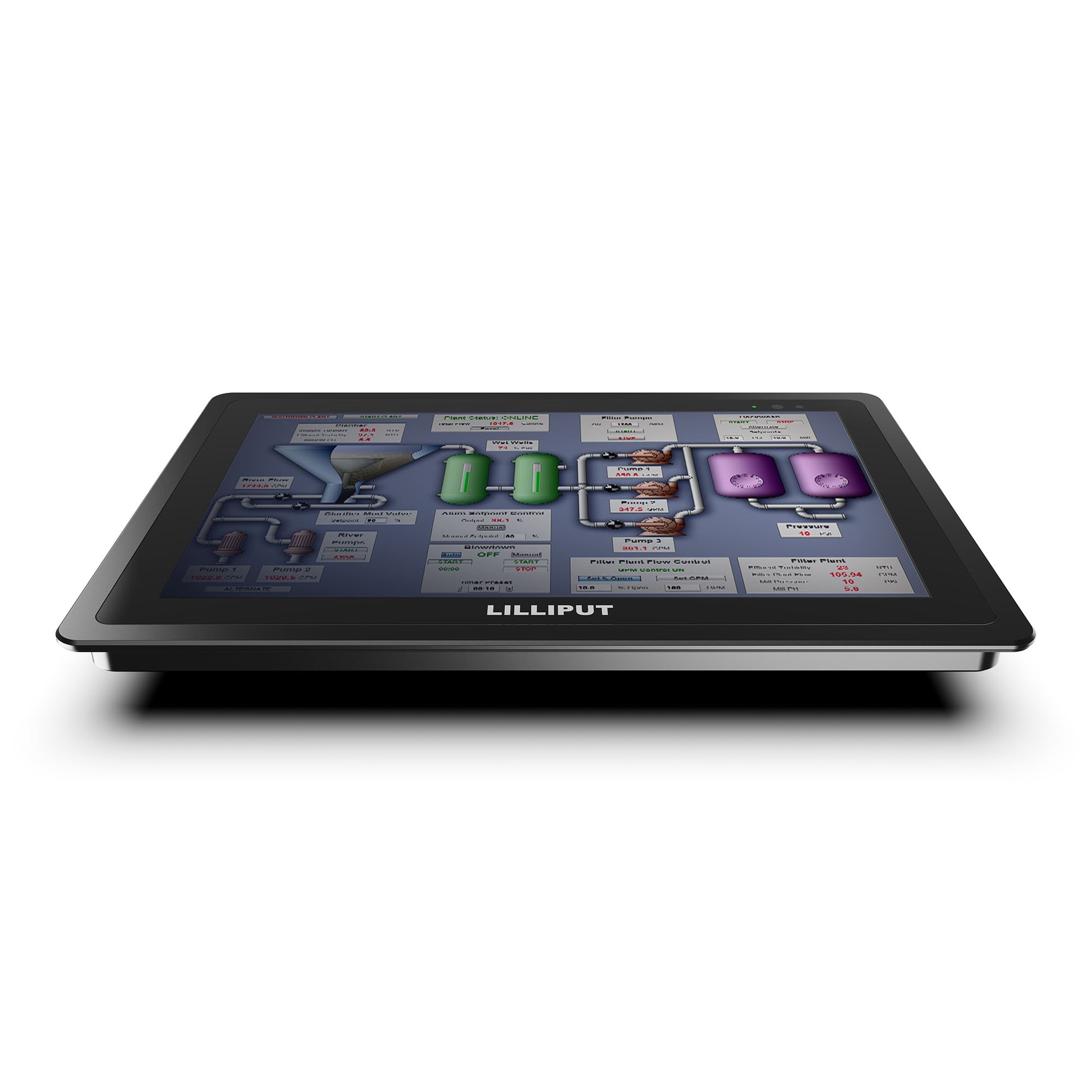

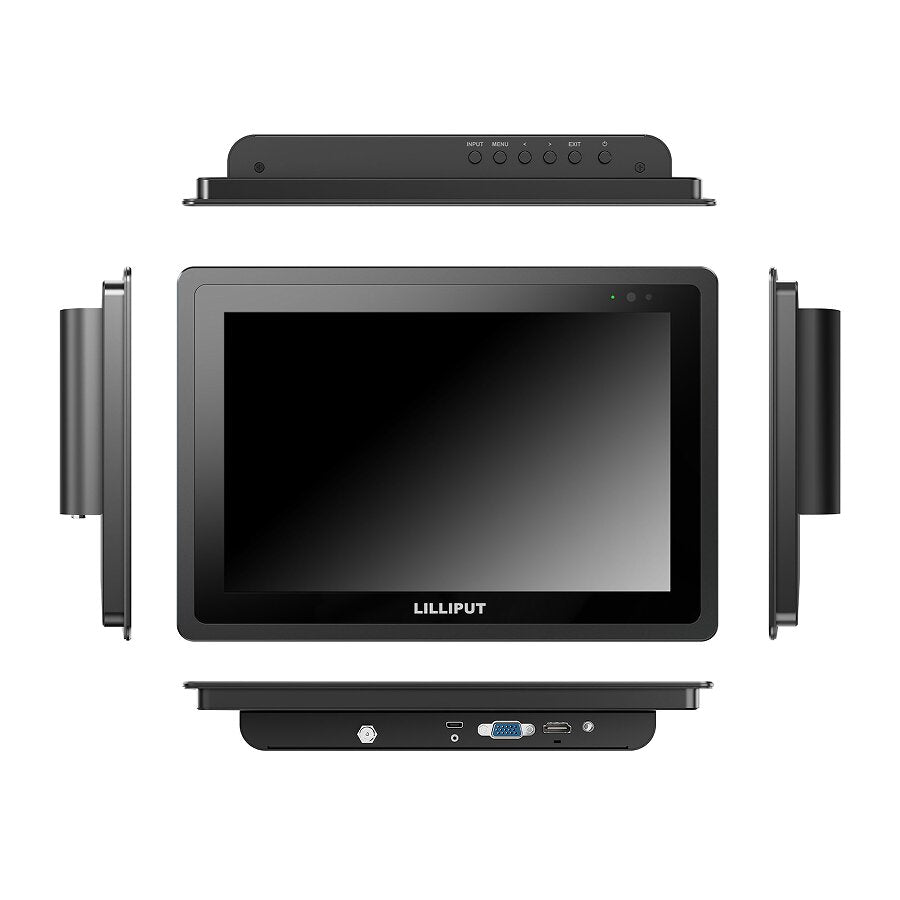

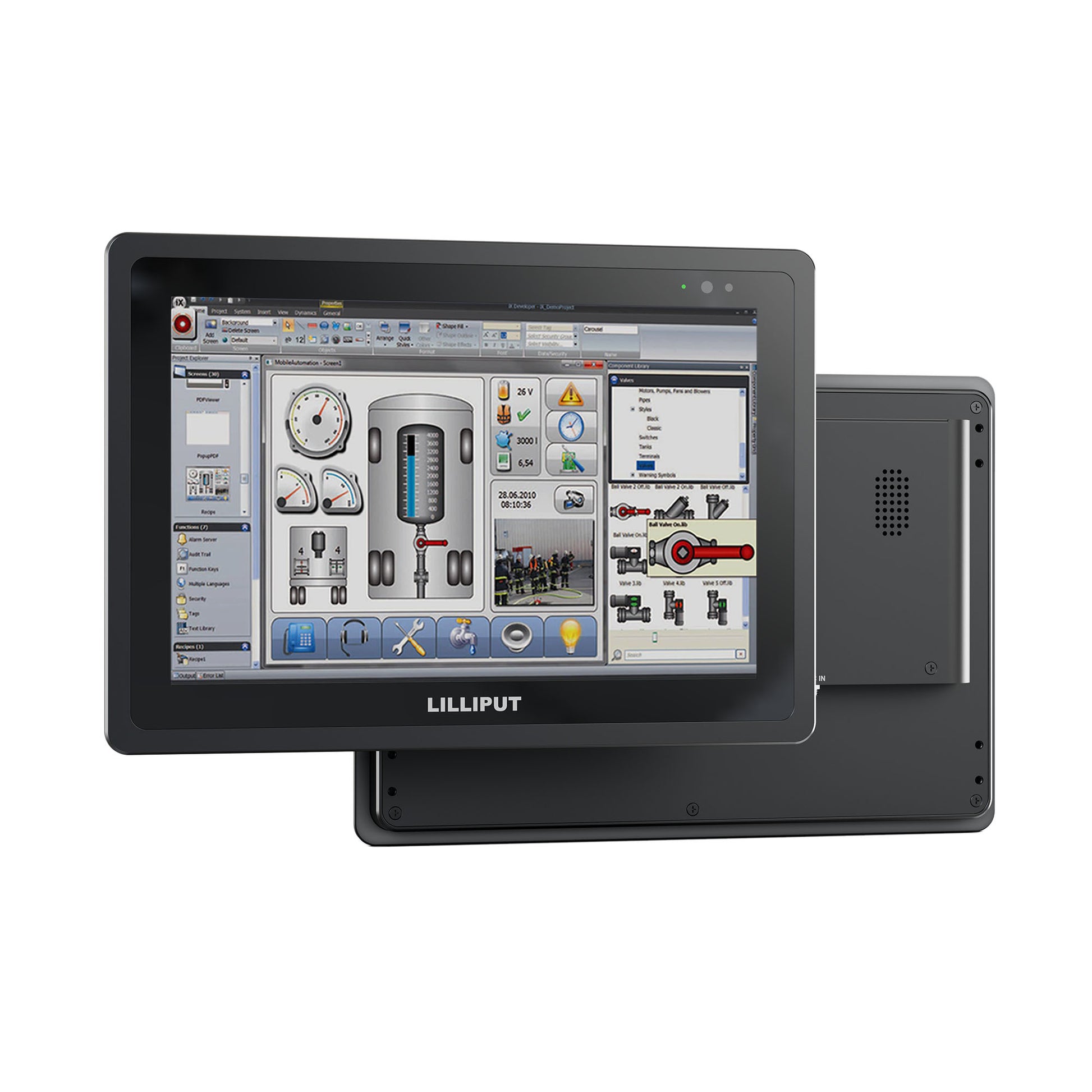

The Lilliput TK1019/C is a 10.1" interactive display with 1920 x 1200 and best-in-range 1500 cd/m² high brightness screen.
Suitable for a wide range of outdoor industrial and commercial applications, this specific model TK1019/C is ideal for use in a POI/POS, Kiosk, HMI or other industrial field-equipment setup. It can also be installed as either a desktop device for control centers, or as a second panel for a home PC system.

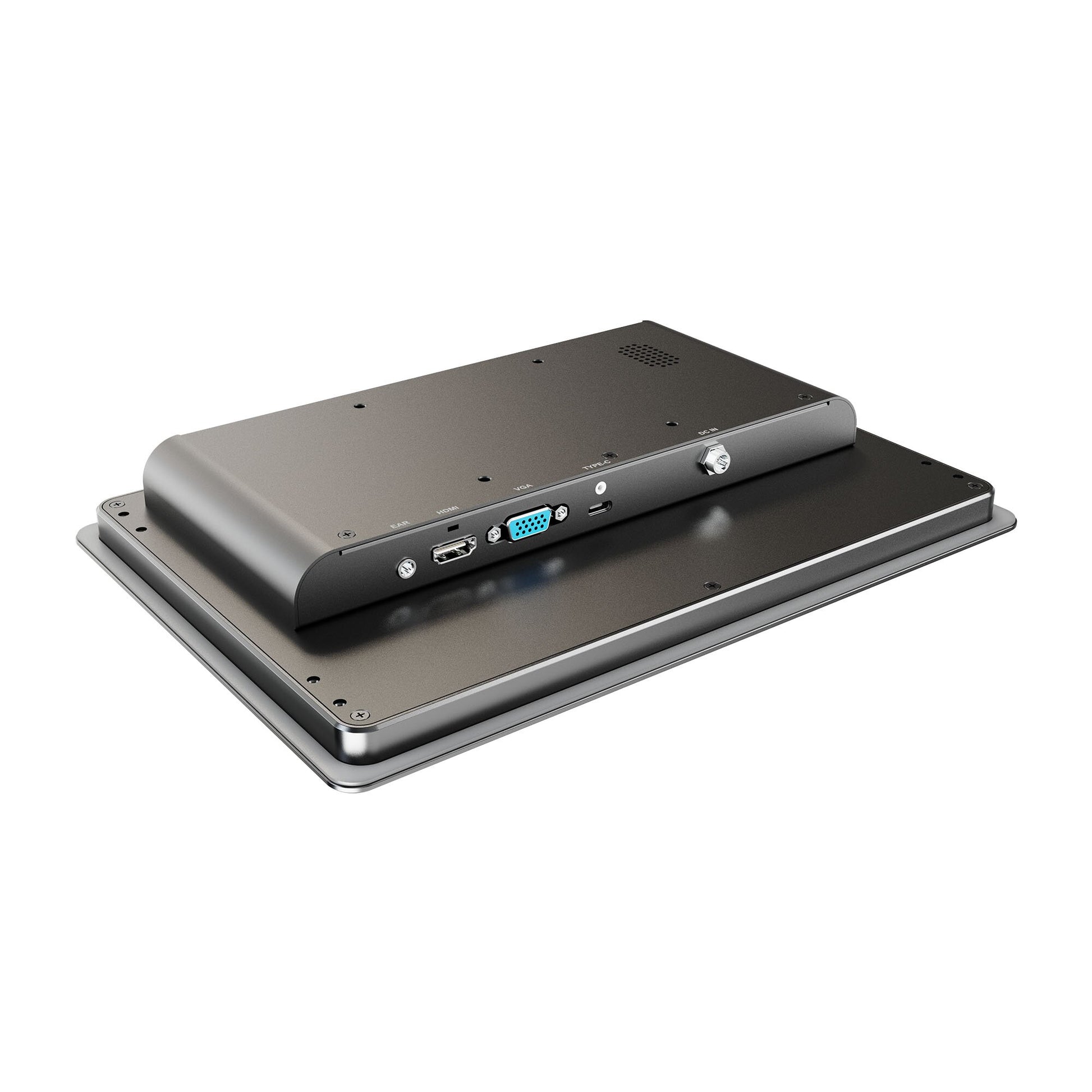

Meeting latest connectivity standards, it will connect by USB-C, as well as by HDMI. USB-C can accept up to a 4K 60Hz input; HDMI accepts up to 4K 30Hz. Need a legacy input? We have you covered with a VGA port, which will accept up to a 1080p signal.
Display
Screen size
10.1 inch
Aspect ratio
16:10
Native resolution
1920 x 1200
Panel type
LCD
Brightness
1500 cd/m²
Contrast
1000:1
Viewing angle
170°/170° (H/V)
LED lifetime
50,000 h
Touch screen
10-point PCAP (optional)
Connections
Video inputs
1x HDMI 1.4b, 1x VGA
Audio
1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit)
