Lilliput TK1040 · 10.4 inch 4:3 open frame monitor

Interactive 10.4 inch display for commercial and industrial environments. 800 x 600, 250 cd/m². HDMI, DVI, VGA, YPbPr, 2x Composite. DC 12V, ≤8 W. For kiosks, control panels, and industrial applications.

1 5

£185.00 exc VAT £222.00inc VAT

Key Attributes

Display resolution 800 x 600
Aspect ratio 4:3
Contrast 400:1
Touch screen Resistive
Brightness 250 cd/m²
Screen size 10 inch

Configuration

Monitor Touch Screen Monitor

View full details

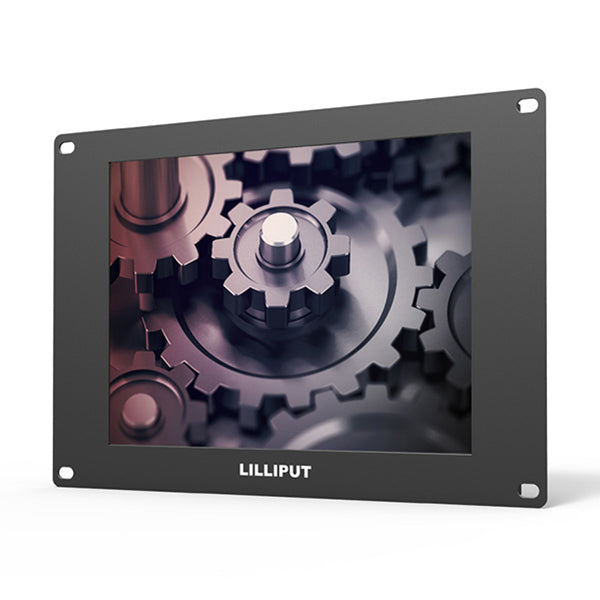

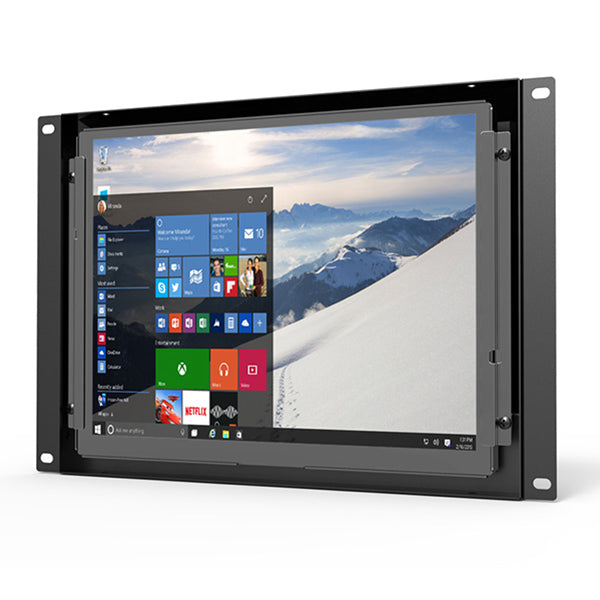

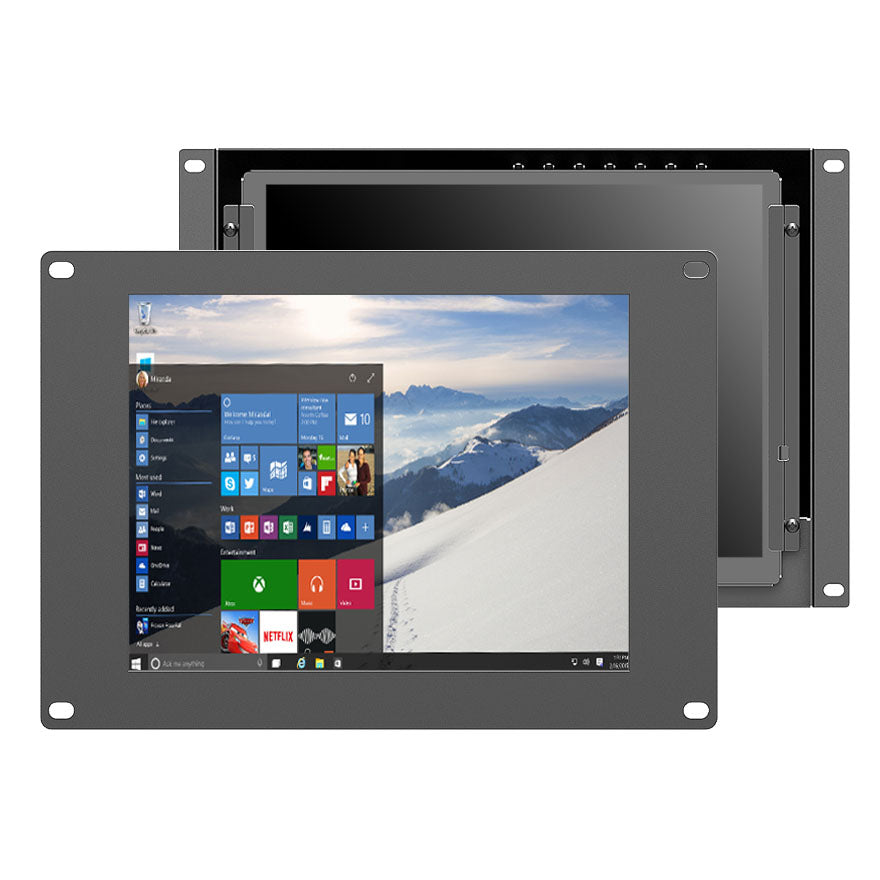

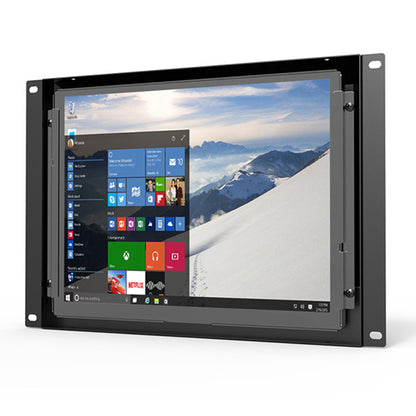

10.4 inch open frame touch screen monitor
5-wire resistive touch screen optional
800 x 600 LCD, 250 cd/m², 400:1 contrast, 4:3

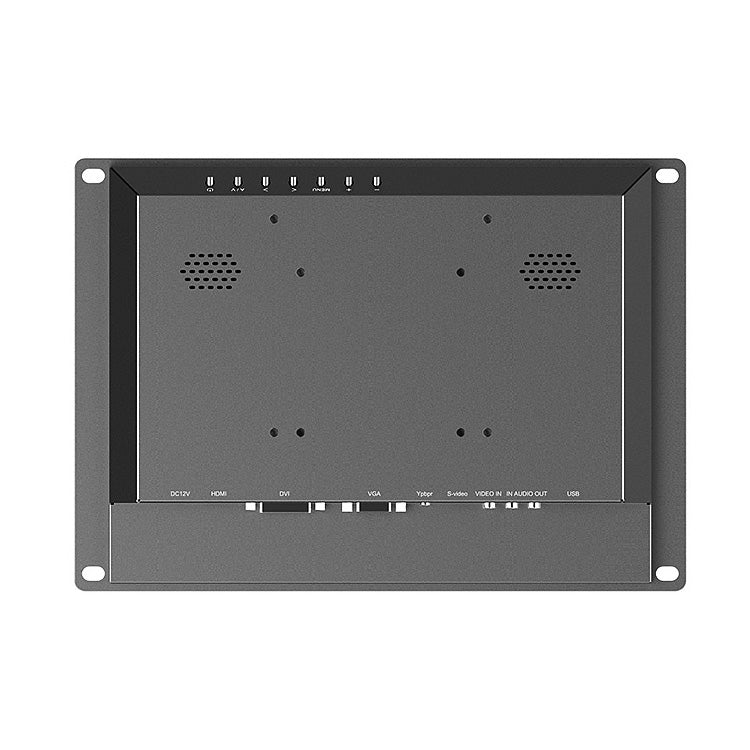

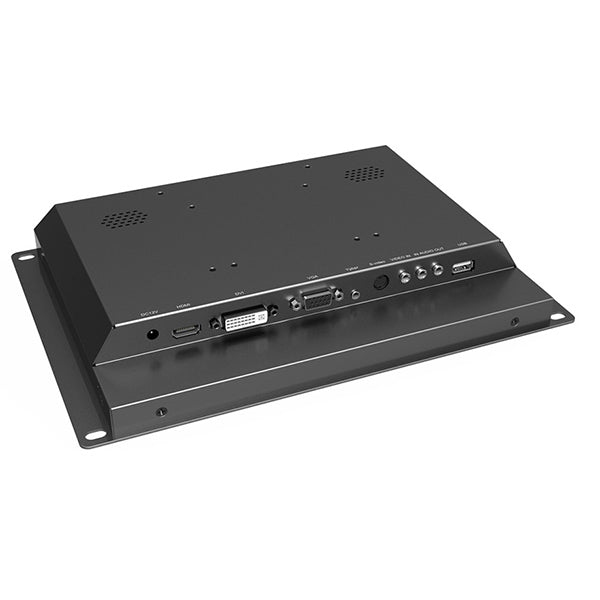

1x HDMI, 1x DVI, 1x VGA, 1x YPbPr, 2x Composite, versatile inputs
DC 12V, ≤8 W; -20°C to 60°C operating
286.8 x 202.8 x 38.8 mm; 1.7 kg

Display

Screen size	10.4 inch
Aspect ratio	4:3
Native resolution	800 x 600
Panel type	LCD
Brightness	250 cd/m²
Contrast	400:1
Viewing angle	130°/110° (H/V)
Touch screen	5-wire resistive (optional)

Connections

Video inputs	1x HDMI, 1x DVI, 1x VGA, 1x YPbPr, 2x Composite (RCA)
Audio	2x Built-in speakers, 3.5 mm ear jack (2ch 48kHz 24-bit)

Video Standards

HDMI	1080p 50/60, 1080i 50/60, 720p 50/60

Operational Features

Power

Input voltage	DC 12V
Power consumption	≤8 W

Environmental

Operating temperature	-20°C to 60°C
Storage temperature	-30°C to 70°C

Mechanical

Dimensions	286.8 x 202.8 x 38.8 mm
Weight	1.7 kg

Accessories

Included	12V DC Adapter, HDMI A-A Cable, VGA Cable, Audio Cable, Composite Cable, CD Driver, Manual
Optional	Open Frame Bracket, VESA Folding Bracket, DVI Cable
