Interactive 15 inch display for commercial and industrial environments. 1024 x 768, 1000 cd/m². HDMI, DVI, VGA, Composite. DC 12V, ≤15 W. Panel or open frame mounting. For kiosks, control panels, and industrial applications.
402 x 289 x 45.5 mm (panel); 400 x 279 x 43.5 mm (open frame); 3.2 kg

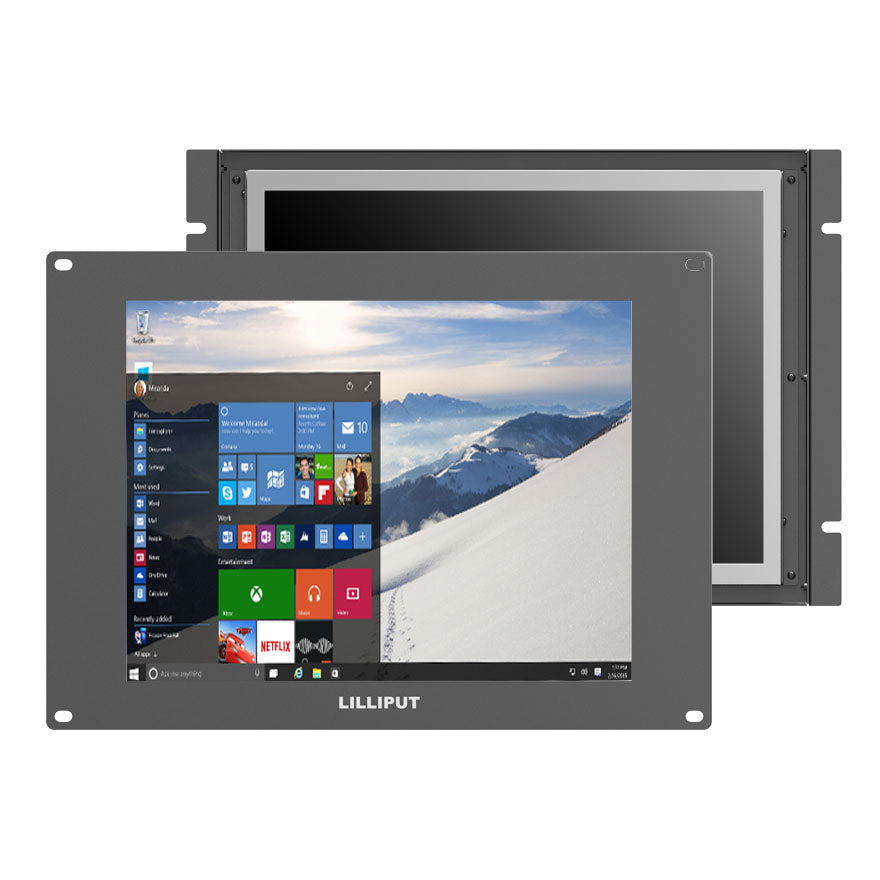

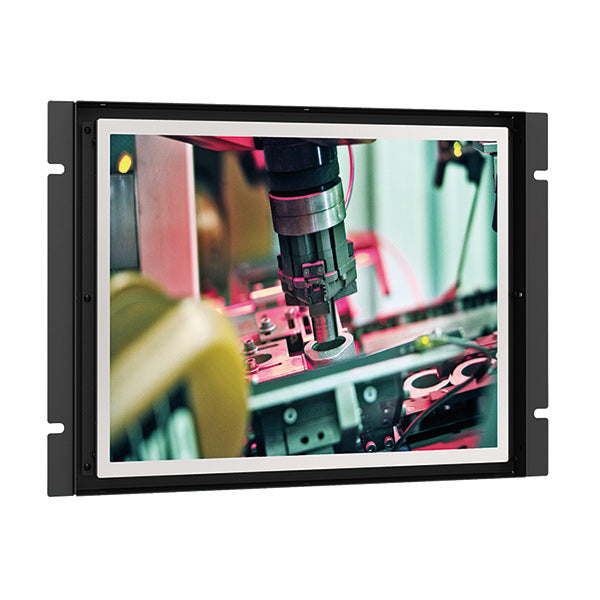

The Lilliput TK1500 monitor is a 15" 4:3 metal open framed LCD monitor with HDMI, VGA and composite video input. Designed for integration into custom projects and industrial applications - this is the non touch version of a versatile and solid wall mount monitor.

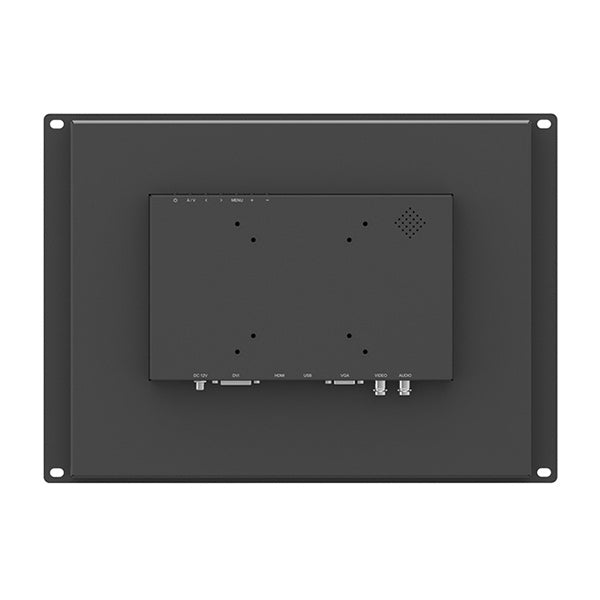

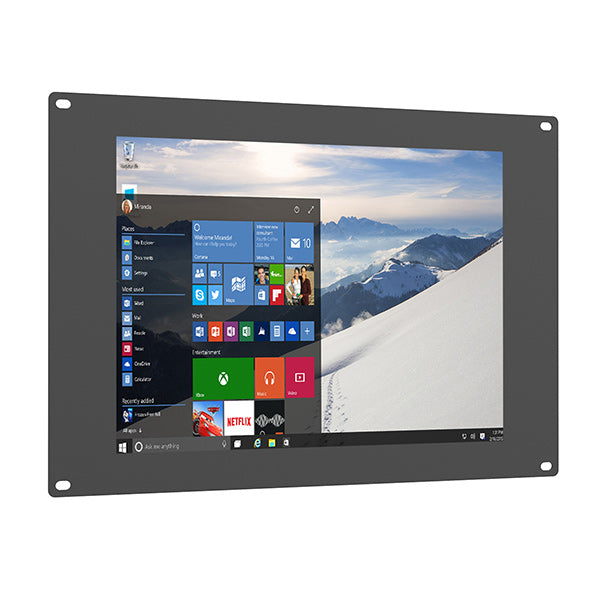

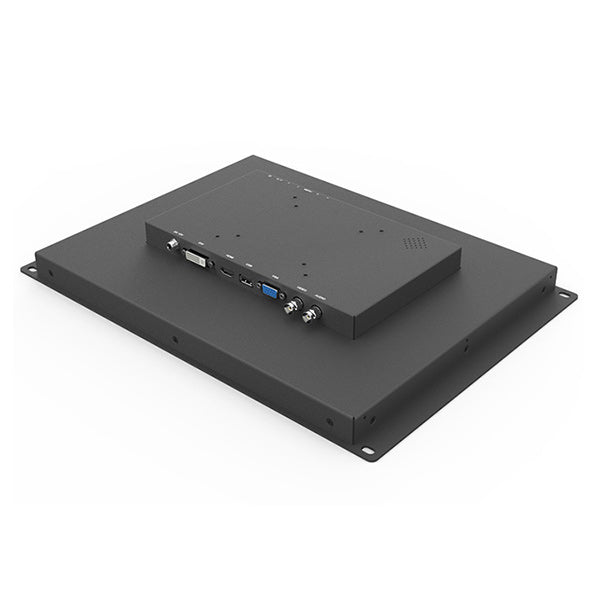

The TK1500 is mounted within a mild steel frame giving a rugged feel to this monitor. The unit can be flush mounted to a surface using the mounting points on the front, or mounted more traditionally on a VESA 75 or VESA 100 mounting point on the rear.
The Lilliput TK1500-NP/C monitor has a high resolution LCD panel and is ideal for industrial integration into point of sales equipment, entertainment machines and ticketing machines. Suitable for all kinds of installation and custom projects.
Display
Screen size
15 inch
Aspect ratio
4:3
Native resolution
1024 x 768
Panel type
LCD
Brightness
1000 cd/m²
Contrast
1500:1
Viewing angle
45°/45° (L/R), 10°/90° (U/D)
Touch screen
5-wire resistive (optional)
Connections
Video inputs
1x HDMI, 1x DVI, 1x VGA, 1x Composite (RCA)
Audio
1x Built-in speaker
Video Standards
HDMI
1080p 50/60, 1080i 50/60, 720p 50/60
Operational Features
Power
Input voltage
DC 12V
Power consumption
≤15 W
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Mechanical
Dimensions
402 x 289 x 45.5 mm (panel)
Weight
3.2 kg
Open frame
400 x 279 x 43.5 mm (optional)
Accessories
Included
12V DC Adapter, HDMI A-A Cable, VGA Cable, Audio BNC Cable, Video BNC Cable, CD Driver, Manual, Panel Bracket (default)
Optional
Open Frame Bracket (upgrade), VESA Folding Bracket, DVI Cable, 19" 7RU rack mount brackets
