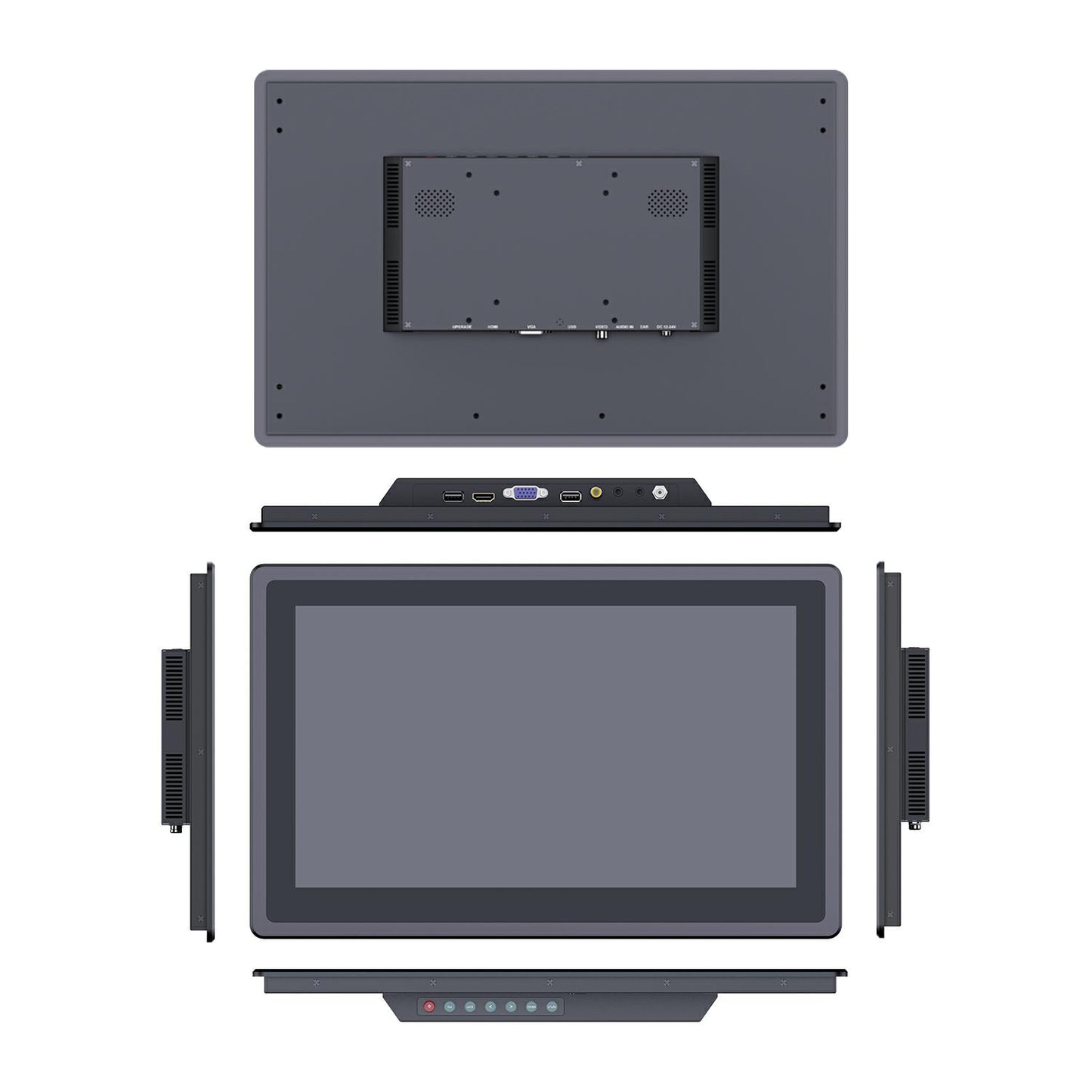

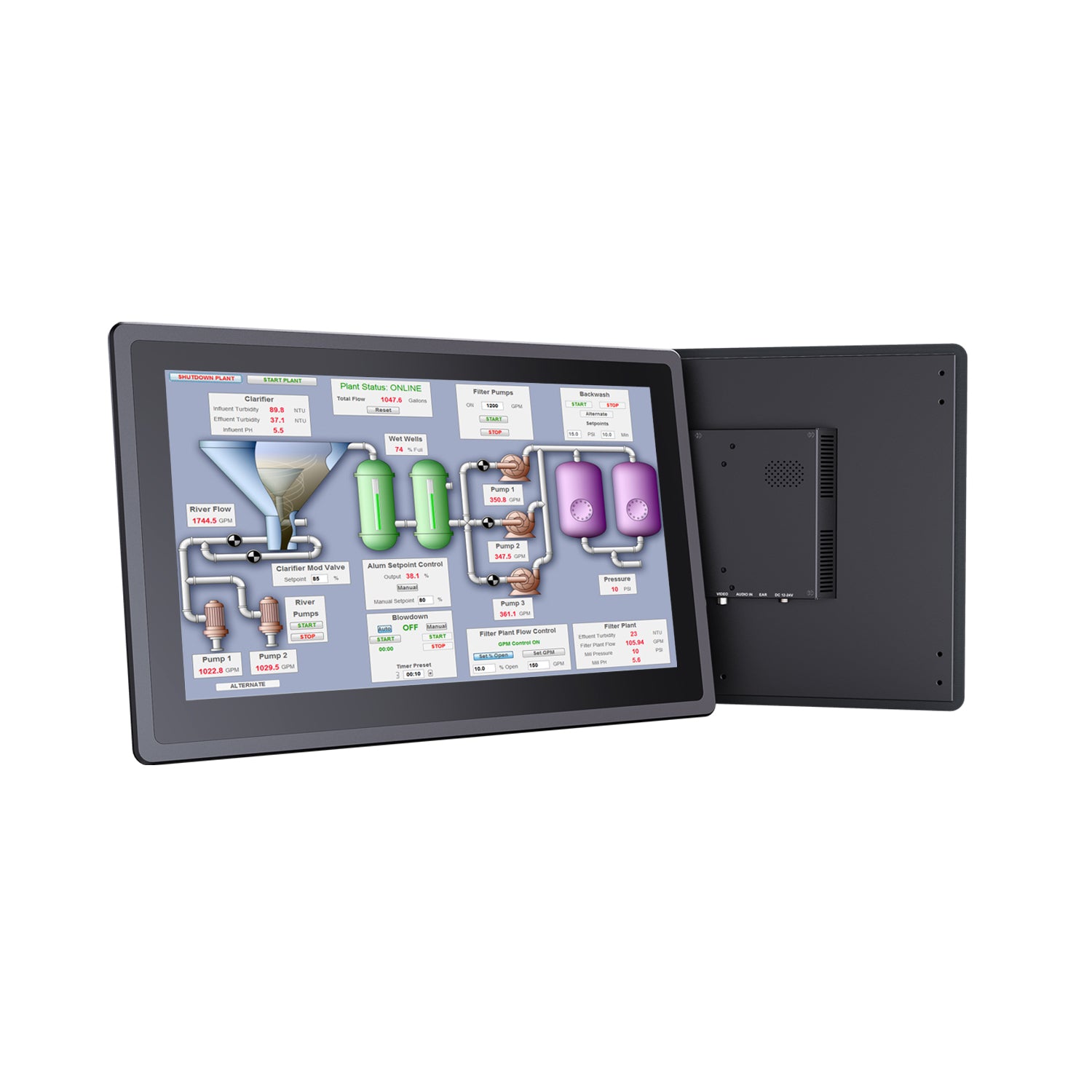

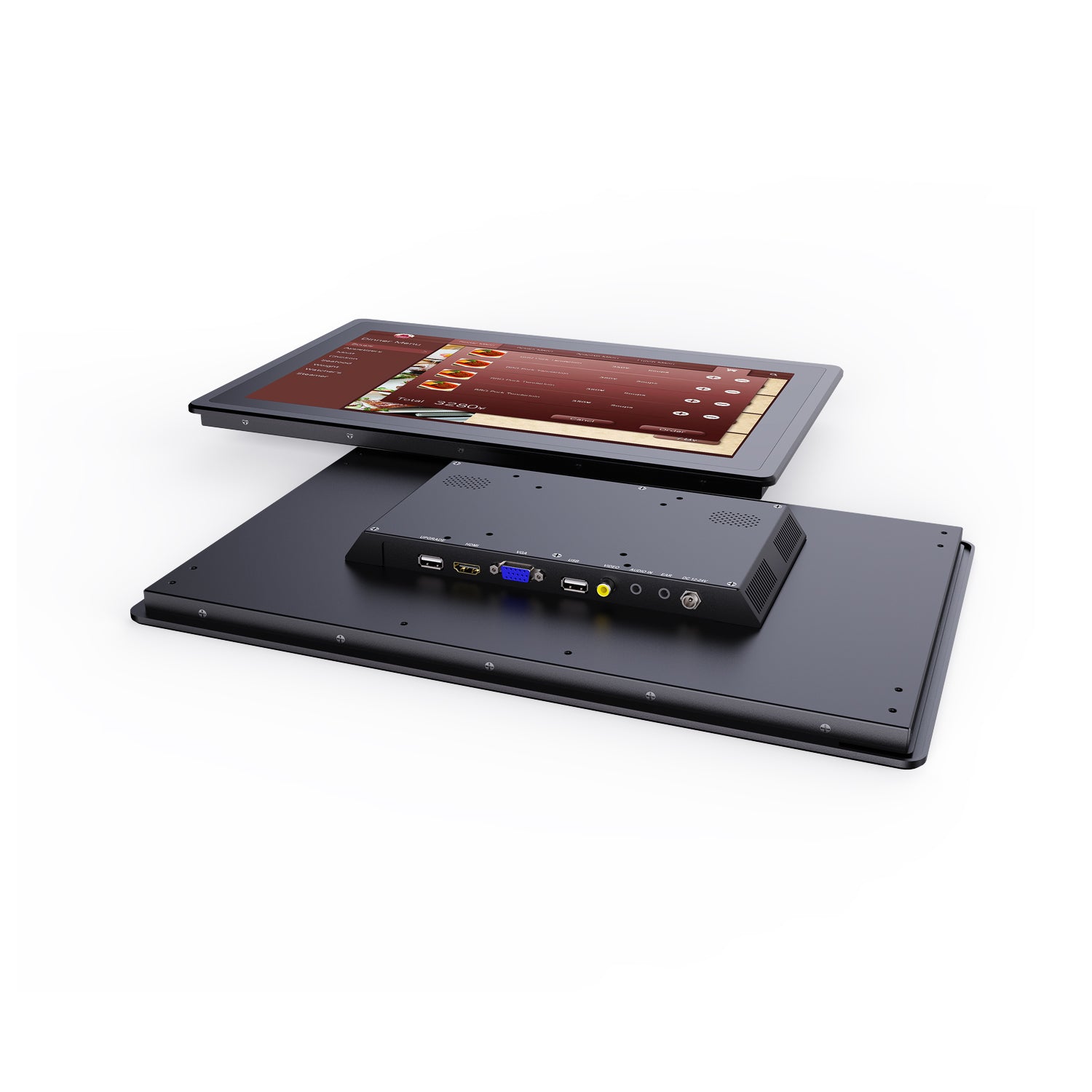

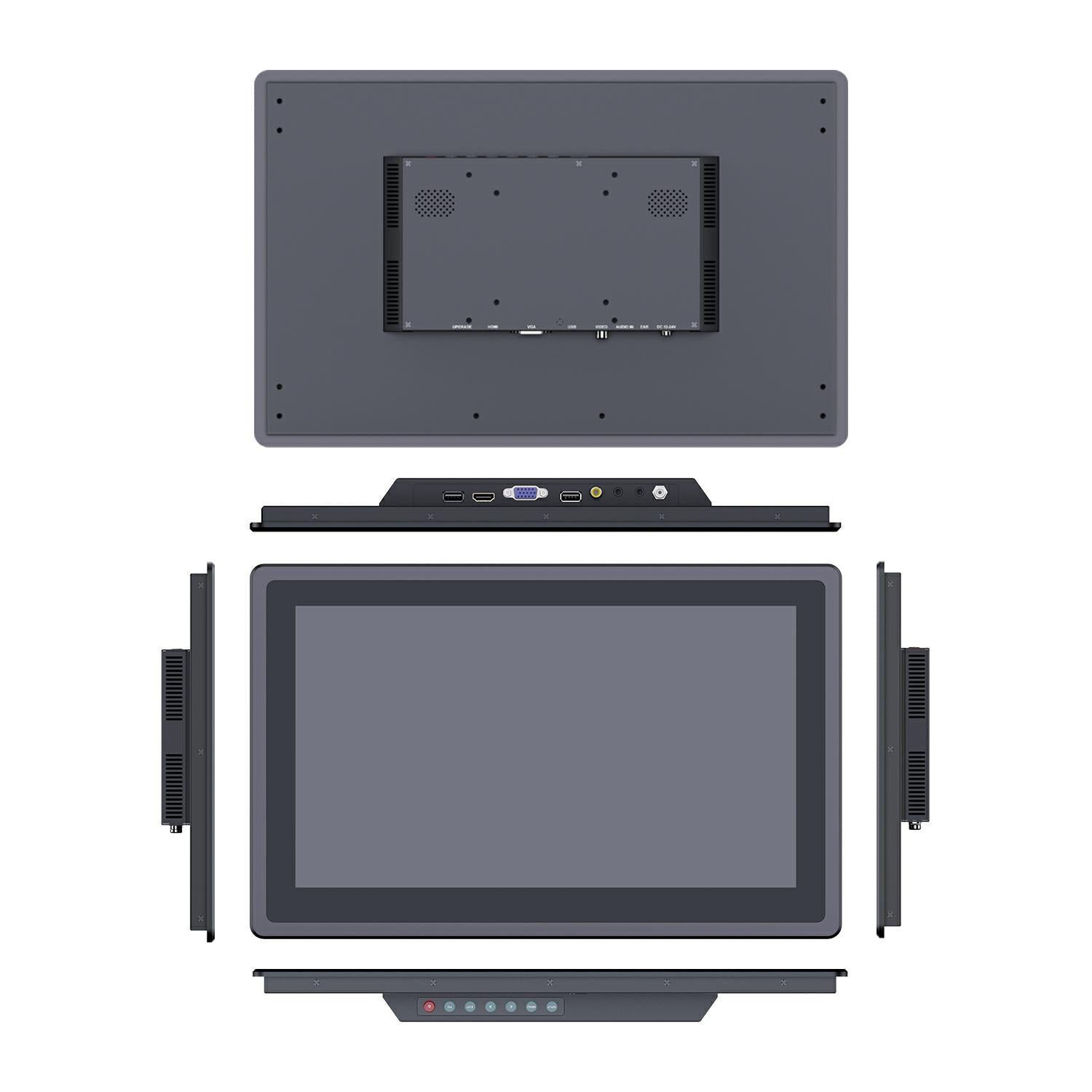

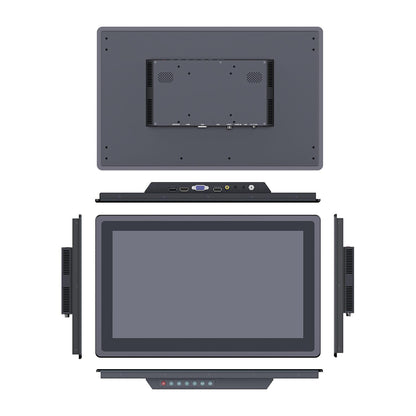

15.6 inch open frame touch screen monitor 10-point PCAP touch screen optional 1920 x 1080 LCD, 1000 cd/m², 1000:1 contrast, 16:9 1x HDMI 1.4b, 1x VGA, 1x AV, versatile inputs HDMI 4K 30Hz passthrough; HDR support (HDR10, HLG) IP64 front panel (water and dust resistant) DC 12 to 24V, ≤24.5 W; -20°C to 60°C operating 408 x 259 x 36.5 mm; 2.9 kg; VESA 75 mm / 100 mm
Display
Screen size
15.6 inch
Aspect ratio
16:9
Native resolution
1920 x 1080
Panel type
LCD
Brightness
1000 cd/m²
Contrast
1000:1
Viewing angle
160°/160° (H/V)
Touch screen
10-point PCAP (optional)

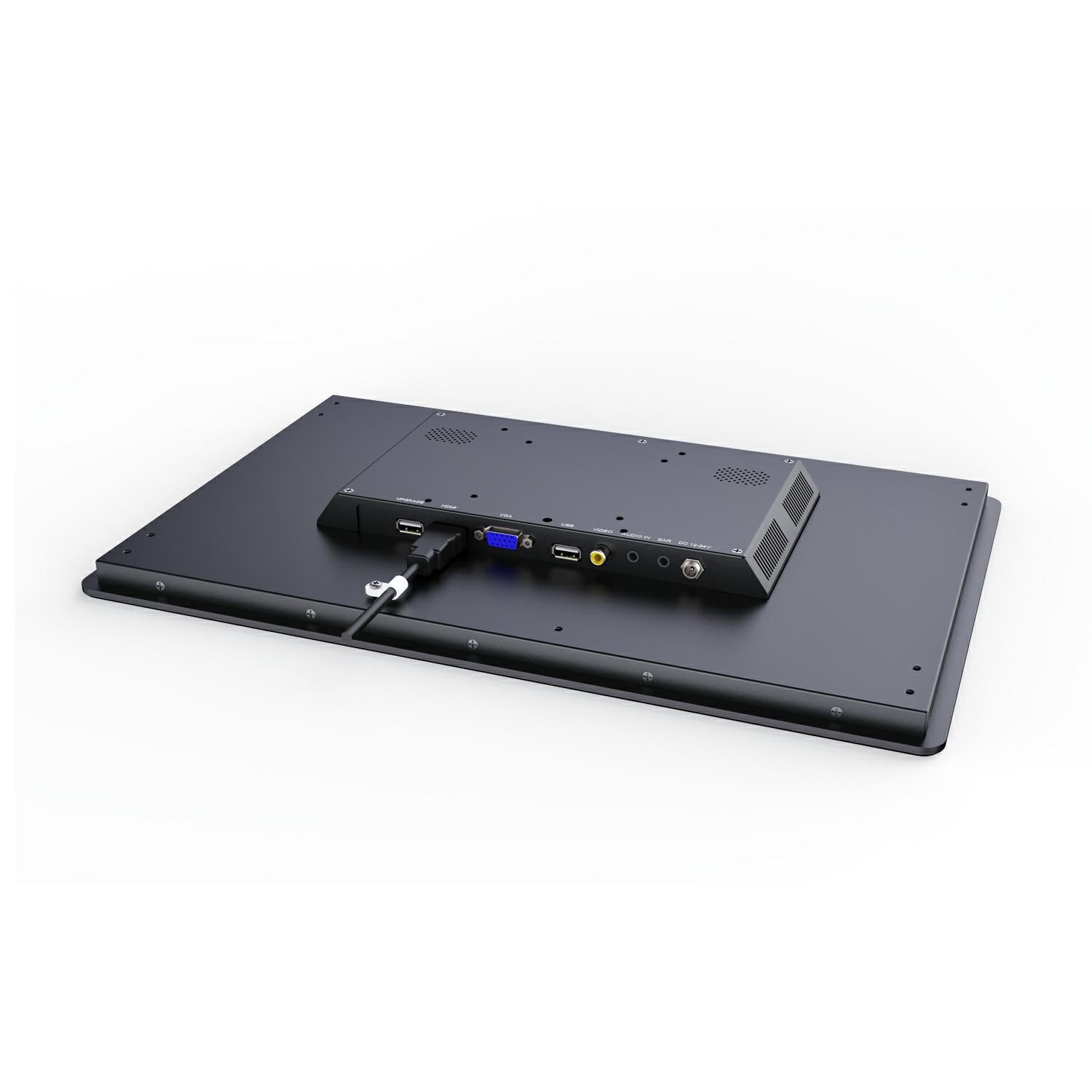

Connections
Video inputs
1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA)
Audio
2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit)
Additional connections
1x USB Type-A (touch, firmware upgrade) (optional)
Video Standards
HDMI 1.4b
2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Operational Features
Sensors
Ambient light auto-dimming
Markers — Aspect markers
1.85:1, 2.35:1, 4:3, 3:2
Markers — Safety marker
80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker
On/Off
Image mirroring
Vertical flip, Horizontal flip
Power
Input voltage
DC 12 to 24V
Power consumption
≤24.5 W (15V)
Environmental
IP rating
IP64 front panel (IEC60529)
Hardness
6H
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Mechanical
Dimensions
408 x 259 x 36.5 mm
Weight
2.9 kg
Mounting
VESA mount
75 x 75 mm, 100 x 100 mm
Mounting Screws
4x Wall Mount Screws
Stand
Desktop Foldable Stand (optional)
Accessories
Included
12V 3A DC Power Adapter, HDMI A to A Cable, VGA Cable, Audio & Video Input Cables, Fixed Screws & Gaskets, Cable Clamps, Manual, 4x Wall Mount Screws
Optional
Foldable Stand
