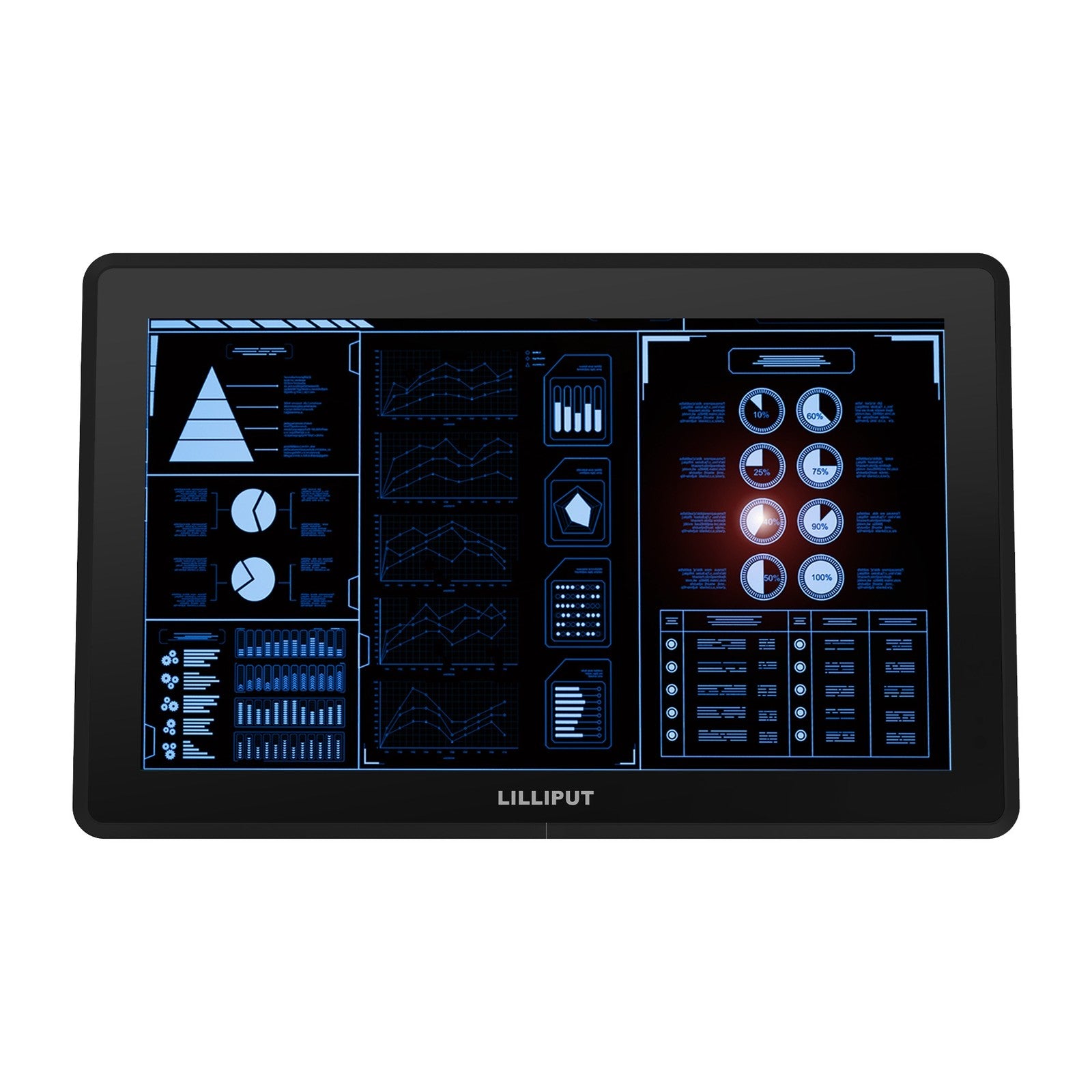

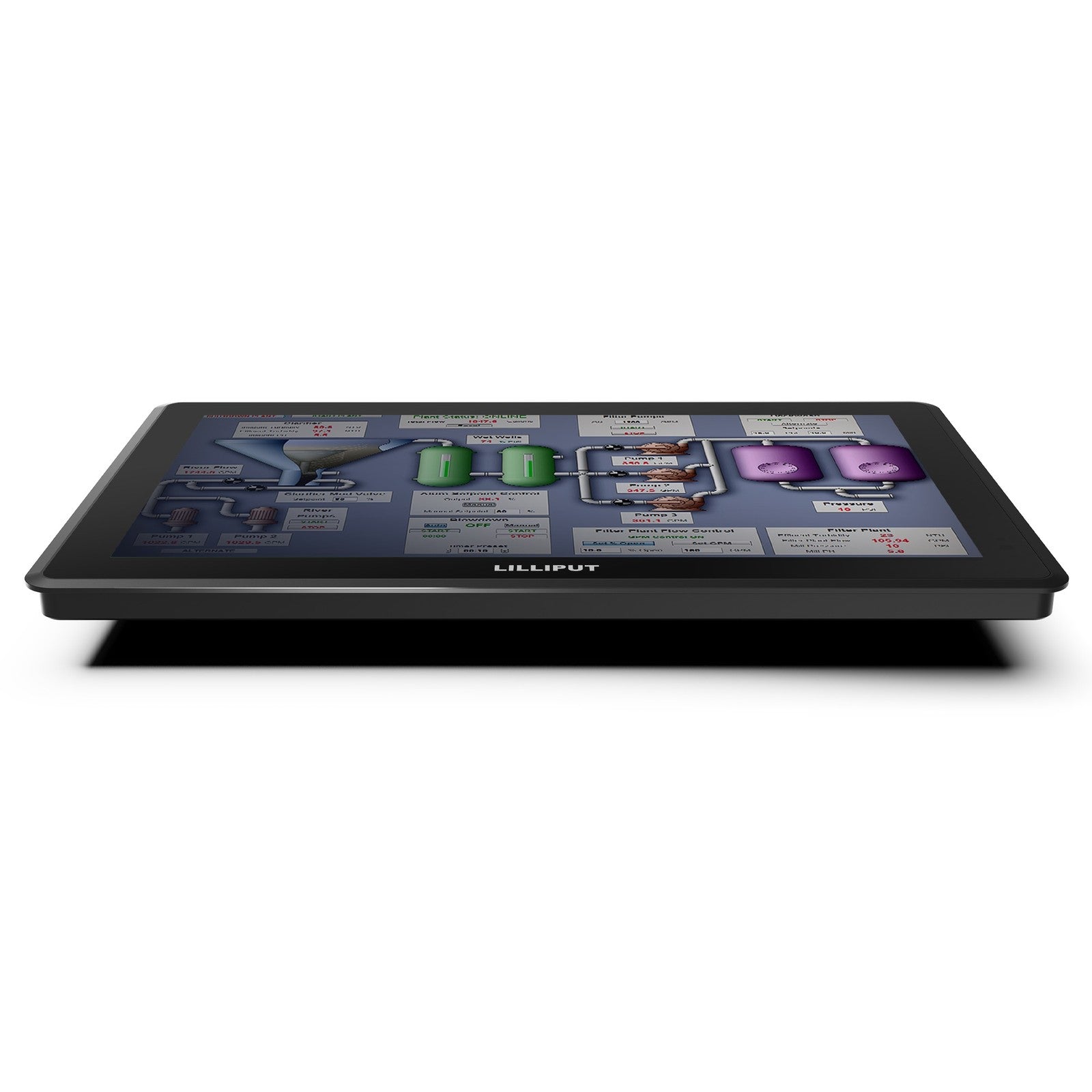

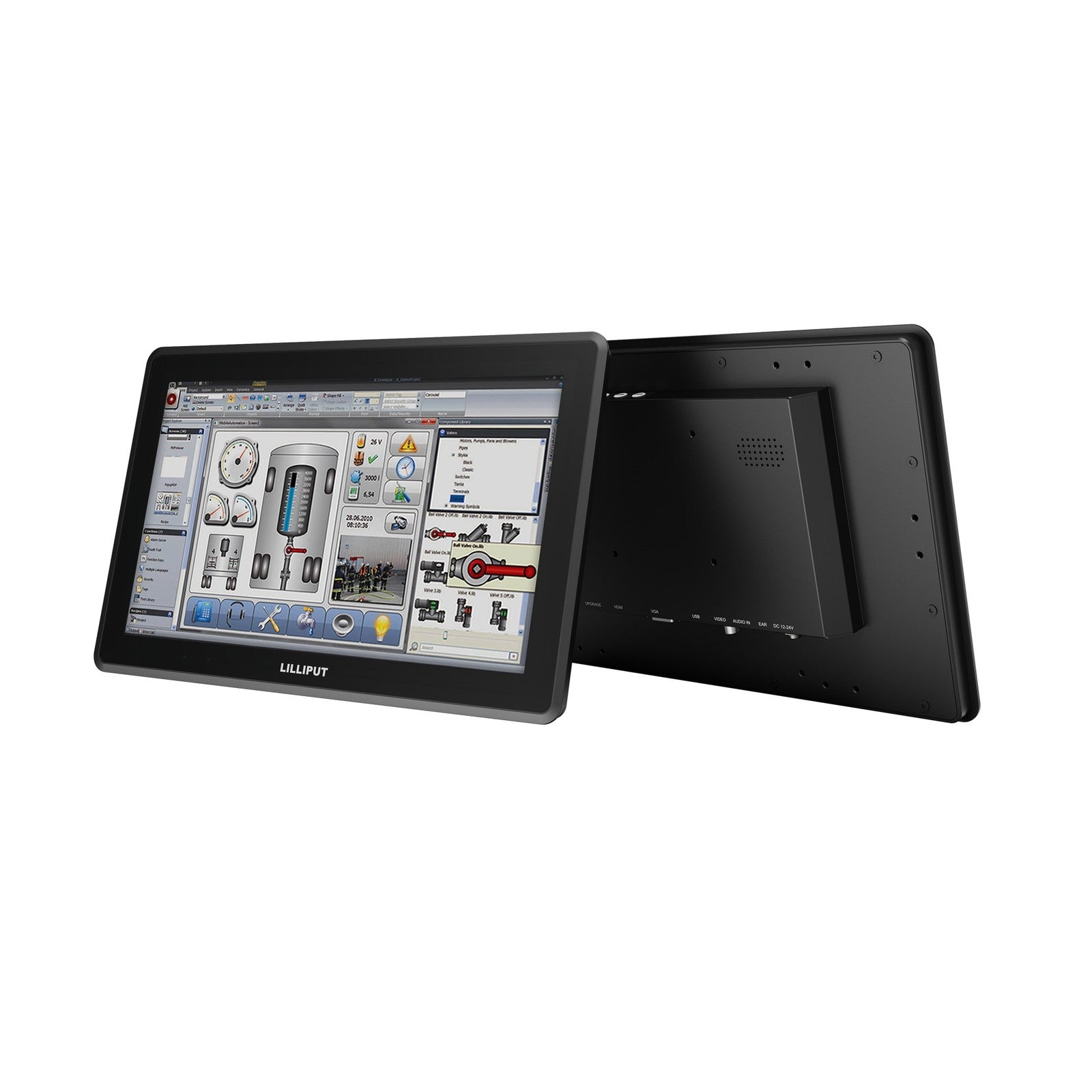

13.3 inch open frame touch screen monitor 1920 x 1080 LCD, 1000 cd/m², 1000:1 contrast, 16:9 1x HDMI 1.4b, 1x VGA, 1x AV, versatile inputs HDMI 4K 30Hz passthrough; HDR support (HDR10, HLG) IP65 front panel; IK07 impact resistance; hardness 7H Optical bonding; UV-resistant, anti-glare, anti-fingerprint coating 10-point PCAP touch with glove support (optional) DC 12 to 24V, ≤13 W; -20°C to 60°C operating 339.5 x 211 x 35.5 mm; 1.8 kg; VESA 75 mm
Display
Screen size
13.3 inch
Aspect ratio
16:9
Native resolution
1920 x 1080
Panel type
LCD
Brightness
1000 cd/m²
Contrast
1000:1
Viewing angle
160°/160° (H/V)
Coating
UV-resistant, anti-glare, anti-fingerprint

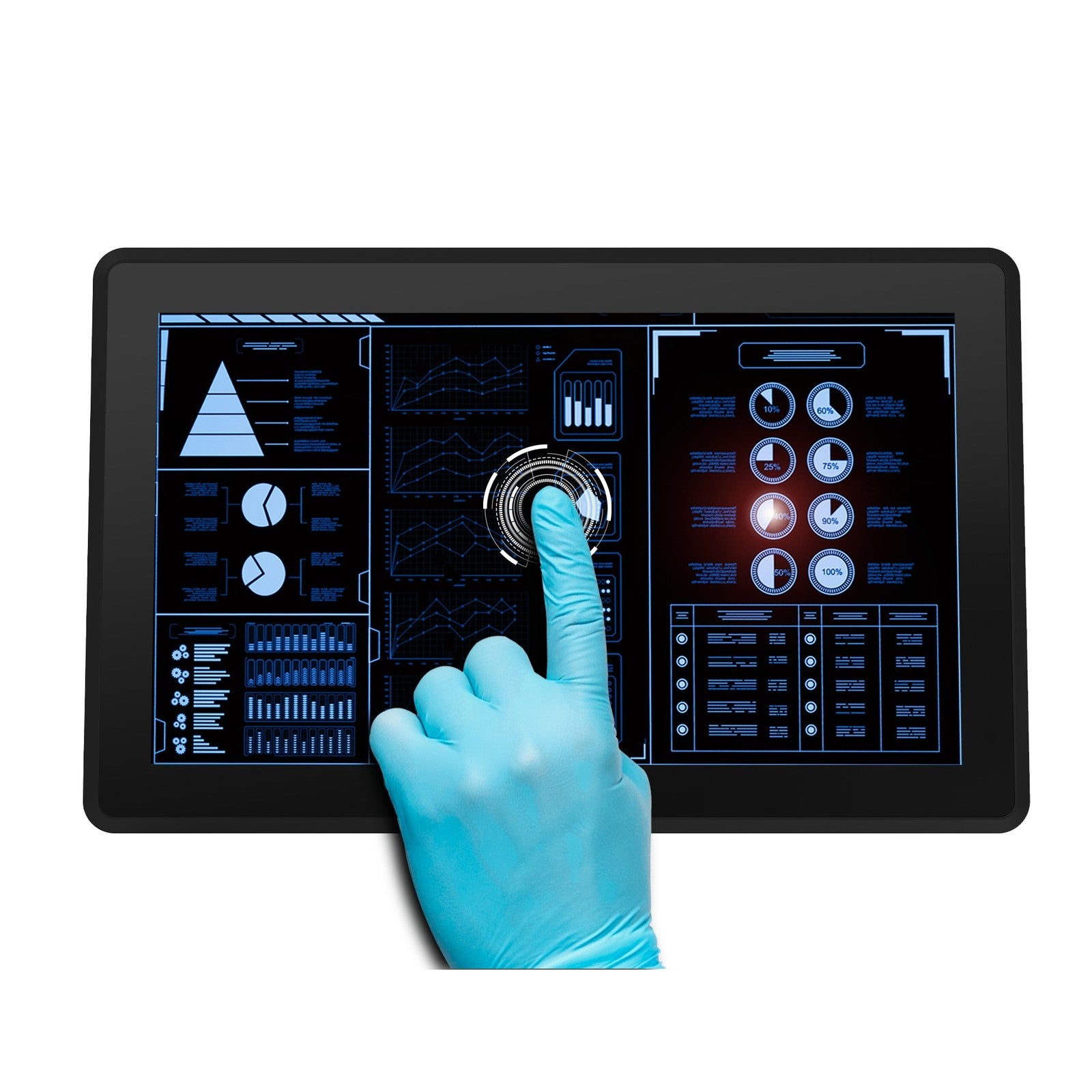

Touch screen
10-point PCAP (optional)

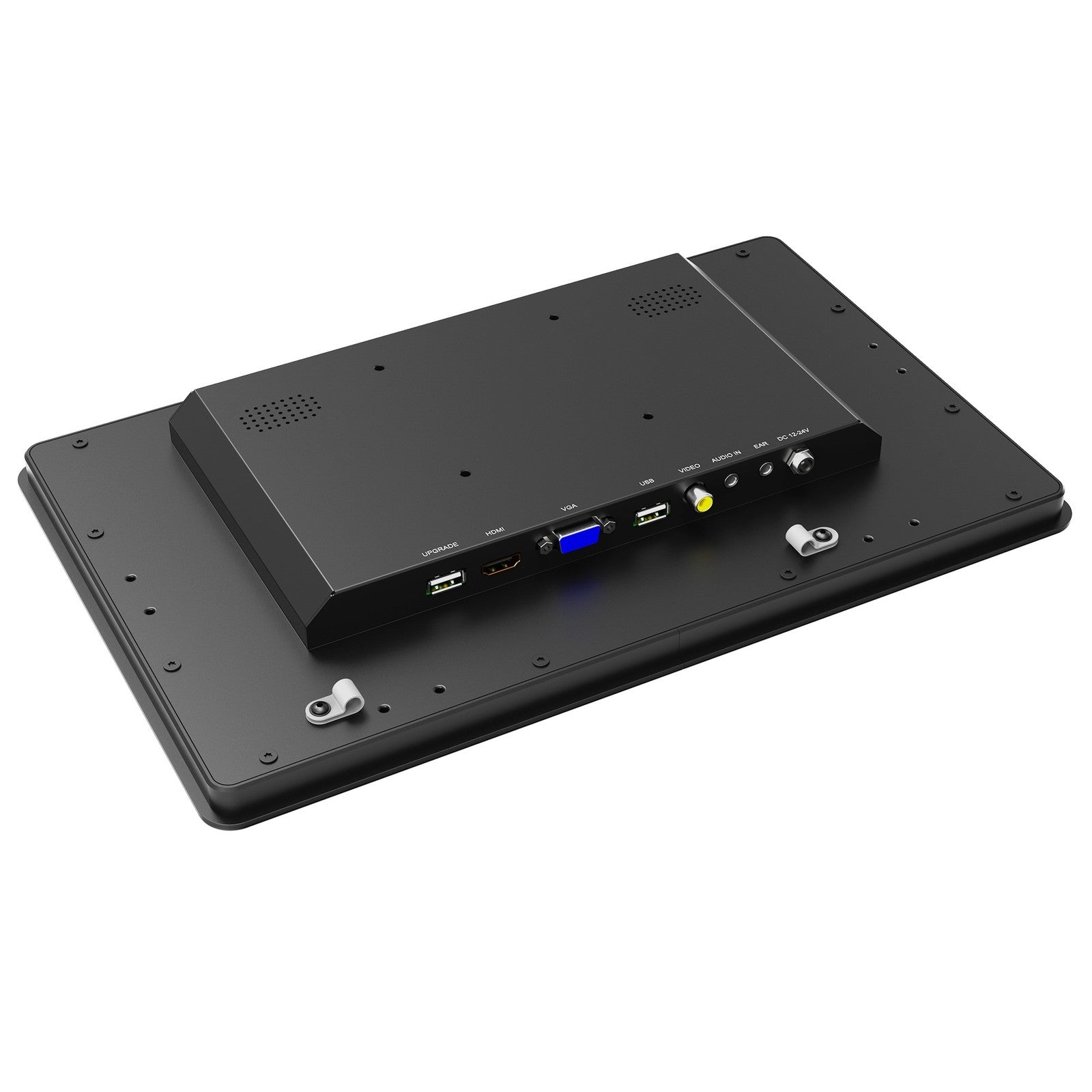

Connections
Video inputs
1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA)
Audio
2x Built-in speakers, 3.5 mm audio in, 3.5 mm ear jack
Additional connections
1x USB Type-A (touch, firmware upgrade) (optional)
Video Standards
HDMI 1.4b
2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Operational Features
Sensors
Ambient light auto-dimming
Markers — Aspect markers
1.85:1, 2.35:1, 4:3, 3:2
Markers — Safety marker
80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker
On/Off
Image mirroring
Vertical flip, Horizontal flip
Power
Input voltage
DC 12 to 24V
Power consumption
≤13 W (12V)
Environmental
IP rating
IP65 front panel (IEC60529)
IK rating
IK07 (IEC62262/EN62262)
Hardness
7H
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C

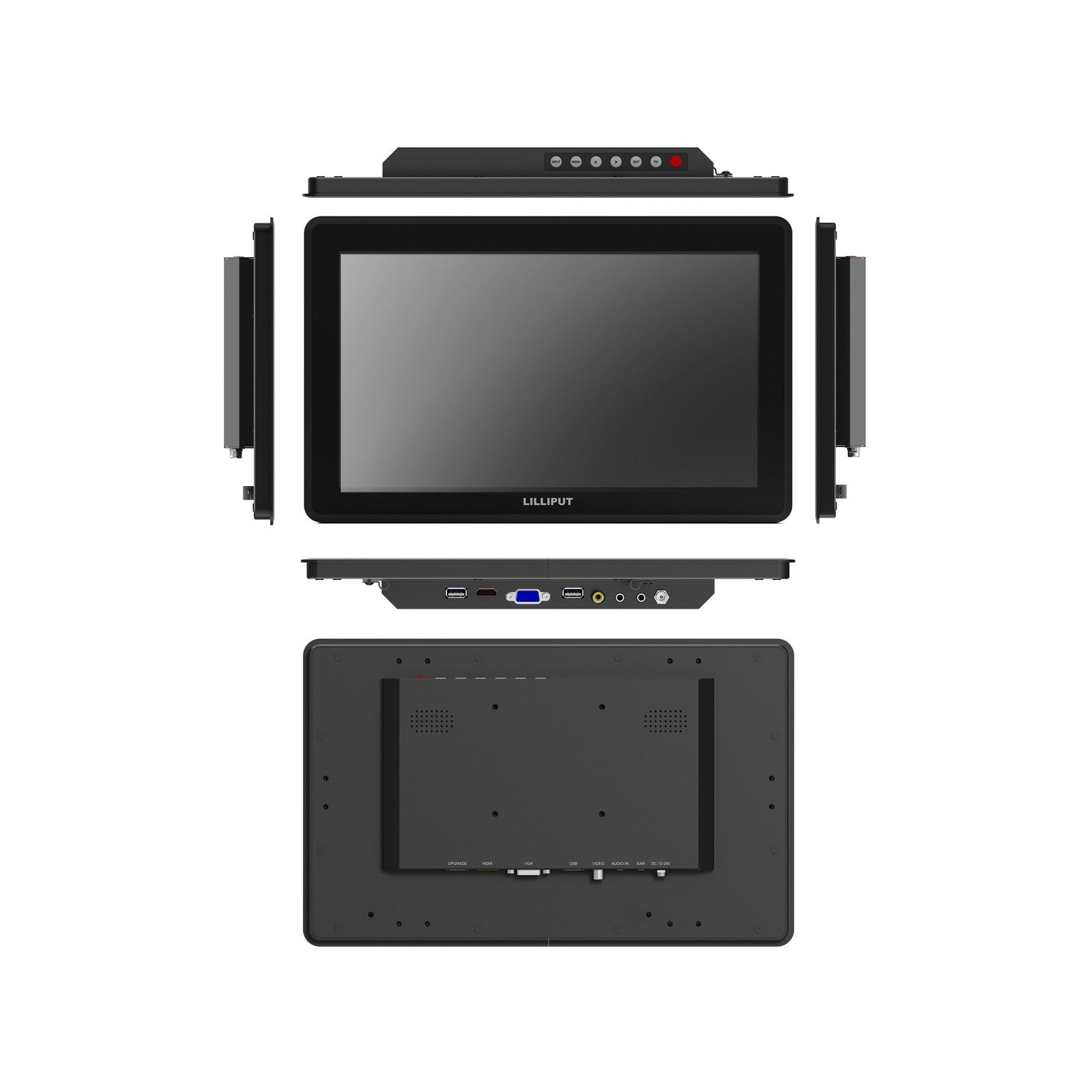

Mechanical
Dimensions
339.5 x 211 x 35.5 mm
Weight
1.8 kg

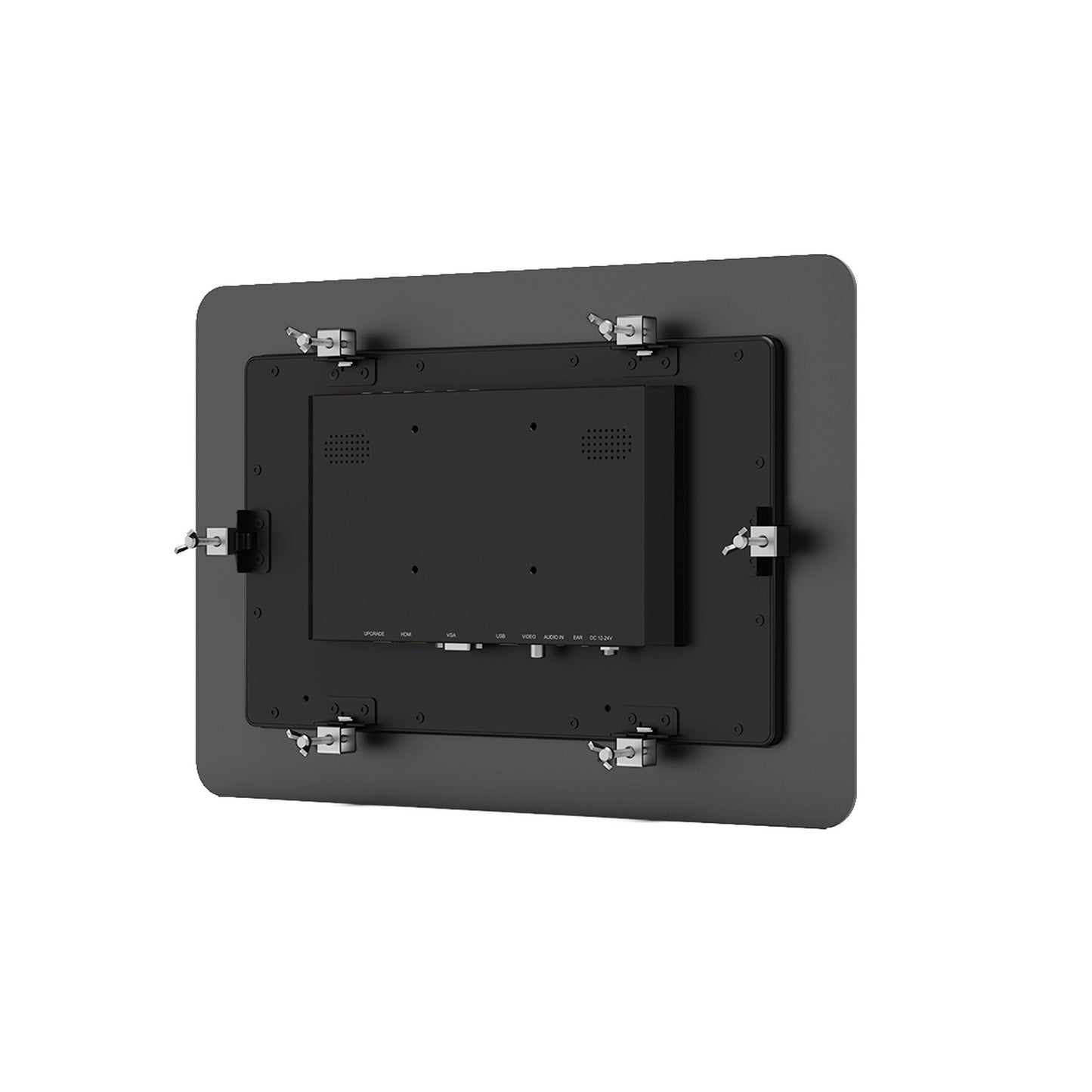

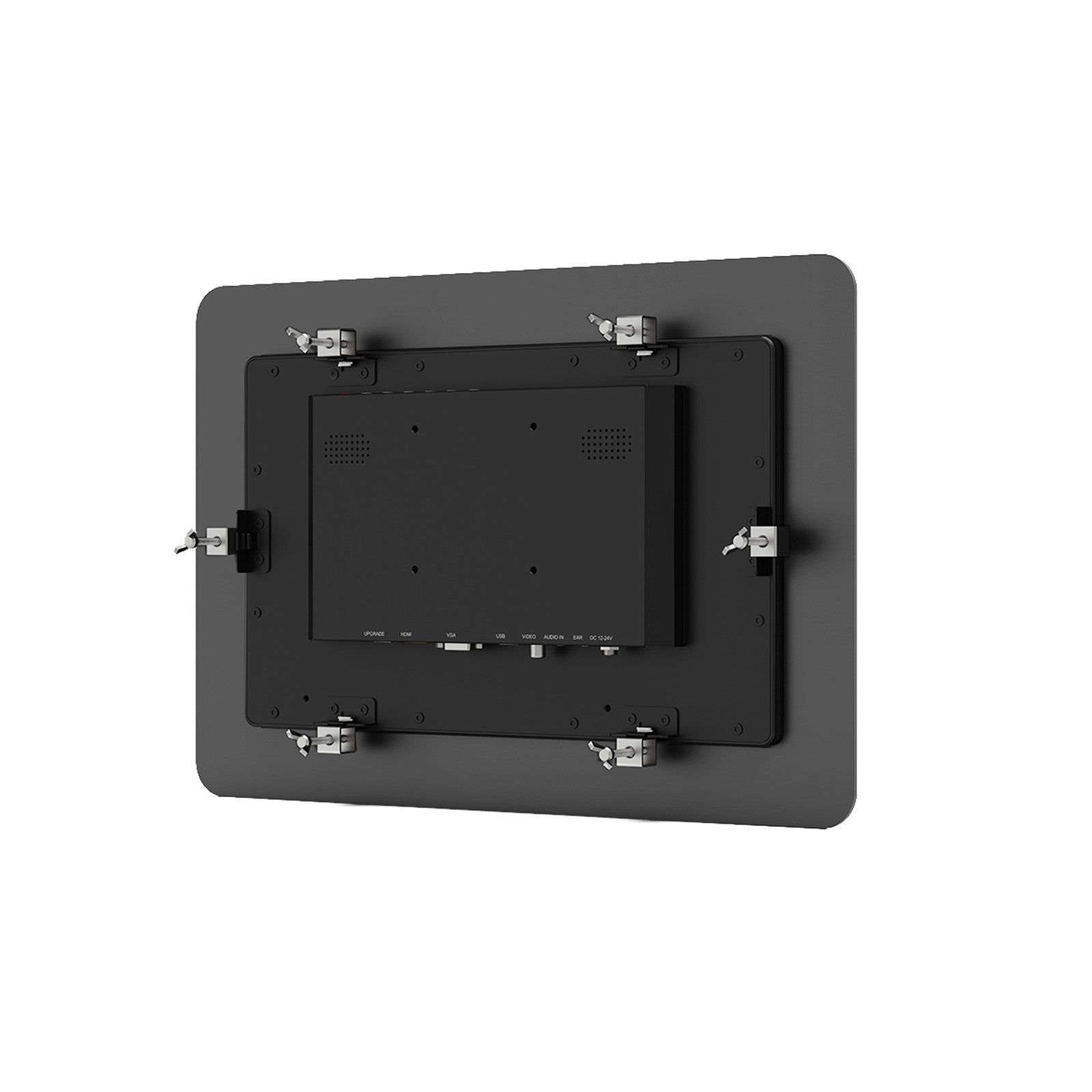

Mounting
VESA mount
75 x 75 mm
Mounting Screws
6x Wall Mount Screws
Accessories
Included
12V 2A DC Power Adapter, HDMI A to A Cable, VGA Cable, Audio & Video Input Cables, Cable Clamps, Manual, 6x Wall Mount Screws
Optional
VESA 75 mm Bracket, Remote Control
