Features Explore TK2700 Technical Data Downloads

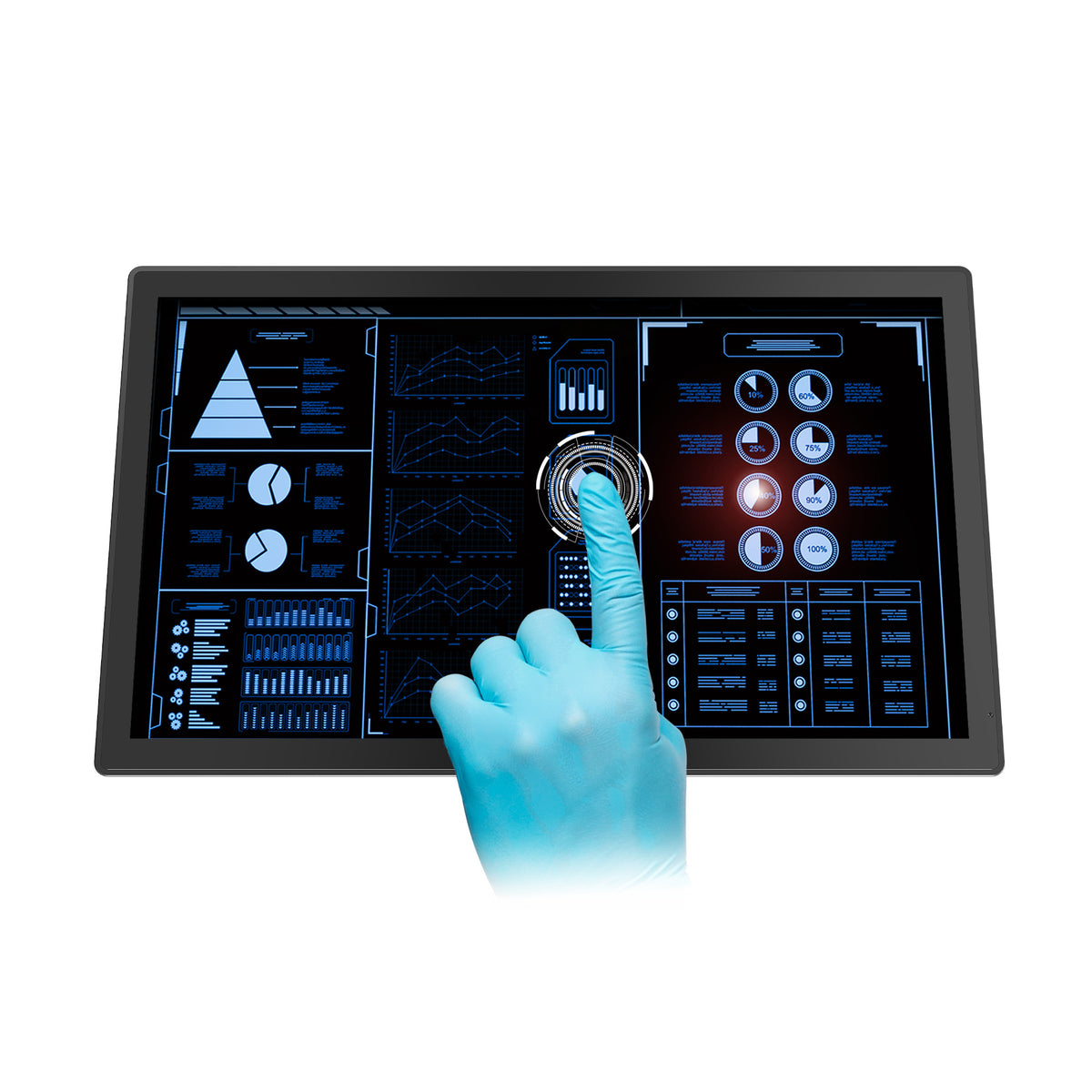

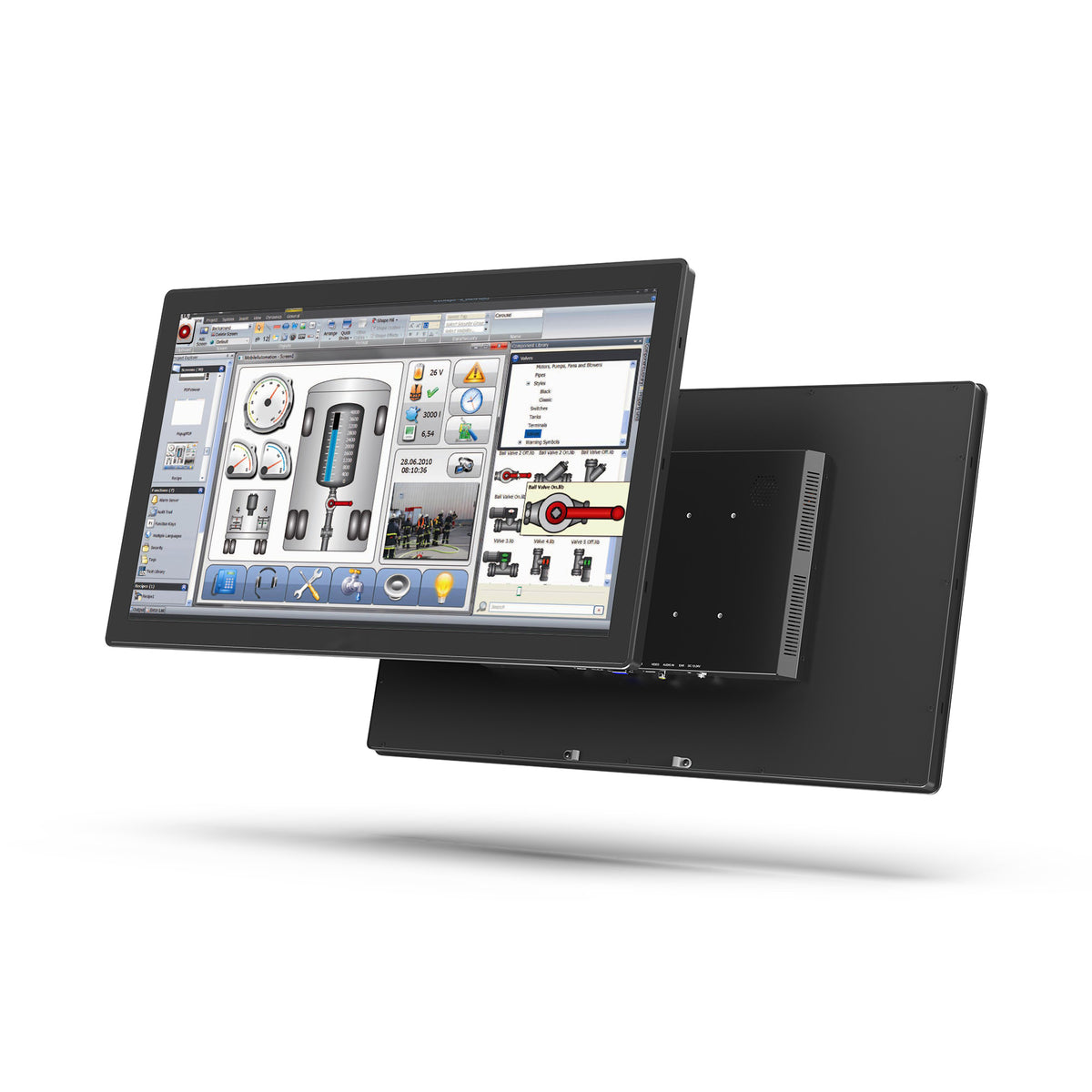

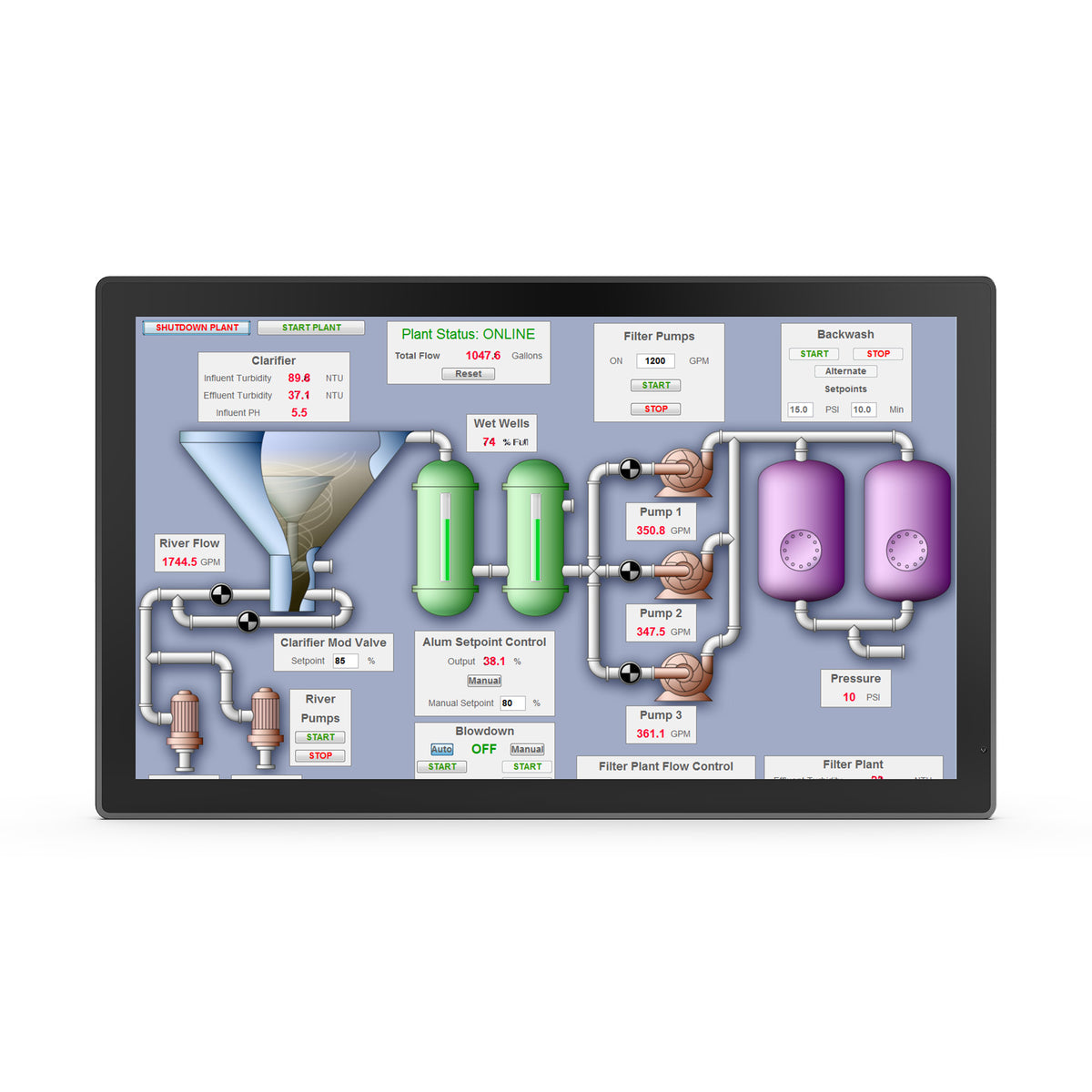

27 inch open frame touch screen monitor 10-point PCAP touch screen optional 1920 x 1080 LCD, 1000 cd/m², 1000:1 contrast, 16:9 1x HDMI 1.4b, 1x VGA, 1x AV, versatile inputs HDMI 4K 30Hz passthrough; HDR support (HDR10, HLG) IP65 front panel (NEMA 4); IK07 impact resistance; hardness 7H UV-resistant, anti-glare, anti-fingerprint coating DC 12 to 24V, ≤41 W; -10°C to 50°C operating Vibration and shock tested; VESA 100/200 mm wall mount
Display
Screen size
27 inch
Aspect ratio
16:9
Native resolution
1920 x 1080
Panel type
LCD
Brightness
1000 cd/m²
Contrast
1000:1
Viewing angle
178°/178° (H/V)
Coating
UV-resistant, anti-glare, anti-fingerprint
Touch screen
10-point PCAP (optional)
Connections
Video inputs
1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA)
Audio
2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack
Additional connections
2x USB-A (touch, upgrade) (optional)
Video Standards
HDMI 1.4b
2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
VGA
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
AV
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Operational Features
Markers — Aspect markers
1.85:1, 2.35:1, 4:3, 3:2
Markers — Safety marker
80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker
On/Off
Image mirroring
Vertical flip, Horizontal flip
Power
Input voltage
DC 12 to 24V
Power consumption
≤41 W (12V)
Environmental
IP rating
IP65 front panel (IEC60529), NEMA 4 front
IK rating
IK07 (IEC62262/EN62262)
Hardness
7H
Vibration
IEC6068-2-64
Shock
IEC6068-2-27
Operating temperature
-10°C to 50°C
Storage temperature
-20°C to 60°C
Mechanical
Dimensions
658.4 x 396.6 x 51.8 mm
Weight
9.5 kg

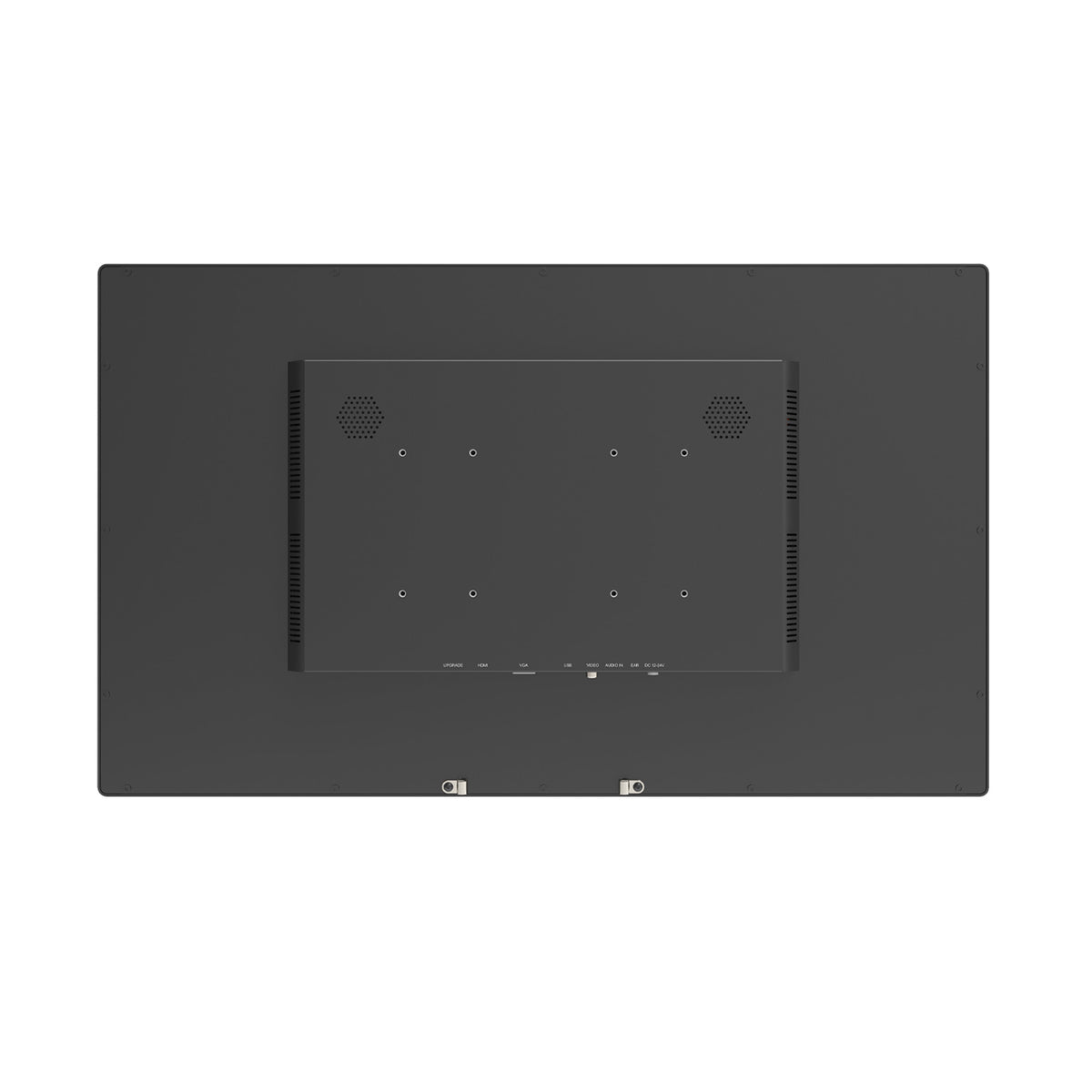

Mounting
VESA mount
100 x 100 mm, 200 x 200 mm
Mounting Screws
14x Wall Mount Screws
Accessories
Included
15V 3A Power Adapter, 0.8 m HDMI A-A Cable, VGA Cable, 14x Wall Mount Screws, 4x Cable Clamps, Audio / Video Cable
Optional
Remote Control
