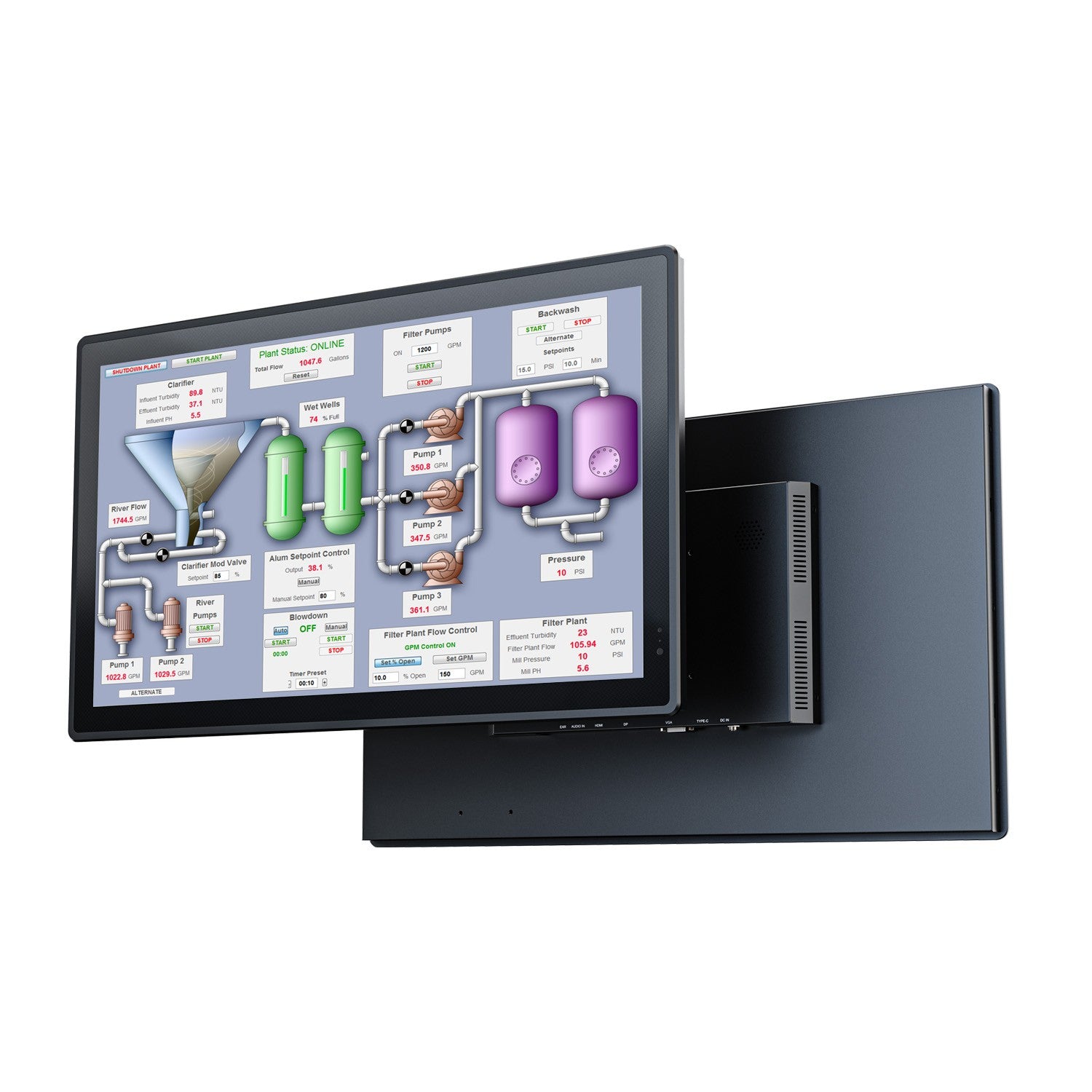

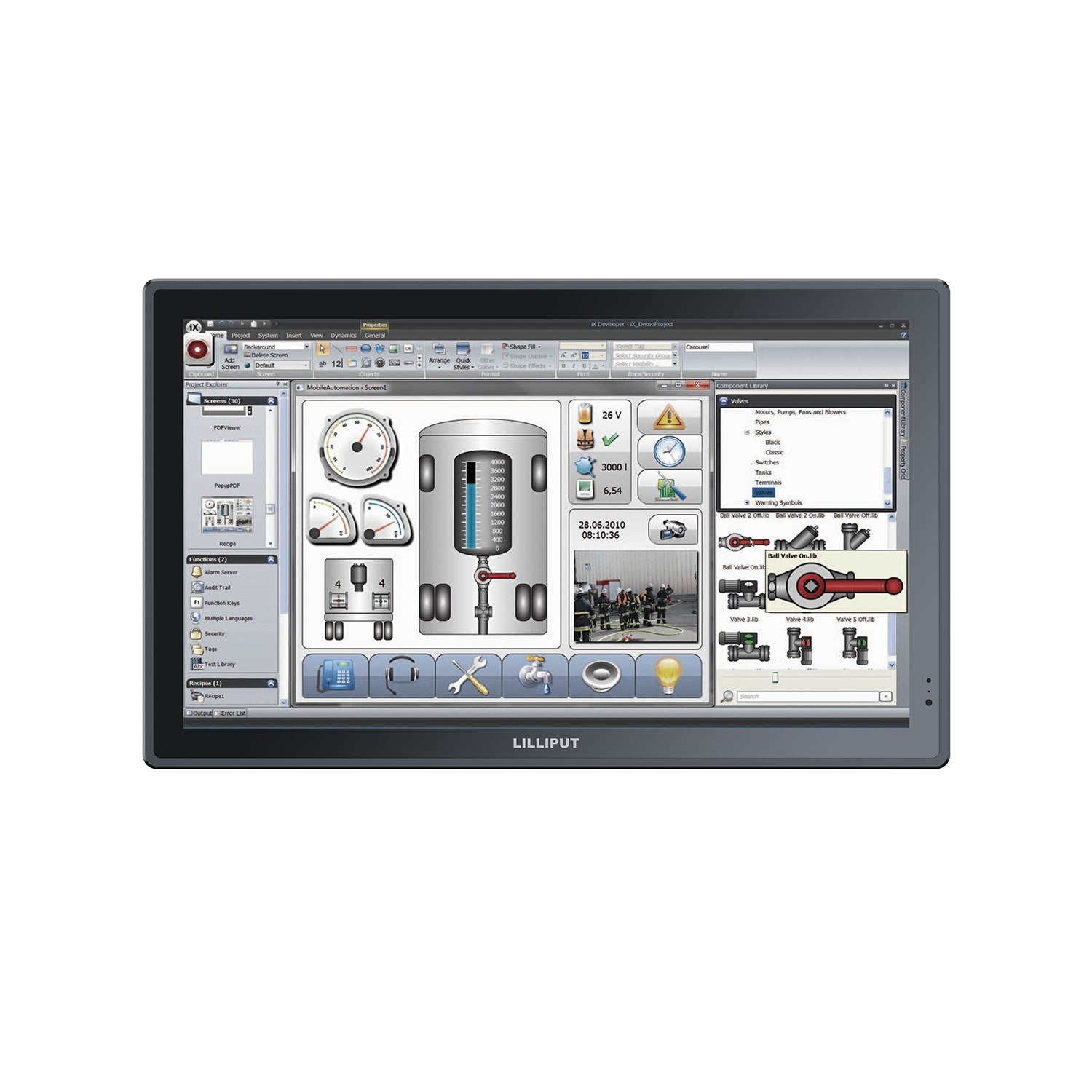

23.8 inch open frame touch screen monitor 10-point PCAP touch screen optional 1920 x 1080 LCD, 1000 cd/m², 1000:1 contrast, 16:9 1x HDMI 1.4b, 1x VGA, 1x DisplayPort, 1x USB Type-C (optional) HDMI 4K 30Hz and DisplayPort 4K 60Hz IP65 front panel; IK07 impact resistance; hardness 7H Anti-glare coating Ambient light auto-dimming; image flip DC 9 to 36V, ≤55 W; -20°C to 60°C operating 587.4 x 356.8 x 54.9 mm; 7.6 kg; VESA 100 mm
Display
Screen size
23.8 inch
Aspect ratio
16:9
Native resolution
1920 x 1080
Panel type
LCD
Brightness
1000 cd/m²
Contrast
1000:1
Viewing angle
178°/178° (H/V)
Coating
Anti-glare
Touch screen
10-point PCAP (optional)
Connections
Video inputs

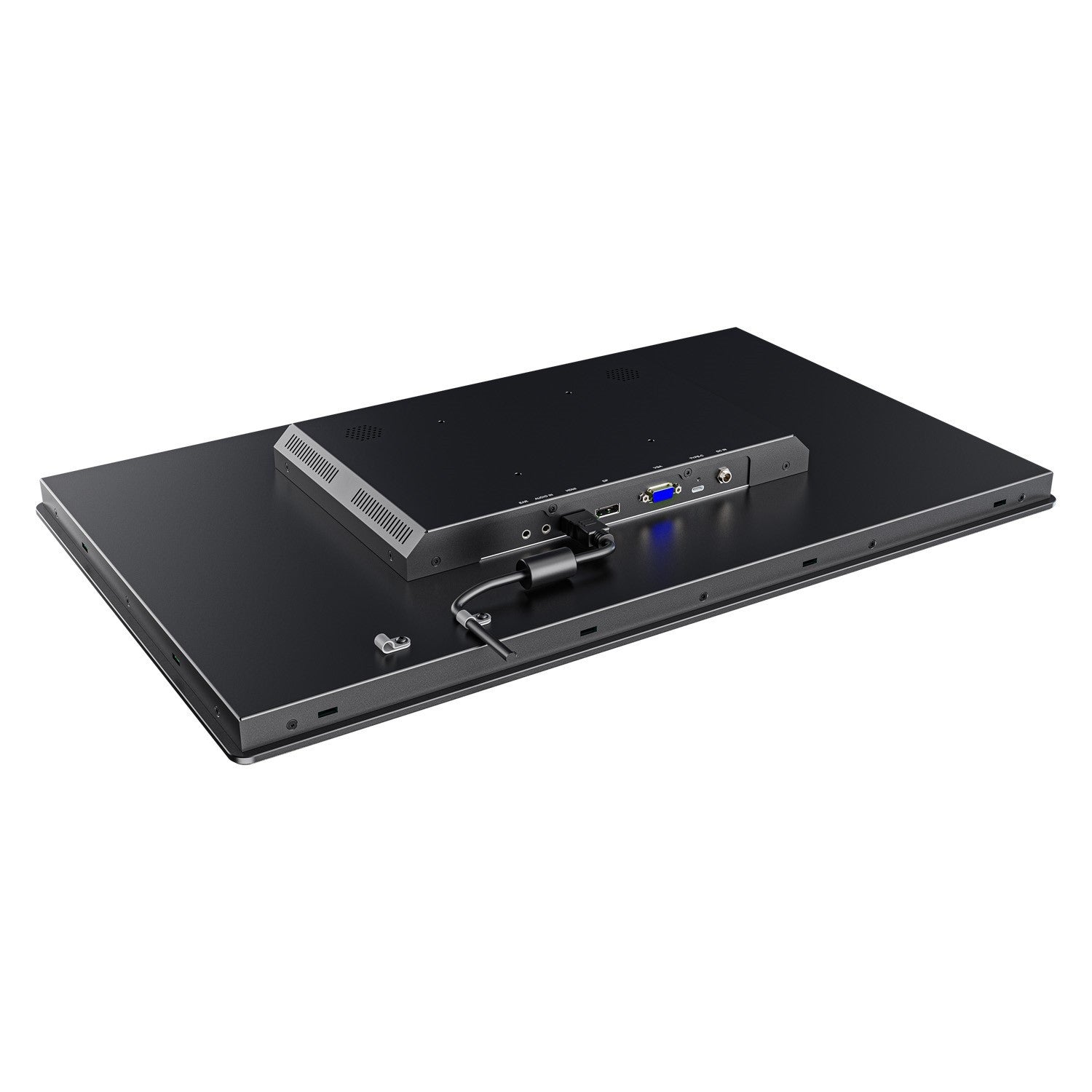

1x HDMI 1.4b, 1x VGA, 1x DisplayPort, 1x USB Type-C (optional)
Audio
1x Built-in speaker, 3.5 mm audio in, 3.5 mm ear jack
Video Standards
HDMI 1.4b
2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
DisplayPort
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Operational Features
Sensors
Ambient light auto-dimming
Markers — Aspect markers
4:3, 3:2
Image mirroring
Vertical flip, Horizontal flip
Power
Input voltage
DC 9 to 36V
Power consumption
≤55 W (12V)
Environmental
IP rating
IP65 front panel (IEC60529)
IK rating
IK07 (IEC62262/EN62262)
Hardness
7H
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C

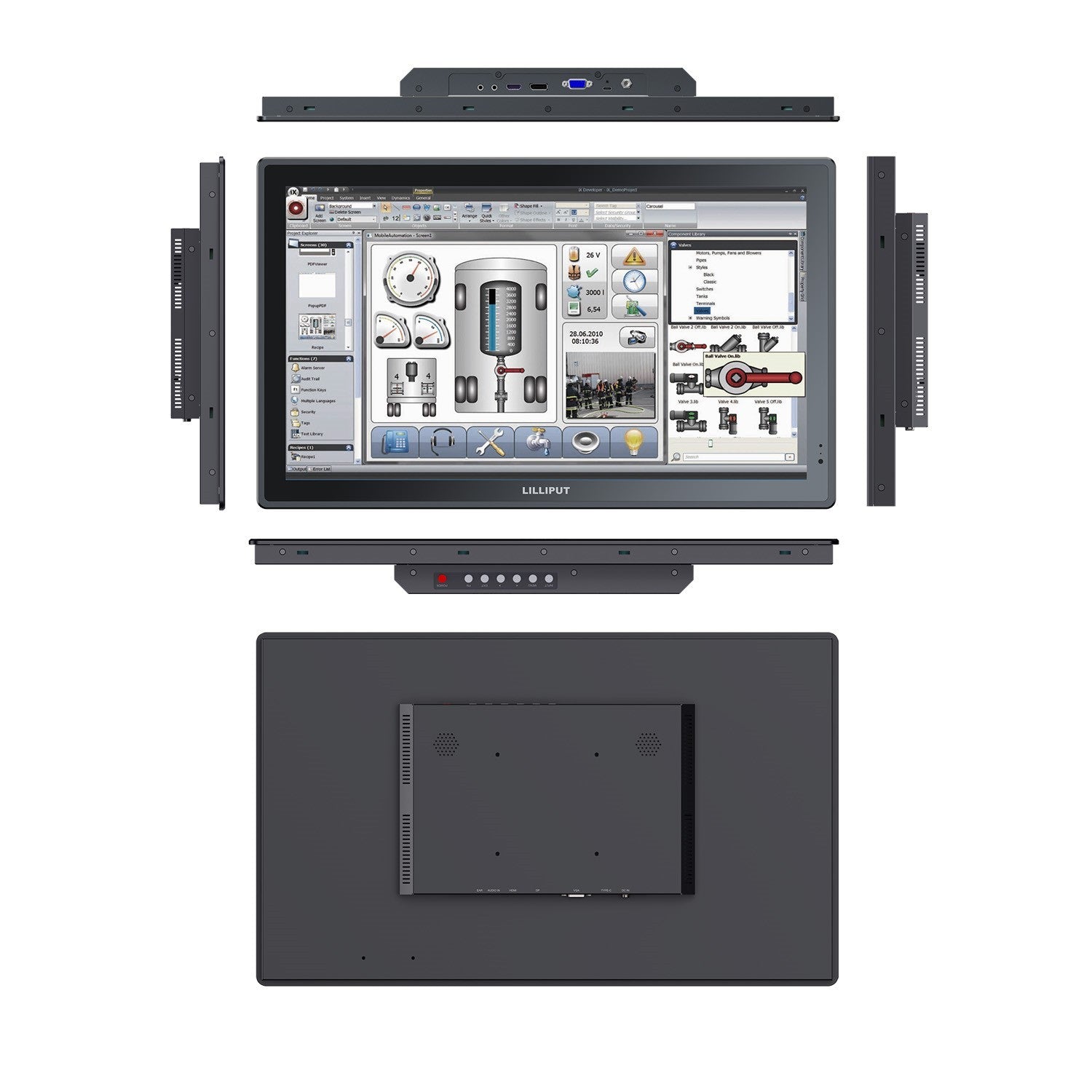

Mechanical
Dimensions
587.4 x 356.8 x 54.9 mm
Weight
7.6 kg

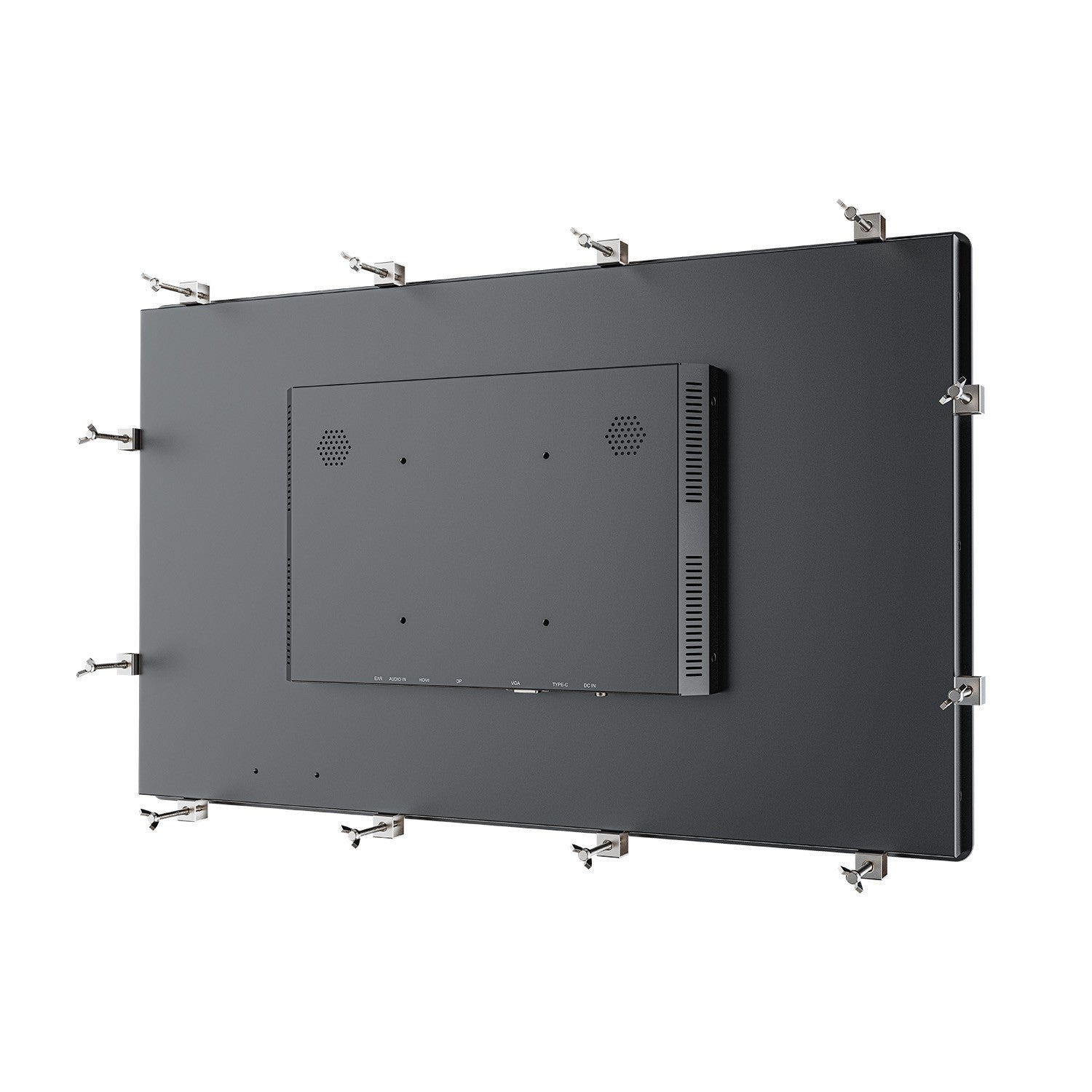

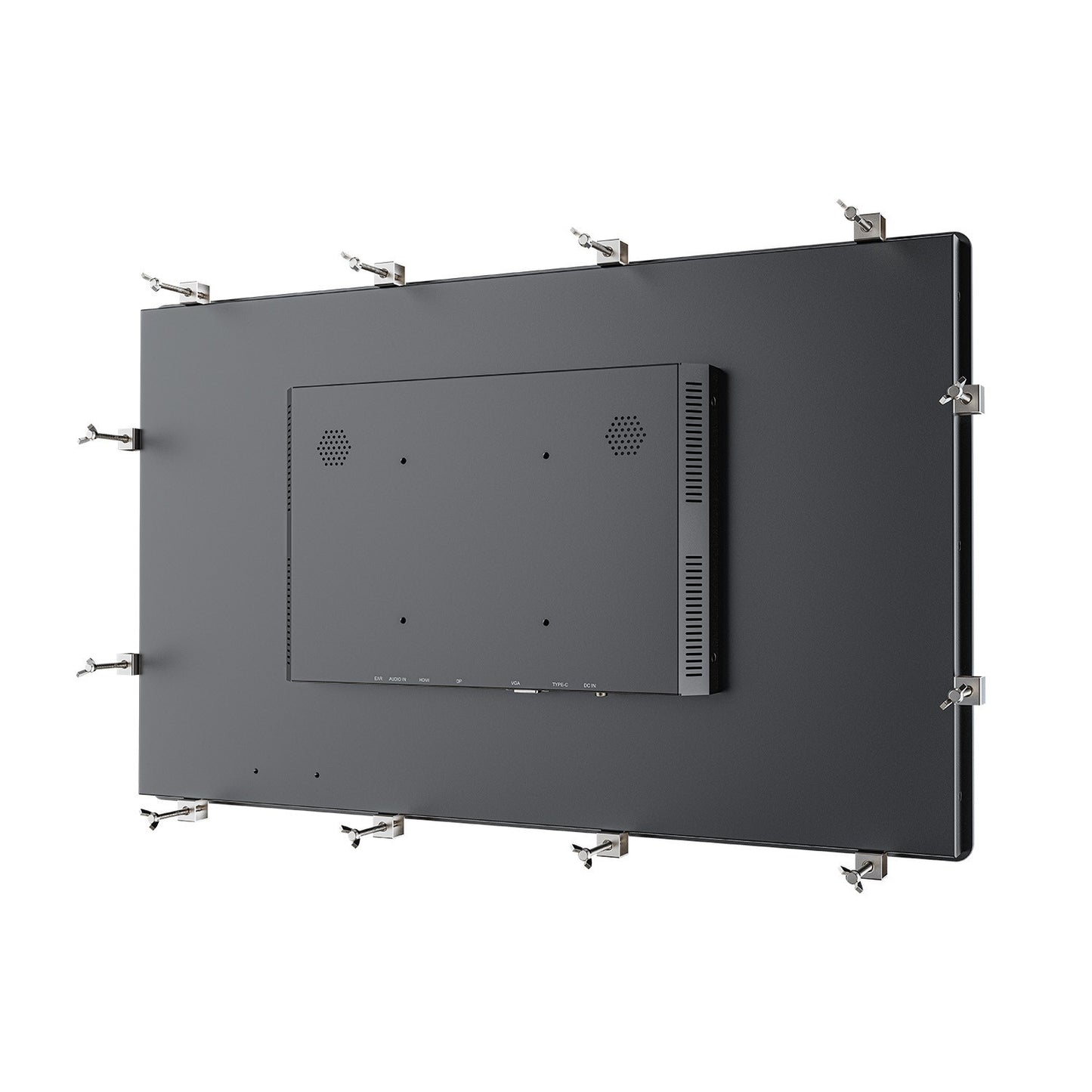

Mounting
VESA mount
100 x 100 mm
Mounting Screws

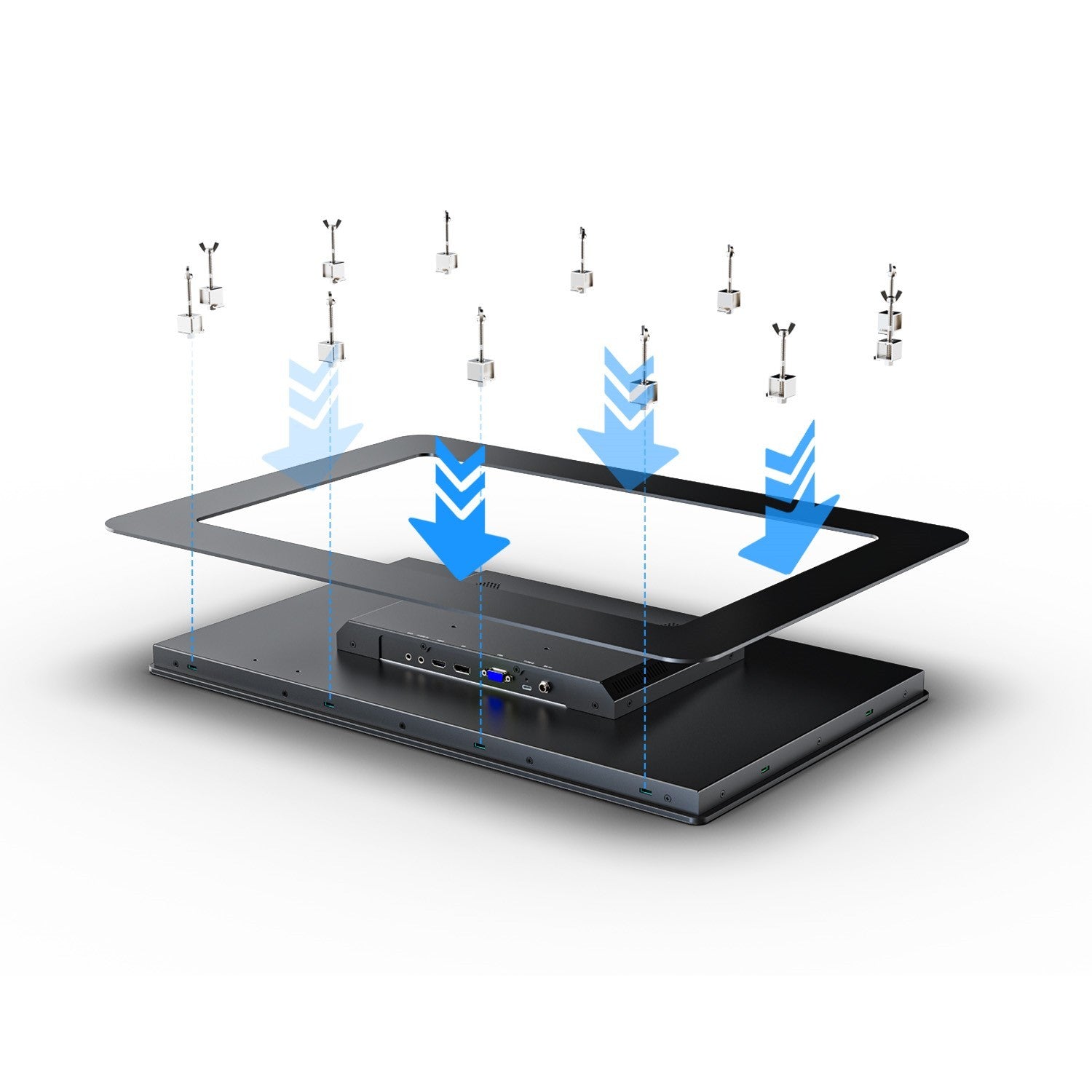

12x Wall Mount Screws
Accessories
Included
12V 5A DC Power Adapter, HDMI A to A Cable, VGA Cable, Audio Cable, Cable Clamps, 12x Wall Mount Screws
Optional
Remote Control, USB A to C Cable (with screw)
