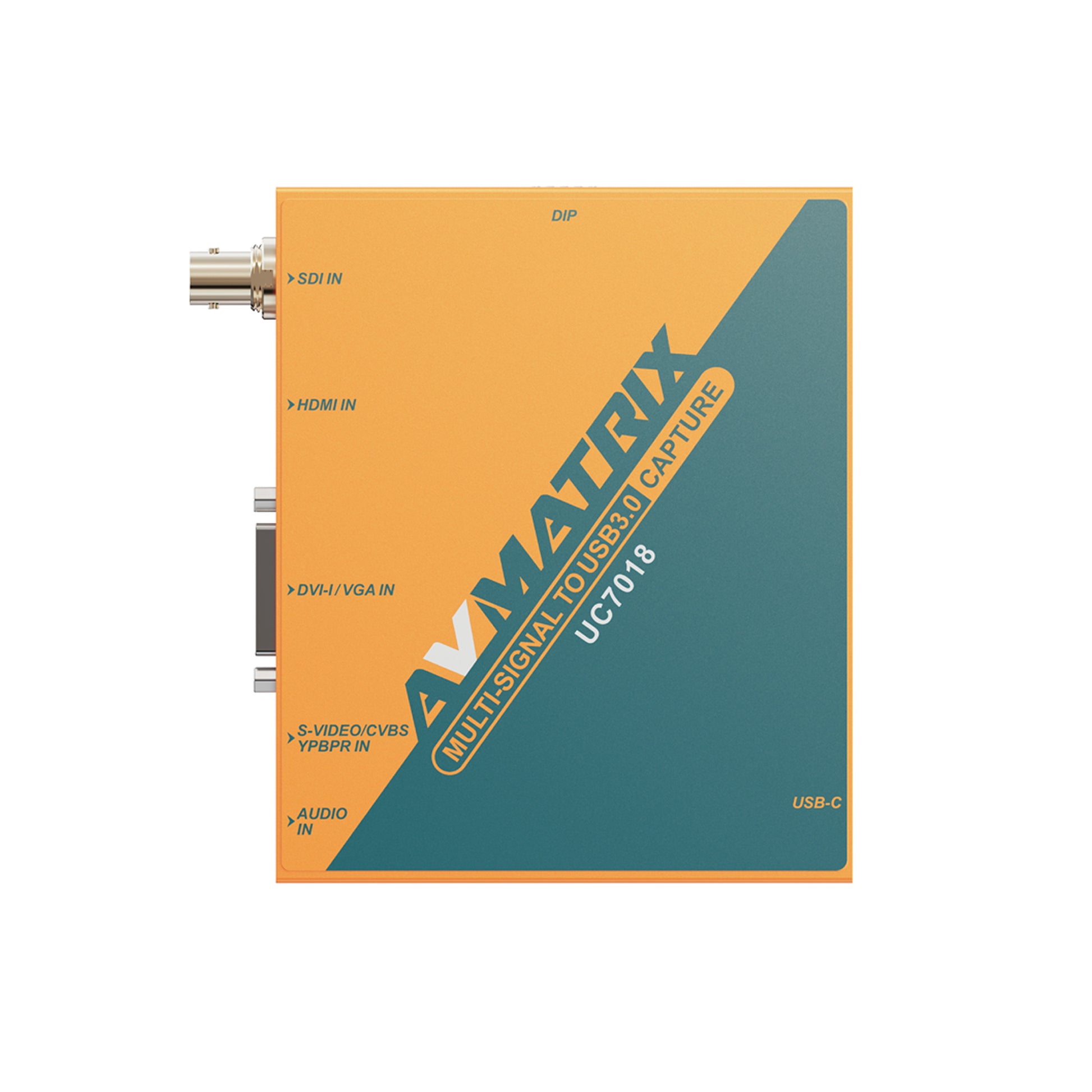

Multi-signal to USB 3.0 capture, 1x 3G-SDI, 1x HDMI, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr USB 3.0 Type C output (USB 3.1 Gen1, up to 200 MB/s) 3G-SDI/HDMI: 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60 DVI/VGA: 1920 x 1080 down to 640 x 400. YPbPr, S-Video, CVBS RGB, YUY2, NV12. UVC/UAC. 2ch 16 bit PCM 48 kHz. 1x 3.5 mm analog audio Windows 7+, Linux 2.6.38+, macOS 10.8+. OBS, Zoom, Teams, QuickTime. 5V USB, ≤5 W
Connections
Host interface
USB 3.0 Type C (USB 3.1 Gen1, up to 200 MB/s)
Video interfaces

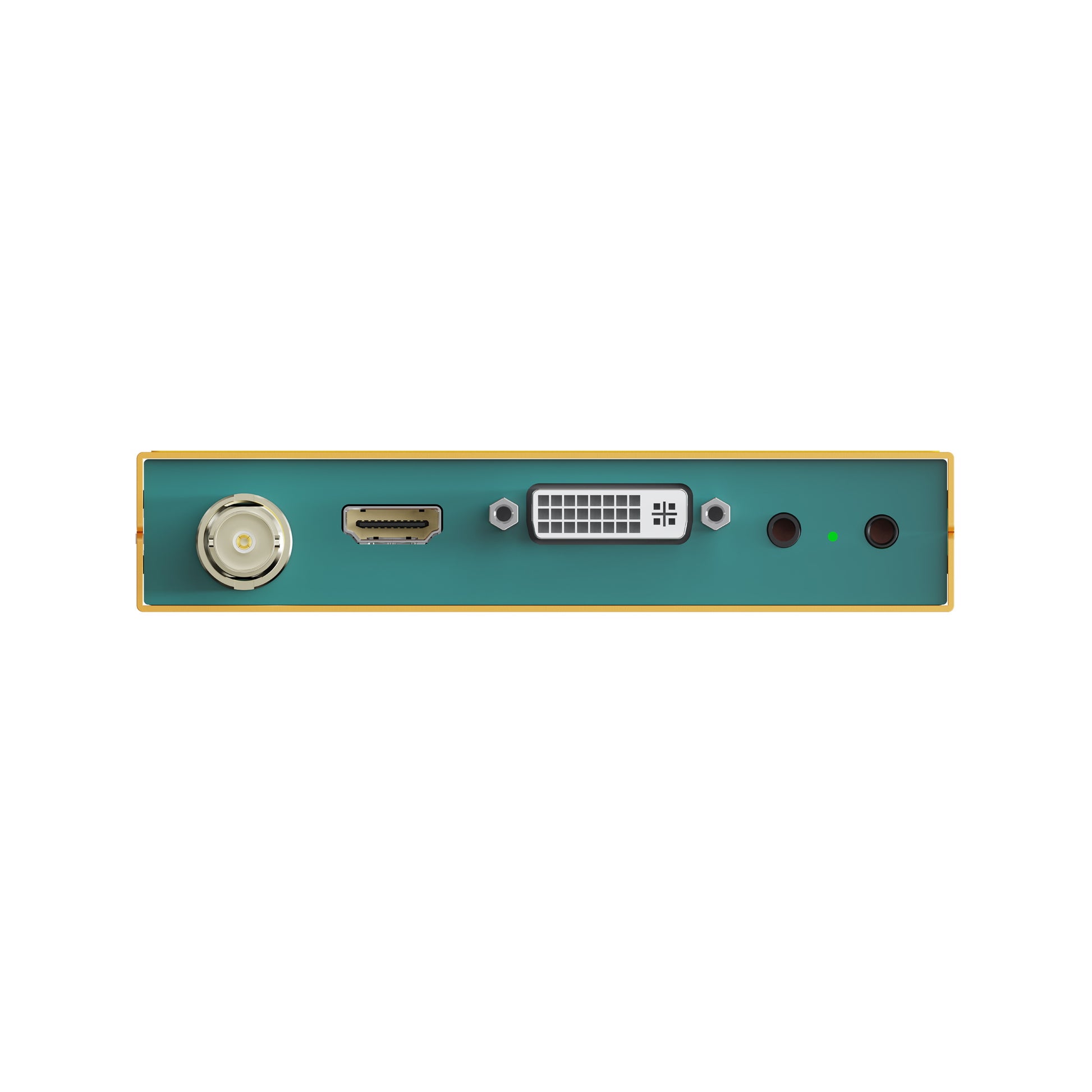

1x 3G-SDI input, 1x HDMI input, 1x DVI-I/VGA input, 1x S-Video/CVBS/YPbPr input
Audio input
1x 3.5 mm analog
Video Standards
3G-SDI
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60
HDMI
1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60
DVI/VGA
1920 x 1080 down to 640 x 400
S-Video/CVBS
710 x 484i, 702 x 576i
YPbPr
1920 x 1080p, 1280 x 720p, 720 x 576p, 720 x 483p, 710 x 484i, 702 x 576i
Video color space
RGB, YUY2, NV12
Capture standard
UVC (USB Video Class), UAC (USB Audio Class)
Audio sampling
48 kHz 16 bit
Power
Power consumption
≤5 W (5V, 1A via USB Type-C)
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Relative humidity
20 to 90% non-condensing
Mechanical
Dimensions
104 x 125.5 x 24.5 mm
Weight
473 g
Support
System
Windows 7/8/10/11, Linux (kernel 2.6.38+), macOS 10.8+
Software
OBS Studio, Skype, Zoom, Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime
APIs
Windows: DirectShow, DirectSound
